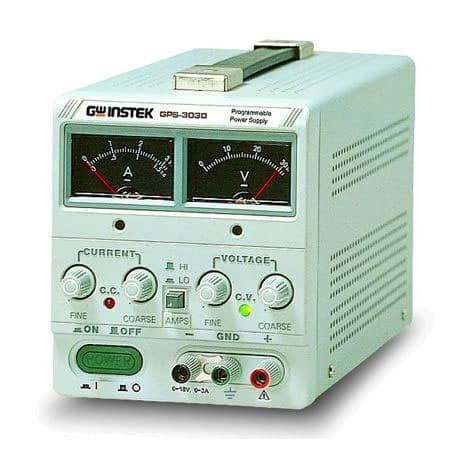

GW Instek GPS-3030 D.C Power Supply (Linear)

Features

  • Light and Compact Design
  • 0.01% High Regulation
  • Constant Voltage and Constant Current Operation
  • Remote Control for External Programmability
  • Internal Select for Continuous or Dynamic Load

specifications GW Instek GPS-3030 D.C Power Supply

The specifications apply when the GPS-Series is powered on for at least 30 minutes under +20°C~+30°C.

DC OUTPUT

Output Volts (V): 0 ~ 30

Output Amps (A): 0 ~ 3

CONSTANT VOLTAGE OPERATION

+ Regulation:

Line regulation: ≦0.01% + 3mV

Load regulation: ≦0.01% + 3mV (rating current≦3A)

Load regulation: ≦0.01% + 5mV (rating current > 3A)

+ Ripple & Noise:

≦0.5mVrms 5Hz ~ 1MHz (rating current≦3A)

≦1mVrms 5Hz ~ 1MHz (rating current > 3A)

+ Recovery Time: ≦100μS ( 50% load change, minimum load 0.5A )

+ Temp. Coefficient: ≦300ppm/°C

+ Output range: 0 to rating voltage continuously adjustable

CONSTANT CURRENT OPERATION

+ Regulation:

Line regulation: ≦0.2% + 3mA

Load regulation: ≦0.2% + 3mA

Ripple Current: ≦3mArms

Output Range: 0 to rating current continuously adjustable (Hi/Lo range switchable)

METER GW Instek GPS-3030

Analog:

V-meter and I-meter

2.5 class

Dimensions 50 x 50 mm

Digital:

31∕2 digital 0.5″ LED display (3030D)

31∕2 digital 0.39″ LED display (3030DD)

Accuracy ±(0.5﹪of rdg + 2 digits)

INSULATION

Chassis and Terminal: 20MΩ or above (DC 500V)

Chassis and AC Cord: 30MΩ or above (DC 500V)

POWER SOURCE

AC 100V/120V/220V/240V±10%, 50/60Hz

ACCESSORIES

User manual x 1

Power cord x 1

Test lead GTL-105 x 1

European test lead GTL-201A (optional)

DIMENSIONS & WEIGHT

128(W) x 145(H) x 285(D)mm

Approx. 5kg

Introduction GW Instek GPS-3030 D.C Power Supply

GW Instek GPS-3030 is single output, 54 to 90W, linear DC power supplies. GW Instek GPS-3030 includes both analog and digital display meters with varying power outputs. GW Instek GPS-3030 features Overload and reverse polarity protection as well as high regulation and low ripple / noise that are maintained at 0.01% and < 1mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.

Features

– Light and Compact Design
– 0.01% High Regulation
– Constant Voltage and Constant Current Operation
– Remote Control for External Programmability
– Internal Select for Continuous or Dynamic Load
– Low Ripple and Noise
– Overload and Reverse Polarity Protection
– Series or Parallel Operation

GW Instek  Brand

Good Will Instrument Co., Ltd (acronym is GW Instek)  is a leading manufacturer of electrical test & measurement instruments in Taiwan. GW Instek is founded in 1975 and began as a manufacturer of power supplies and quickly expanded into the development of high precision electronic test and measurement instruments. After decades of experience in the test and measurement industry, GW Instek has grown to become one of the important manufacturers and developers of test and measurement instruments worldwide.
