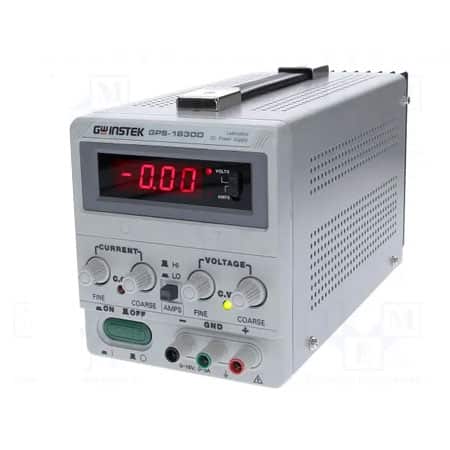

GW Instek GPS-1830D D.C. Power Supply (Linear)

Features

  • Light and Compact Design
  • 0.01% High Regulation
  • Constant Voltage and Constant Current Operation
  • Remote Control for External Programmability
  • Internal Select for Continuous or Dynamic Load

specifications GW Instek GPS-1830D D.C Power Supply Linear

The specifications apply when the GPS-Series is powered on for at least 30 minutes under +20°C~+30°C.

DC OUTPUT

Output Volts (V): 0 ~ 18

Output Amps (A): 0 ~ 3

CONSTANT VOLTAGE OPERATION

+ Regulation:

Line regulation: ≦0.01% + 3mV

Load regulation: ≦0.01% + 3mV (rating current≦3A)

Load regulation: ≦0.01% + 5mV (rating current > 3A)

+ Ripple & Noise:

≦0.5mVrms 5Hz ~ 1MHz (rating current≦3A)

≦1mVrms 5Hz ~ 1MHz (rating current > 3A)

+ Recovery Time: ≦100μS ( 50% load change, minimum load 0.5A )

+ Temp. Coefficient: ≦300ppm/°C

+ Output range: 0 to rating voltage continuously adjustable

CONSTANT CURRENT OPERATION

+ Regulation:

Line regulation: ≦0.2% + 3mA

Load regulation: ≦0.2% + 3mA

Ripple Current: ≦3mArms

Output Range: 0 to rating current continuously adjustable (Hi/Lo range switchable)

METER GW Instek GPS-1830D

Analog:

V-meter and I-meter

2.5 class

Dimensions 50 x 50 mm

Digital:

31∕2 digital 0.5″ LED display (3030D)

31∕2 digital 0.39″ LED display (3030DD)

Accuracy ±(0.5﹪of rdg + 2 digits)

INSULATION

Chassis and Terminal: 20MΩ or above (DC 500V)

Chassis and AC Cord: 30MΩ or above (DC 500V)

POWER SOURCE

AC 100V/120V/220V/240V±10%, 50/60Hz

ACCESSORIES

User manual x 1

Power cord x 1

Test lead GTL-105 x 1

European test lead GTL-201A (optional)

DIMENSIONS & WEIGHT

128(W) x 145(H) x 285(D)mm

Approx. 5kg

Introduction GW Instek GPS-1830D D.C Power Supply

GW Instek GPS-1830D is single output, 54 to 90W, linear DC power supplies. GW Instek GPS-1830D includes both analog and digital display meters with varying power outputs. GW Instek GPS-3030 features Overload and reverse polarity protection as well as high regulation and low ripple / noise that are maintained at 0.01% and < 1mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.

Features

– Light and Compact Design
– 0.01% High Regulation
– Constant Voltage and Constant Current Operation
– Remote Control for External Programmability
– Internal Select for Continuous or Dynamic Load
– Low Ripple and Noise
– Overload and Reverse Polarity Protection
– Series or Parallel Operation
