SPECIFICATIONS EXTECH 461893: DIGITAL PHOTO TACHOMETER
- General Specifications
Meter circuitry: Custom one-chip LSI microprocessor
Time base: Quartz crystal
Display: 5-digit (99999 count) 0.4″ (10mm) multi-function LCD
Measurement: 5 to 99,999 RPM in 2 ranges
Range select: Automatic
Data Recording: LAST / MIN / MAX readings stored for later recall
Sampling time Extech 461893: 1 second (over 60 rpm)
Target distance: 2 to 6″ (50 to 150mm) depending on ambient light
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Power Supply: 4 x 1.5V ‘AA’ batteries
Power Consumption: Approximately 150 mA
Weight: 8.8 oz. (250 g) including battery
Size: 6.7 x 2.8 x1.5″ (170 x 72 x 37mm)
Accessories: Reflective tape (23″) and carrying case
Time base: Quartz crystal
Display: 5-digit (99999 count) 0.4″ (10mm) multi-function LCD
Measurement: 5 to 99,999 RPM in 2 ranges
Range select: Automatic
Data Recording: LAST / MIN / MAX readings stored for later recall
Sampling time Extech 461893: 1 second (over 60 rpm)
Target distance: 2 to 6″ (50 to 150mm) depending on ambient light
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Power Supply: 4 x 1.5V ‘AA’ batteries
Power Consumption: Approximately 150 mA
Weight: 8.8 oz. (250 g) including battery
Size: 6.7 x 2.8 x1.5″ (170 x 72 x 37mm)
Accessories: Reflective tape (23″) and carrying case
- Range Specifications Extech 461893
— Measurement RPM
Range: 5 to 999.9 RPM; 1,000 to 99,999 RPM
Resolution: 0.1 RPM; 1 RPM
Accuracy: +(0.05% + 1 digit); +(0.05% + 1 digit)

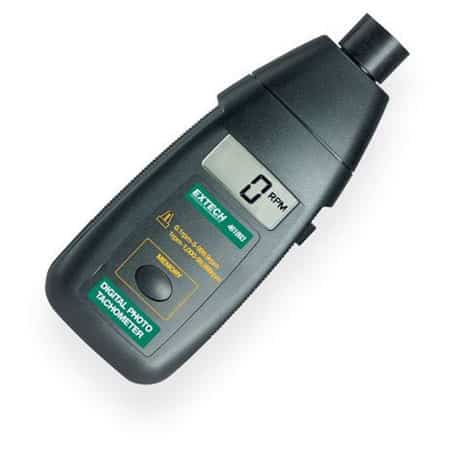

Introduction Extech 461893
Non-contact rpm measurements to 99,999rpm with integral light beam
With the 461893, you can make non-contact RPM measurements (5 to 99,999 RPM) of rotating objects by pointing the integral light beam (6 in. target distance) at reflective tape placed on the object to be measured. The memory button holds last reading and recalls min/max readings display. Comes with 4 AA batteries, 23 in. (0.6 m) reflective tape, carrying case, and user manual.
Features
– Large 5 digit LCD display is easy to read
– Built-in memory recalls last MAX/MIN value stored
– Extech 461893 Autoranging with 0.05% accuracy
– Non-contact measurements from 5 to 99,999rpm
– Use reflective marker on object to be measured and point the integral light beam or accurate readings updated every second
– 2 to 6 inches (50 to 150mm) measurement distance (depending on ambient light)
– Complete with 23″ reflective tape, four AA batteries and case
– Built-in memory recalls last MAX/MIN value stored
– Extech 461893 Autoranging with 0.05% accuracy
– Non-contact measurements from 5 to 99,999rpm
– Use reflective marker on object to be measured and point the integral light beam or accurate readings updated every second
– 2 to 6 inches (50 to 150mm) measurement distance (depending on ambient light)
– Complete with 23″ reflective tape, four AA batteries and case
