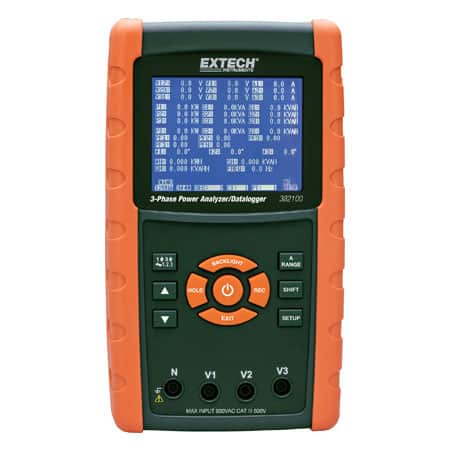

EXTECH 382100 1200A 3-PHASE POWER ANALYZER/DATALOGGER

Key Features

  • Single phase, 3-phase/3-wire or 3-phase/4-wire systems
  • Large backlighting LCD displays 35 parameters simultaneously (MW, kVAR, MVA, PF plus the voltage and current of the 3 phases)
  • Displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor
  • Current measurements to 1200A and Voltage measurements to 600V
  • Automatically logs up to 30,000 sets of measurements with 2GB SD memory card

SPECIFICATIONS EXTECH 382100 1200A 3-PHASE POWER ANALYZER/DATALOGGER

ACV (True rms)

Range: 600.0V

Basic Accuracy: ±(0.5%rdg+0.5V)

ACA

Range: 1200A

Basic Accuracy: ±(0.5%rdg+0.5A)

Active Power (MW)

Range: 9.999MW

Basic Accuracy: ±(1.0%rdg+0.08KW)

Apparent Power (MVA)

Range: 9.999MVA

Basic Accuracy: ±(1.0%rdg+0.08KVA)

Reactive Power (MVAR)

Range: 9.999MVAR

Basic Accuracy: ±(1.0%rdg+0.08KVAR)

Power Factor

Range: 0.00 to 1.00

Basic Accuracy: ±0.04

Frequency Range

Range: 45Hz to 65Hz

Basic Accuracy: ±0.1Hz

Phase

Range: -180° to +180.0°

Basic Accuracy: ±1°

Active Power Energy (MWh)

Range: 0.0kWh to 9.999MWHr

Basic Accuracy: ±(2.0%rdg+0.08KWh)

Apparent Power Energy (MVAh)

Range: 0.0KVAh to 9.999MVAh

Basic Accuracy: ±(2.0%rdg+0.08KVAh)

Reactive Power Energy (MVARh)

Range: 0.0kVARh to 9.999MVARh

Basic Accuracy: ±(2.0%rdg+0.08KVARh)

Datalogging: 60,000 readings (2GB SD memory Card)

CE/CAT rating: CE/CAT III-600V

Dimensions: 8.9 x 2.5 x 1.3″ (225 x 125 x 64mm)

Weight: Meter: 2.3lbs (1049g); Clamp: 1.2lbs (522g)

Introduction Extech 382100

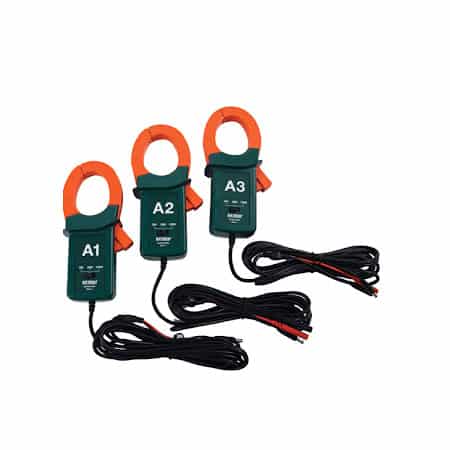

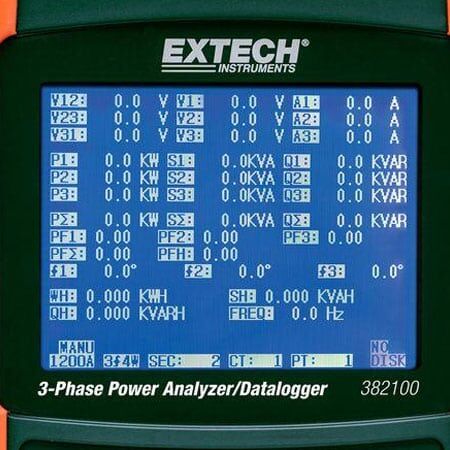

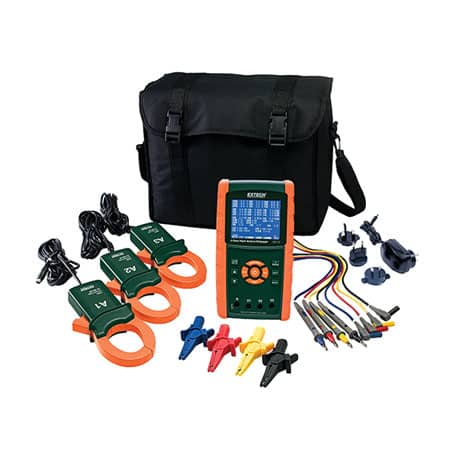

The 382100 is a 3-Phase Power Analyzer/Datalogger that saves data (up to 30,000 sets of measurements) on an SD card in Excel format for easy transfer to your PC. It provides a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground) – A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. Readings are displayed on a large, dot matrix, sun-readable, backlit LCD. Comes with three current clamps, four voltage leads with alligator clips, eight AA batteries, SD memory card, Universal AC adapter (100 to 240V), case, and user manual.

Thiết bị đo phân tích công suất Extech PQ3450 (8)

Features Extech 382100

– Single phase, 3-phase/3-wire or 3-phase/4-wire systems (Extech 382100)
– Large backlighting LCD displays 35 parameters simultaneously (MW, kVAR, MVA, PF plus the voltage and current of the 3 phases)
– Displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor
– Current measurements to 1200A and Voltage measurements to 600V
– MWH, MVAh, MVARh energy measurements
– Adjustable CT ratio (1 to 600) and PT ratio (1 to 1000)
– Automatically logs up to 30,000 sets of measurements with 2GB SD memory card
– User-programmable sampling time from 2 to 7200 seconds
