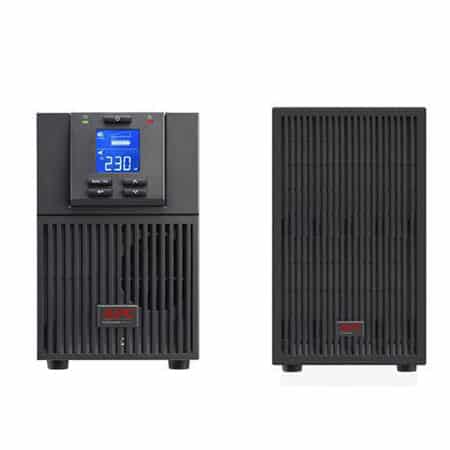

APC EASY UPS SRV3KIL (On-Line, 3kVA/2400W, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended runtime)

SPECIFICATIONS APC EASY UPS SRV3KIL

+ Overview

Presentation: High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Lead time: Usually in Stock

+ Main

Main Input Voltage: 230 V

Other Input Voltage:

220 V
240 V

Main Output Voltage: 230 V

Other Output Voltage:

220 V
240 V

Rated power in W: 2400 W

Rated power in VA : 3000 VA

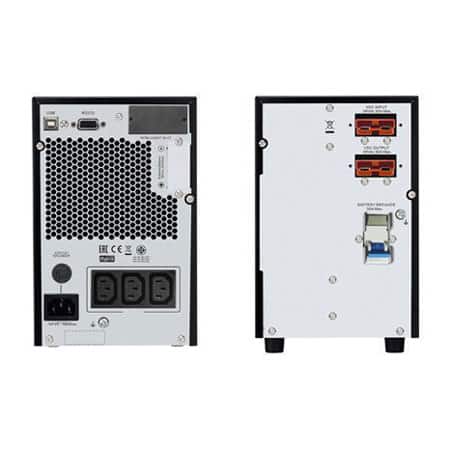

Input Connection Type: IEC 60320 C20

Output connection type:

6 IEC 60320 C13
1 IEC 60320 C19

Cable length: 1.52 m

Number of cables: 1

Provided equipment:

1 IEC 60320 C19 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
1 external battery pack
1 battery cable
user manual

+ Batteries & Runtime

Battery type: Lead-acid battery

Battery voltage: 72 V

Number of battery filled slots: 0

Number of battery free slots: 0

Battery recharge time: 5.5 h

Battery life: 3…5 year(s)

Battery charger power: 350 W rated

Battery option:

SRV72BP-9A 1 1878 VAh
SRV72BP-9A 2 2817 VAh

SRV72BP-9A 3 3756 VAh
SRV72BP-9A 4 4695 VAh

+ General

Number of power module filled slots: 0

Number of power module free slots: 0

Redundant: No

+ Physical

Colour: Black (RAL 7010)

Height: 33.6 cm

Width: 42.5 cm

Depth: 42.5 cm

Net weight: 45.9 kg

Mounting location: Front

Mounting preference: No preference

Mounting mode: Not rack-mountable

USB compatible: Yes

Mounting position: Vertical

+ Input

Input voltage limits:

110…285 V half load
160…280 V full load

Network frequency: 40…70 Hz auto sensing

+ Output

Maximum configurable power in VA: 3000 VA

Maximum configurable power in W: 2400 W

Output frequency: 50/60 Hz +/- 3 Hz sync to mains

Harmonic distortion: 3 %

Transfer time: 4 ms typical

UPS type: Double conversion online

Wave type: Sine wave

Efficiency: 88 % (full load)

Additional information: Configurable for 220 : 230 or 240 nominal output voltage

Bypass type: Internal bypass (automatic and manual)

Crest factor: 3 : 1

+ Conformance

Product certifications:

CE
UKCA
EAC
TISI

Standards:

EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

+ Environmental

Ambient air temperature for operation: 0…40 °C

Relative humidity: 0…95 % non-condensing

Operating altitude: 0…3000 m

Ambient air temperature for storage: -20…50 °C

Storage Relative Humidity: 0…95 % non-condensing

Storage altitude: 0…15000 m

Acoustic level: 50 dBA

Heat dissipation: 910 Btu/h

IP degree of protection: IP20

+ Communications & Management

Alarm:  Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Free slots: 1

Control panel: Multifunction LCD status and control console

+ Surge Protection and Filtering

Surge energy rate: 600 J

+ Packing Units

Unit Type of Package 1: PCE

Number of Units in Package 1: 2

Package 1 Height: 46.5 cm

Package 1 Width: 56.5 cm

Package 1 Length: 56.5 cm

Package 1 Weight: 49.8 kg

+ Offer Sustainability

REACh Regulation: REACh Declaration

EU RoHS Directive:

Compliant
EU RoHS Declaration

Mercury free:  Yes

China RoHS Regulation:

China RoHS declaration

Pro-active China RoHS declaration (out of China RoHS legal scope)

RoHS exemption information:  Yes

Introduction APC EASY UPS SRV3KIL

The APC Easy UPS SRV3KIL On-Line is a high-performance uninterruptible power supply (UPS) system designed to deliver continuous and reliable power protection for critical equipment. With a power capacity of 3 kilovolt-amperes (kVA) and a power output of 2400 watts, this UPS is capable of supporting medium-sized businesses, data centers, or other applications that require robust power backup solutions.

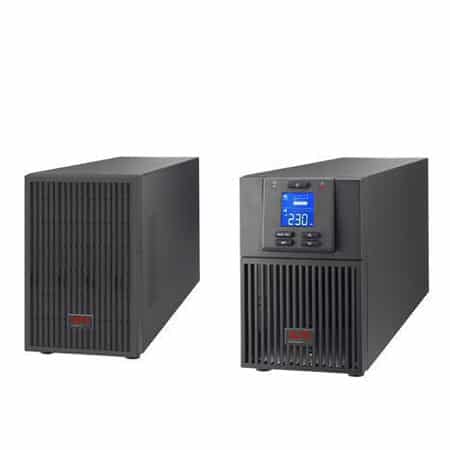

The Easy UPS On-Line is designed in a tower form factor, making it suitable for various installation environments. It offers multiple outlets, including 6 IEC C13 outlets and 1 IEC C19 outlet, allowing you to connect a wide range of devices and equipment to the UPS for power backup.

One of the key features of the Easy UPS On-Line is its intelligent card slot, which enables you to install an optional network management card. This card provides enhanced monitoring and management capabilities, allowing you to remotely monitor the UPS status, receive notifications, and perform configuration changes through a web browser or a network management system.

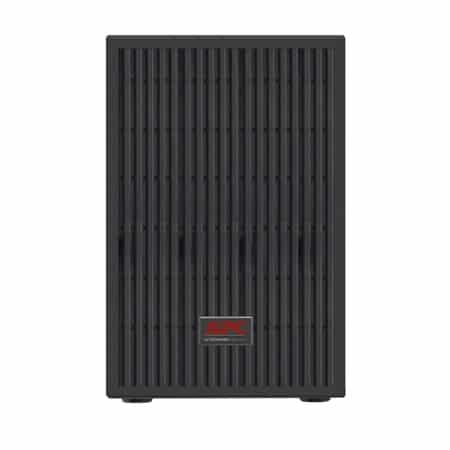

APC Easy UPS SRV3KIL comes with an external battery that is a special feature of this product.

Features APC Easy UPS SRV3KIL

High Efficiency of APC Easy UPS SRV3KIL

• Up to 94% efficiency in on-line mode and 91% in battery mode – 6000/10,000 VA

• Up to 88% – 90% efficiency in on-line mode and 93% – 94% in ECO mode – 1000/2000/3000 VA

ECO Mode/Green Mode

• An energy saving mode where the input voltage regulation range can be set/modified through the LCD

High Power Factor of APC Easy UPS SRV3KIL

• More real output power in watts: 0.8 PF for 1000/2000/ 3000 VA, and unity PF for 5000 to 20,000 VA

True Double-conversion

• Provides tight voltage, frequency regulation, and zero transfer time for reactive loads (machinery, lab equipment, etc.)

Emergency Power Off (EPO)

• Immediately remove power to all connected equipment in the event of emergency (applicable to standard and extended runtime 6000/10,000 VA models)

Wide Input Voltage Range of APC Easy UPS SRV3KIL

• 60% Load: 110 – 300 Vac

• Allow for unstable power environment

Simplified Monitoring and Management

• USB and serial ports for UPS management with PowerChute™ Serial Shutdown software*

• Optional Network Management Card supports networkbased monitoring

Intelligent Battery Management

• Maximises battery performance, life, and reliability through intelligent precision temperature compensated charging

Over Voltage Cut-off Device (OVCD)

• Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend the lifespan of the UPS

LCD/LED Display

• Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally

Safety Agency Approved

• Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment

Built-in Automatic Bypass

• Supplies utility power to the connected loads in the event of a UPS power overload or fault
