Bộ Kiểm Cần Siết Lực CDI Digital – 1001-O-DTT

thông số kỹ thuật Bộ kiểm cần siết lực CDI Digital – 1001-O-DTT

Mô tả Bộ Kiểm Cần Siết Lực CDI 1001-O-DTT

The CDI 1001-O-DTT Digital Torque Tester has a 1/4 Inch Drive and can test in an English range of 10-100 In Oz and Metric ranges between 7.06 – 70.6 cNm and .720 – 7.2 cmkg.  The DTT Utilizing the testing protocol and standards developed by the American Society of Mechanical Engineers (ASME)

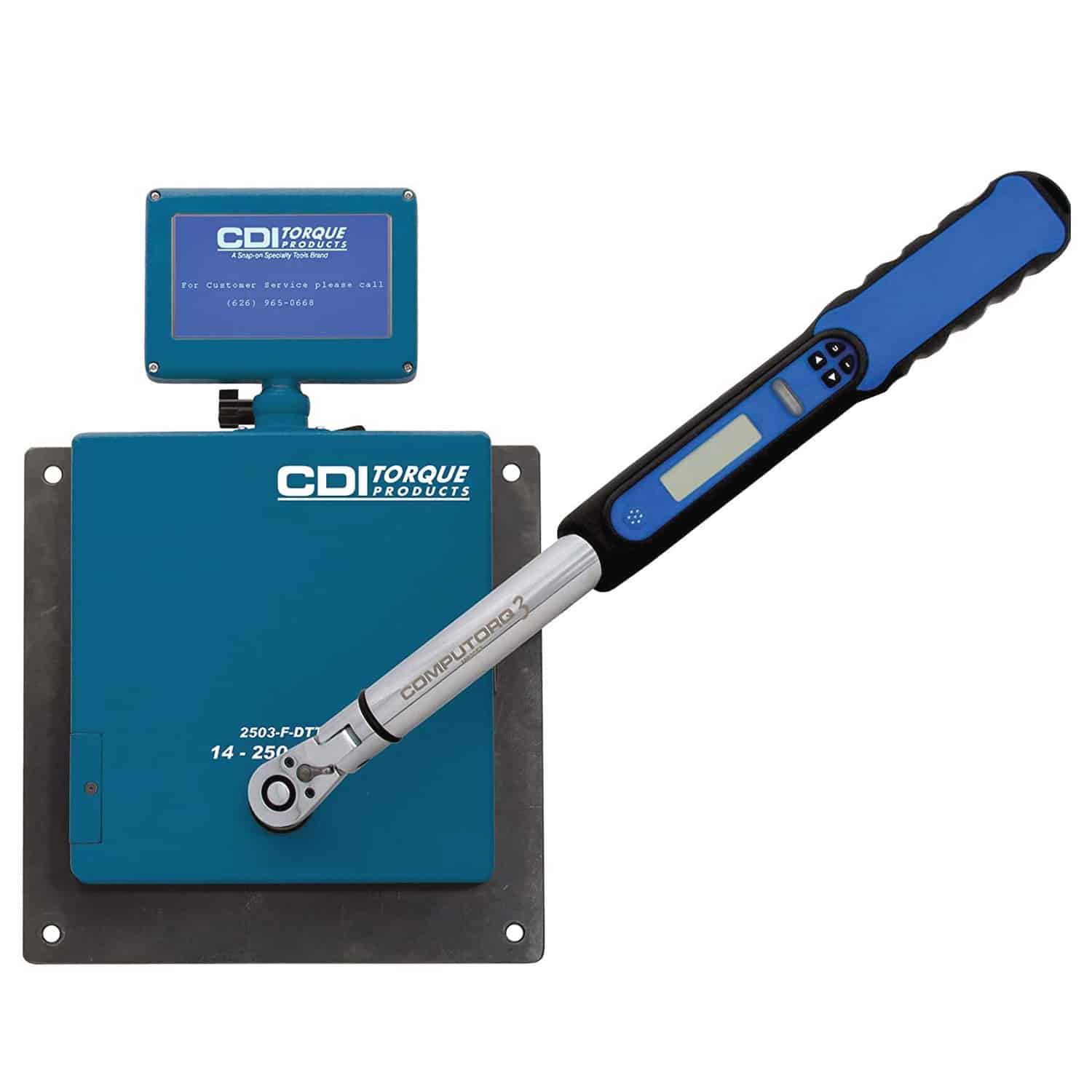

The Digital Torque Tester (DTT) is designed to be an affordable torque tester that can be mounted on a wall or used in a bench-top vise to allow the operator to conveniently test torque wrenches and torque screwdrivers. It features an easy-to-use touch pad screen to capture peak torque values during a test in real-time, and download stored torque data to a PC. All DTT torque testers are sold in a kit with the tester, carrying case, and AC/DC power supply.

Chức năng

– Integral Transducer and sturdy housing allow mounting in virtually any position
– Integral Transducer: Full bridge strain gage, 350 ohms, 1500uE, 3mV/V F.S, 3.75 excitations.
– Units of Torque: Nm, kgcm, ft.lb., in.lb., kgm
– Audible (tone)
– Torque Accuracy: ±0.5% CW and CCW from 5.6 to 100% of full scale at 25° C

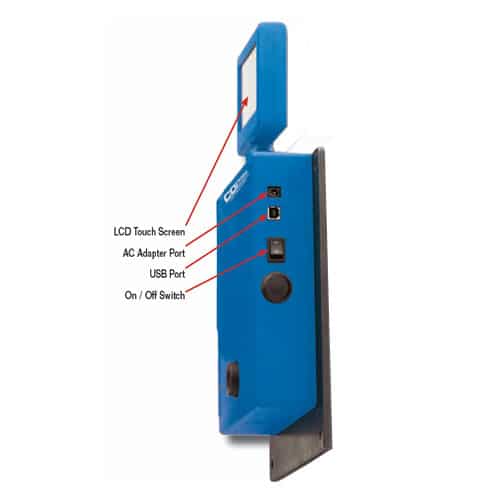

– LCD Touch Screen: 4.7 in. color graphics display
– Screen resolution: 480 X 272 pixels
– 110 Volt AC/DC power supply included
– Display Accuracy: 4 digits, 9999 cycle counts
– Memory Capacity – 500 Records (Complete Check Mode Only.)
– Data can be offloaded by USB drive or cable
– Six “AA” Alkaline cells for battery power included
– Track, Peak, and First Peak modes of operation
– Operating Temperature: 40 to 110° F (5 to 42° C)
– Storage Temperature: 0 to 122° F (-20 to 50° C)
– Humidity up to 85% non-condensing
– ISO-6789-2003 and ASME B107-28-2005 standards compliant
– Certificate of N.I.S.T. traceability from 5.6 to 100% of the full scale
– Includes storage case, AC adapter, and USB cable
– Dimensions: W – 10” x H – 16” x D – 2.5” Weight: (Tester Only) – 10.7 lbs., (with Carrying Case) – 17.4 lbs.
