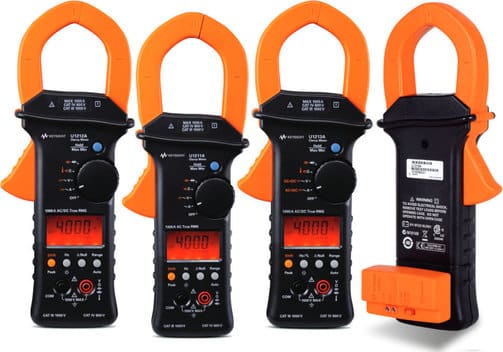

Thông số kỹ thuật Ampe Kìm – Keysight U1213A
General technical data |
|
Dimension | 106 mm (W) X 260 mm (L) X 43 mm (H) |
Net Weight | 525 grams with batteries included |
Display | 4 digits with a maximum reading of 4,100 counts. The 12 Segments analog bar graph and full annunciator. Automatic polarity indication. |
Battery | Standard 9 V Battery – Alkaline |
Low battery indicator | Battery voltage drops below 6.0 V |
Power consumption | 220 mVA maximum |
Battery life | 60 hours (typical) |
Connectivity | Wireless Bluetooth compatible |
Maximum jaw opening | ~2 inches |
Temperature coefficient | 0.12 x (specified accuracy)/°C (from 0 to 18 °C or 28 to 50 °C) |
Operating temperature | –10 to 50 °C, 0 to 80 % R.H. |
Storage temperature | –20 to 60 °C, 0 to 80 % R.H. |
Relative Humidity (R.H.) | Maximum 80 % R.H. for temperature up to 31 °C decreasing linearly to 50 % R.H. at 50 °C |
Measurement category | CAT III 1000 V/ CAT IV 600 V |
