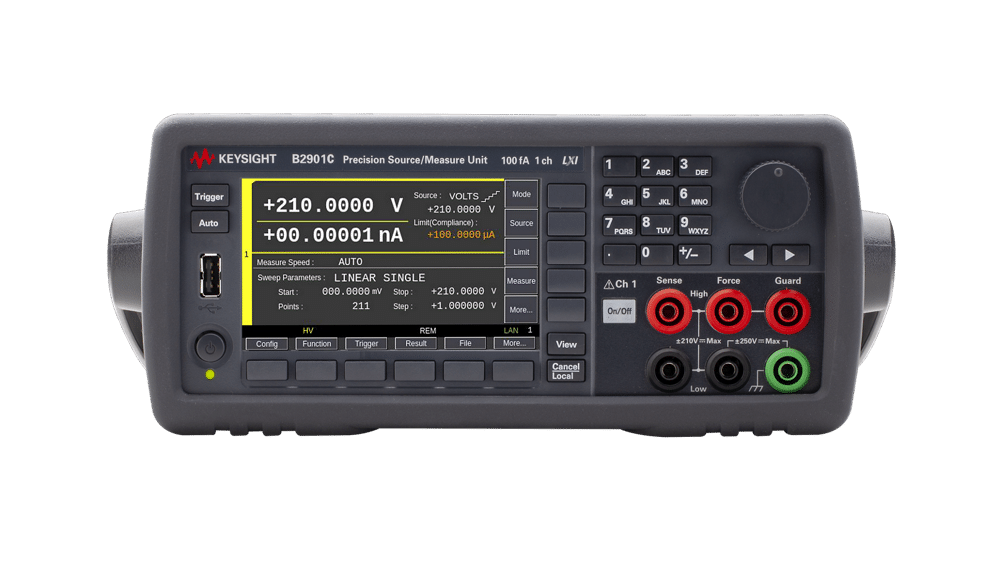

Source Measure Unit – KEYSIGHT B2901B

More features

Measurement capabilities with an integrated 4-quadrant source
Color 4.3-inch display supports both graphical and numerical view modes
Application software facilitates PC-based instrument control included at no charge
High throughput and SCPI command support conventional SMU’s command set

Description

SPECIFICATIONS SOURCE MEASURE UNIT – KEYSIGHT B2901B

General technical data
Number of channels	1 or 2
Output range	21V or 210V maximum voltage options 1.5A or 3.03A maximum current (DC) 10.5A maximum current (pulse), on select models
Source resolution	5.5 digit or 6.5 digit options 1µV or 100nV minimum voltage options 1pA, 10pA, 10fA, or 100fA minimum current options 1µA, 10nA, or 100nA lowest current range options
Measurement resolution	6.5 digits 100nV minimum voltage 1pA, 10fA, or 100fA minimum current options 10µs, 20µs, 50µs, and 200µs minimum trigger interval options
Calibration period	1 year
Measurement speed	1 PLC (power line cycle)
Environmental storage temperature	-30°C to +70°C storage, 10% to 90% relative humidity
Environmental operating temperature	0°C to +55°C operating, 30% to 80% relative humidity
Power supply	90 V to 264 V, 47 Hz to 63 Hz, 250 VA maximum
Overvoltage category	II
Pollution degree	2
Certifications	CE, cCSAus, RCM, KC
Warm-up	1 hour
View mode	Single view, Dual view, Graph view and Roll view
Dimensions	Case: 88 mm (2U) x 213 mm (half width) x 450 mm Working: 180 mm x 260 mm x 480 mm (with handle and feet)
Weight	Net: 6.0 kg Shipping: 9.5 kg

Keysight B2901B: High-Performance SMU for Electronic Measurements

The Keysight – B2901B Source Measure Unit (SMU) is a versatile and high-precision instrument designed for a wide range of electrical testing and characterization tasks. With its ability to source and measure both voltage and current simultaneously, it provides exceptional accuracy and flexibility for applications such as semiconductor testing, device characterization, and research in materials science.

The Keysight – B2901B also stands out for its user-friendly interface and seamless integration into automated test systems. It features an intuitive touchscreen display for manual operation and can be remotely controlled via SCPI commands for automated testing. With LAN, USB, and GPIB connectivity options, the B2901B is well-suited for high-throughput environments where efficiency and automation are key. Whether used independently or in a test system, the B2901B delivers the precision and flexibility needed for advanced electrical measurements in research, development, and production settings.
