SPECIFICATIONS RF ANALOG SIGNAL GENERATOR – KEYSIGHT N5171B
General technical data |
|
| Frequency range | Option 501: 9 kHz to 1 GHz
Option 503: 9 kHz to 3 GHz Option 506: 9 kHz to 6 GHz |
| Output power | Standard: +19 dBm to – 144 dBm
Option 1EA: +30 dBm to – 144 dBm |
| Frequency switching speed | CW mode (SCPI): ≤ 5 ms (standard), ≤ 1.15 ms (Option UNZ)
List sweep mode: ≤ 5 ms (standard), ≤ 900 µs (Option UNZ) |
| Phase noise | At 20 kHz offset: – 133 dBc/Hz at 250 MHz (typical) |
| Amplitude specifications | Resolution: 0.01 dB
Step attenuator: 0 to 130 dB in 5 dB steps Harmonics: < 4 dBm for standard output |
| Modulation capabilities | Modulation types: AM, FM, PM, and pulse modulation
AM depth: 0% to 100% FM deviation: Up to 20 MHz |
| Control interfaces | USB 2.0, GPIB, LAN (LXI Class C compliant) |
| Remote programming | SCPI and compatibility with other Keysight signal generators |
| Operating temperature | 0 to 55 °C |
| Storage temperature | – 40 to 70 °C |
| Humidity | Up to 95% RH at 40 °C |
| Dimensions | 88 mm H x 426 mm W x 489 mm D |
| Weight | ≤ 13.6 kg |

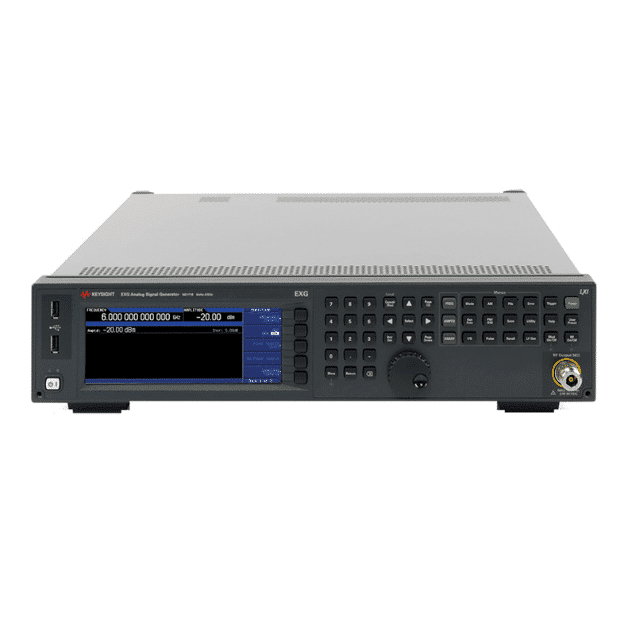

Keysight N5171B: High-Performance RF Signal Generator
The Keysight N5171B EXG X-Series RF Analog Signal Generator is a powerful, cost-effective tool designed to meet the demands of manufacturing test environments and RF component testing. With robust performance, precise signal generation, and a range of modulation capabilities, it offers the flexibility needed for parametric testing and functional verification.
The Keysight N5171B combines affordability, high performance, and advanced features, making it an indispensable tool for engineers working on RF component testing, functional verification, and production testing. It is a reliable solution for those needing a versatile, robust signal generator tailored to modern RF testing requirements.
