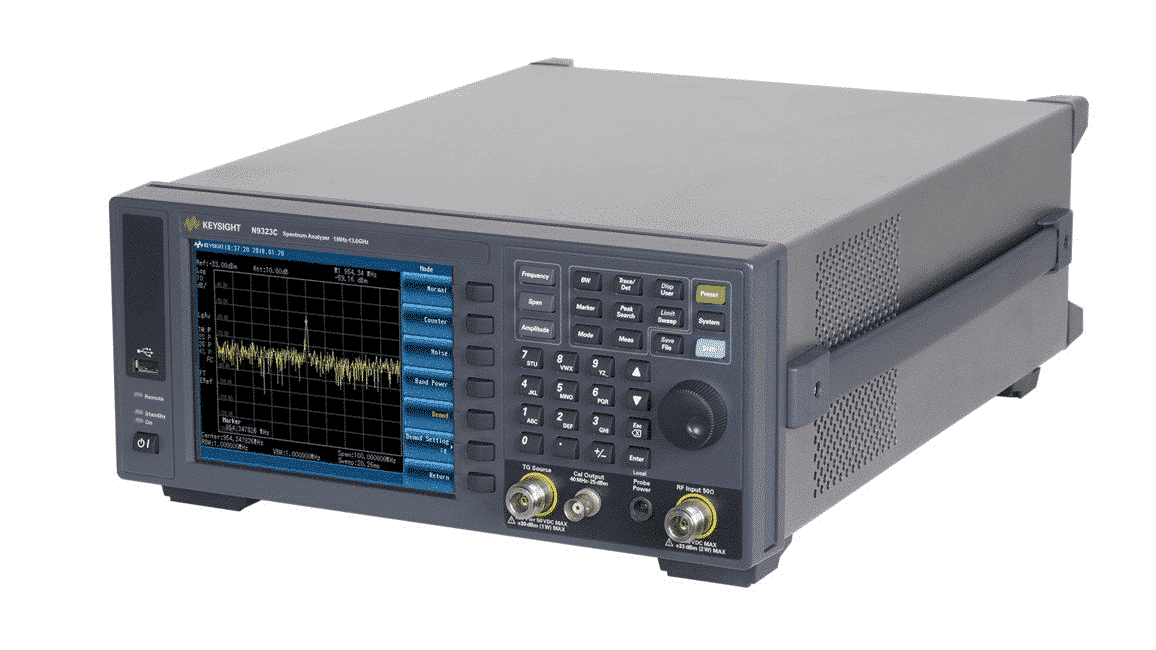

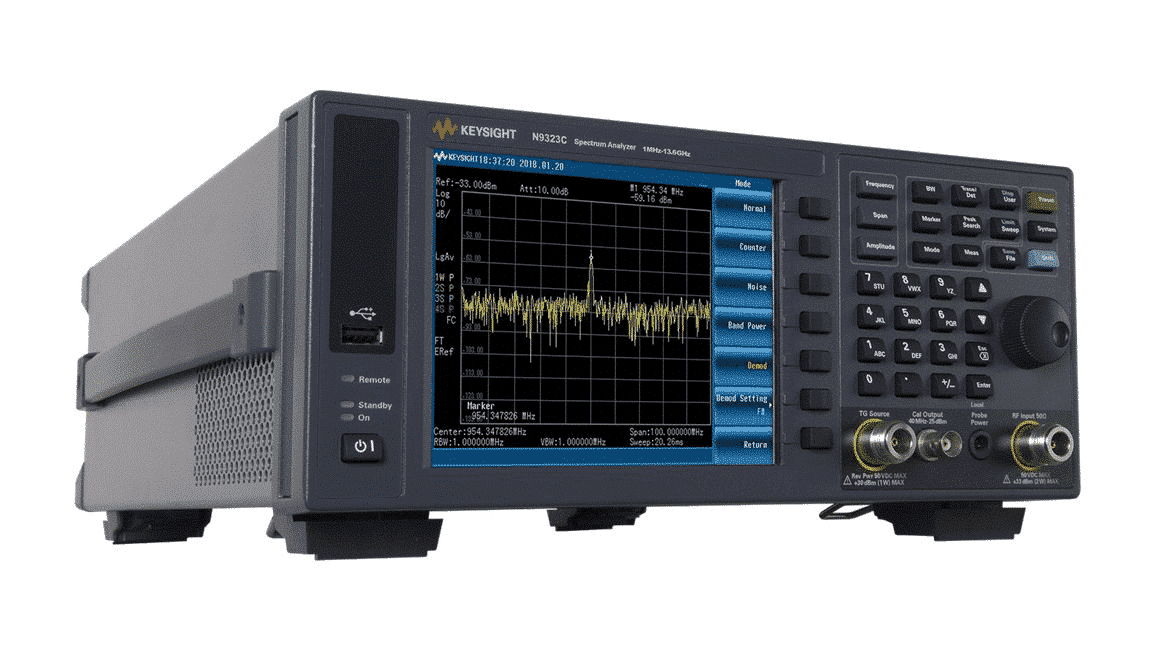

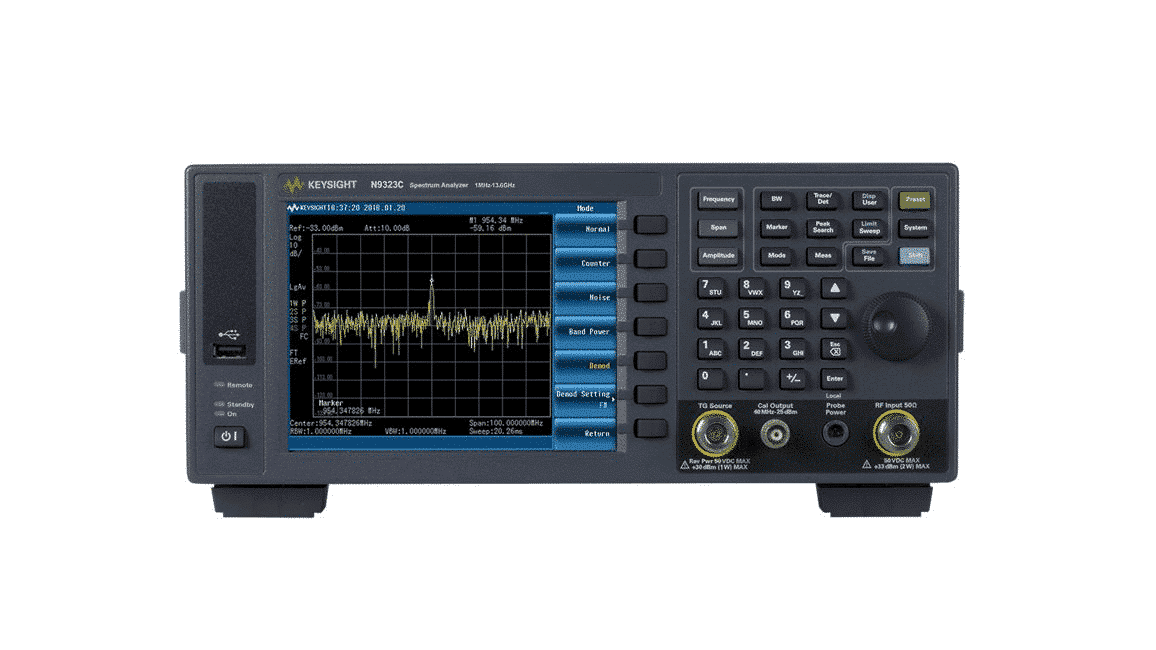

Keysight N9323C Basic Spectrum Analyzer (BSA)

Keysight N9323C Basic Spectrum Analyzer (BSA) – 1 MHz to 13.6 GHz

Overview

The Keysight N9323C Basic Spectrum Analyzer delivers reliable RF performance up to 13.6 GHz in a cost-effective and compact design. Built for efficiency, usability, and flexibility, it helps engineers achieve faster measurements and adapt to evolving test requirements.

Applications & Product Line

• General RF spectrum analysis in wireless, aerospace, and IoT applications

• Signal monitoring and interference identification in complex environments

• RF transmitter characterization for AM/FM, ASK, and FSK signals

• Education, R&D, and production line testing

• Suitable for both laboratory and field environments

Technical Specifications

• Frequency Range: 1 MHz to 13.6 GHz

• Performance: High-speed spectrum analysis with accurate results

• Tracking Generator: Built-in, supports stimulus-response measurements

• Modulation Analysis: AM/FM, ASK, FSK demodulation suites

• Spectrum Monitoring: Identifies interfering or unwanted transmissions

• Measurement Features:

  • Up to 20 predefined measurements

  • Task Planner reduces setup time by up to 95%

  • Marker demodulation and one-button optimization

Integrated Features

• Easy-to-use interface with customizable soft keys

• Task automation for consistent results

• Spectrum monitoring for interference detection

• Compact, durable design suitable for portable or bench use

Hardware & Interfaces

• Built-in tracking generator

• Bright, high-resolution display

• Front panel with intuitive controls and soft keys

• Connectivity for data transfer and remote control

Physical & Power Specs

• Form Factor: Portable spectrum analyzer for lab and field

• Power: AC mains operation

• Durability: Ruggedized design for extended use
