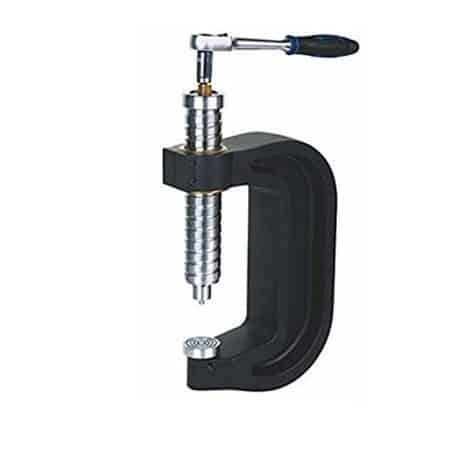

INSIZE ISHB-P101: PIN BRINELL HARDNESS TESTER

SPECIFICATION PIN BRINELL HARDNESS TESTER:

Measuring range:

– 100~350HBW (with Ø7.26mm indenter, included)

– 350~650HBW (with Ø4mm indenter, optional)

Test force: 1580kg

Accuracy :

– static test: ±3%

– impact test: ±5%

Measuring microscope: 20X, graduation 0.01mm

Max. workpiece height in static test: 150mm

Max. workpiece depth in static test: 80mm (from the center of indenter)

Dimension: 195×60×350mm

Weight : 4.2kg

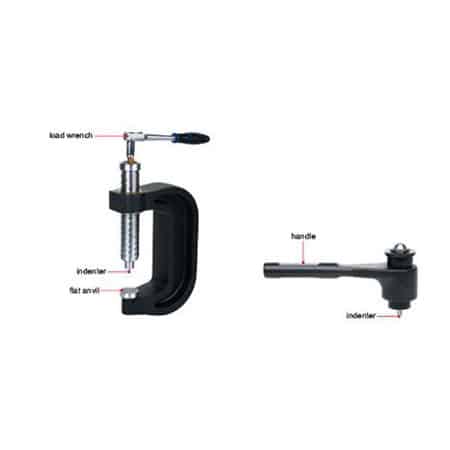

STANDARD DELIVERY: Static test clamp, Impact test clamp, Flat anvil, V-type anvil, Ø7.26mm indenter, Hardness test block, Pin,  Measuring microscope
