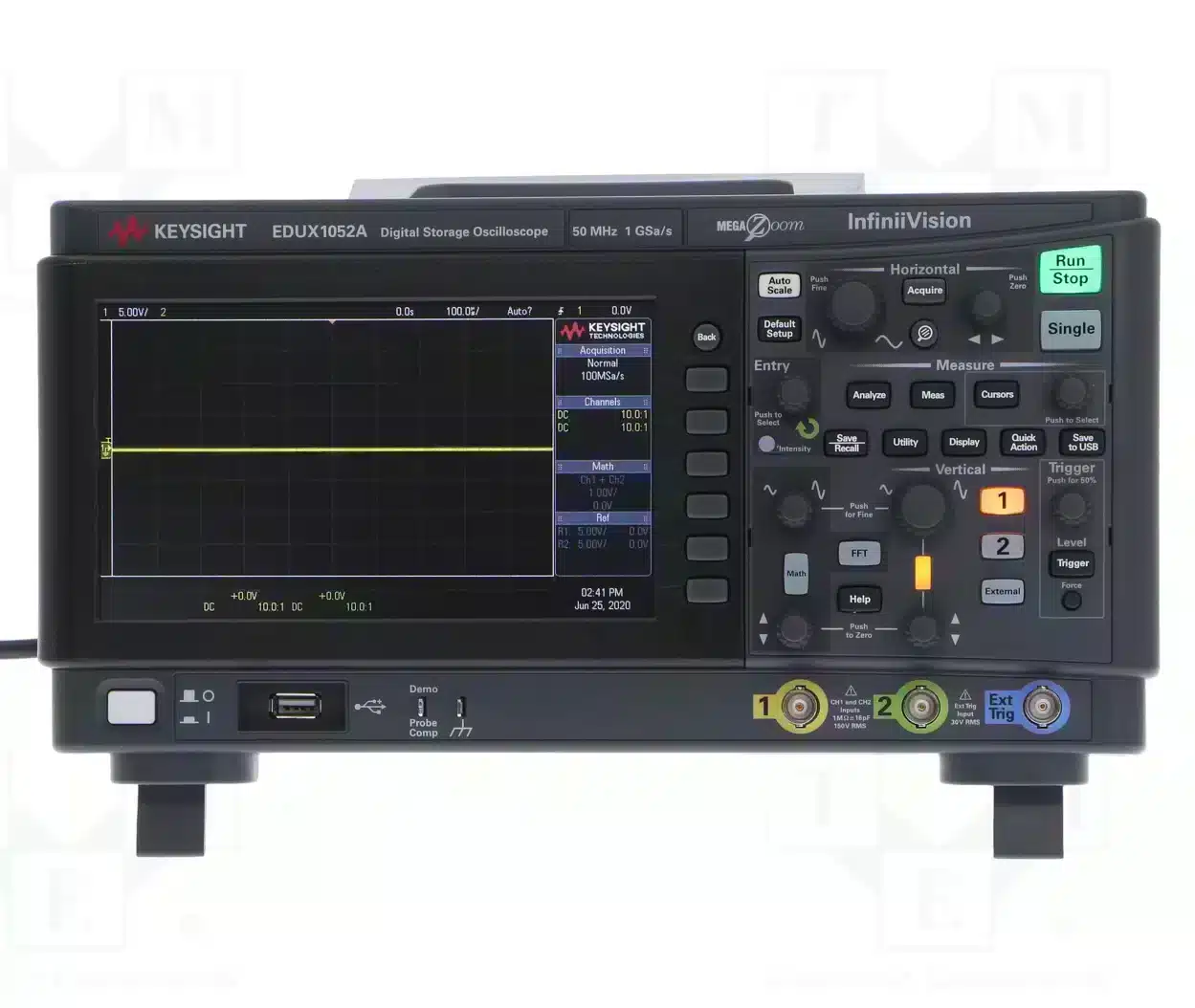

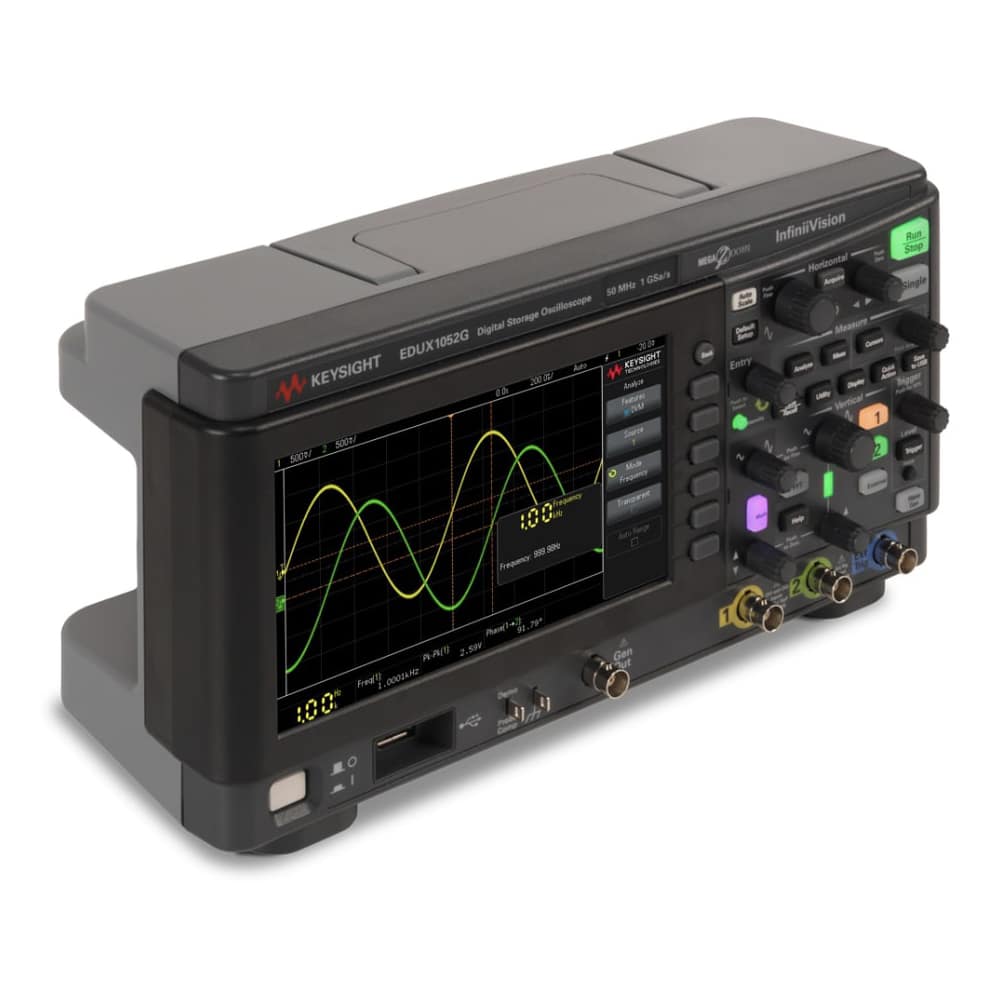

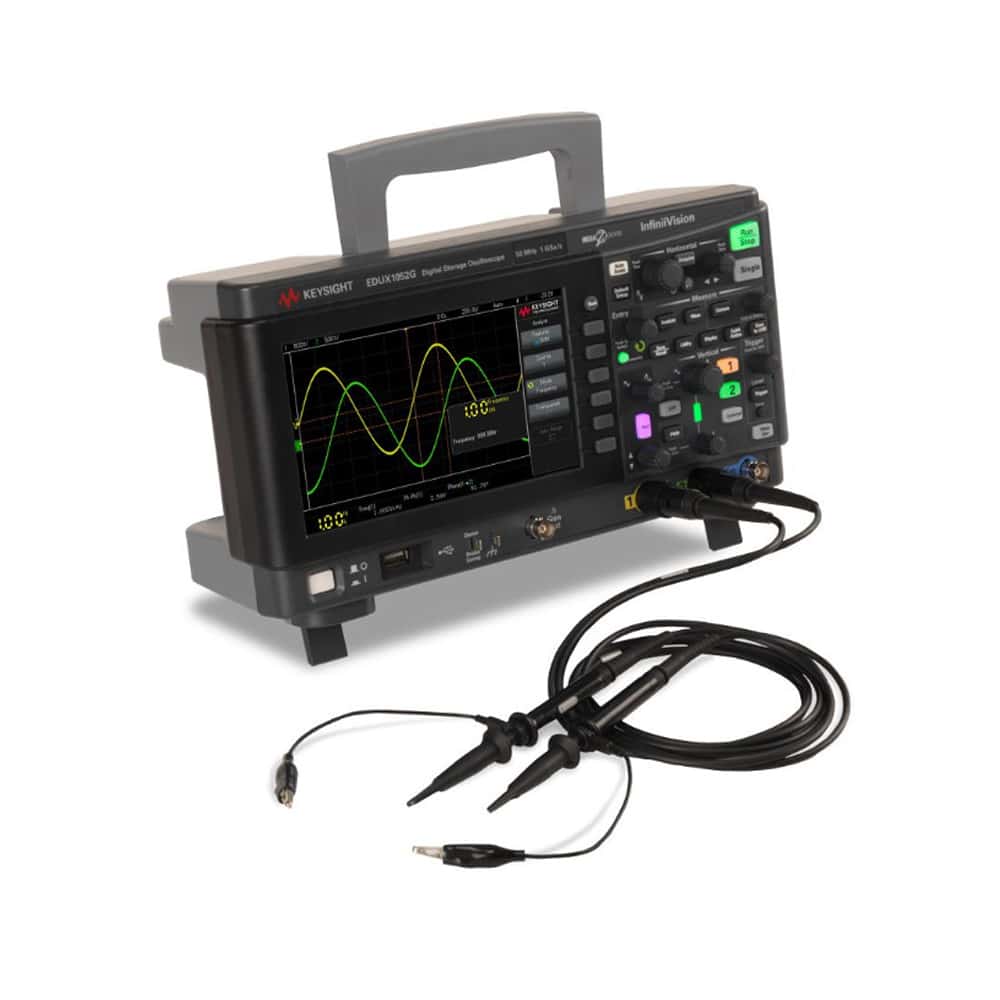

SPECIFICATIONS EDUX1052G Keysight Oscilloscope
General technical data: |
|
| Bandwidth: | 50 MHz |
| Analog channel: | 2 + 1 (ext. trigger viewable as digital channel) |
| External trigger (or 3rd digital channel): | 1 |
| Maximum sample rate: | 1 GSa/s (Giga-samples per second) |
| Vertical resolution: | 8-bit |
| Maximum memory depth: | 200,000 points (all channels) |
| Display size and type: | 7-inch TFT LCD WVGA |
| Connectivity: | USB 2.0 (host và device), LAN (10/100BASE-T) |
| Waveform update rate: | 100,000 waveforms per second |
| Serial protocol analysis: | Standard: I²C, UART/RS-232 |
| Integrated digital voltmeter: | Standard |
| Frequency counter: | Standard |
| Built-in training signals: | Standard |
| Waveform math: | Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter |
| Automatic measurements: | 14 amplitude, 14 timing, and 4 pulse count measurements |
| Wavegen: | 20-MHz function generator |
| Bode plot: | Standard |
| Dimension: | 340 mm (W) x 158 mm (H) x 152 mm (D) |
The Keysight EDUX1052G oscilloscope offers fast waveform update rates, advanced analysis tools, and a user-friendly interface. Perfect for educational environments, it features robust memory and diverse connectivity options, making it an ideal choice for both students and professionals.
Measurement Functions of the Keysight EDUX1052G Oscilloscope
The Keysight EDUX1052G oscilloscope stands out with a waveform update rate of up to 100,000 waveforms per second, enabling users to observe and analyze signals quickly and efficiently. It comes with powerful signal analysis tools, including automatic measurements and FFT (Fast Fourier Transform) for frequency analysis. The diverse and robust triggering system allows users to easily detect and analyze critical signal events. With up to 100 kpts of memory per channel, it enables the storage and review of waveform data for later analysis.
User-Friendly and Intuitive Design:

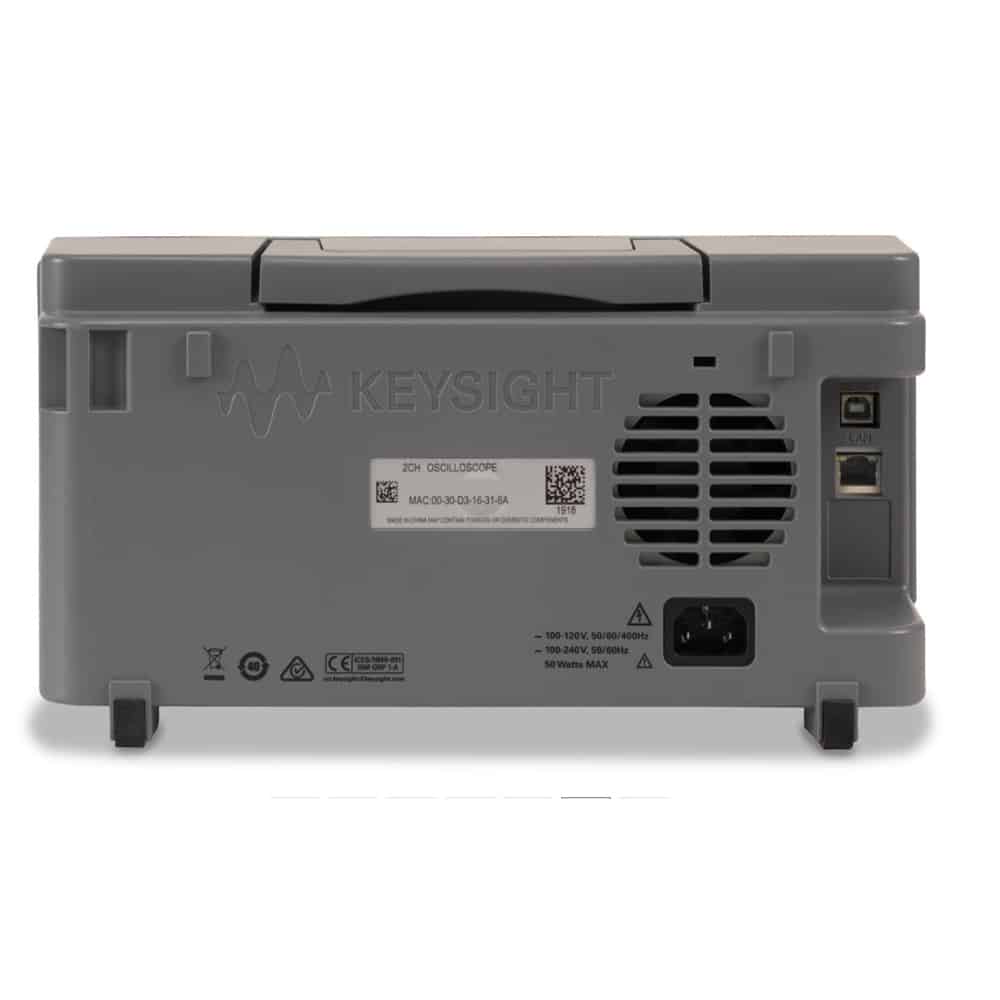

The oscilloscope also features an education mode, which supports lessons and practical exercises, making it particularly suitable for educational and training environments. With a user-friendly interface, the controls and menus are intuitively arranged, allowing users to easily operate and access the oscilloscope’s features. Additionally, it includes USB 2.0 and LAN (10/100BASE-T) ports, facilitating connections to computers and peripheral devices, as well as enabling data sharing and remote access.
Equipped with WaveGen Functionality on the Oscilloscope:
The Keysight EDUX1052G oscilloscope is equipped with the WaveGen functionality. This feature provides the ability to generate and customize a wide range of waveforms, meeting the testing and analysis needs across various fields. WaveGen allows users to create and modify waveforms, from basic types like sine, square, and triangle to more complex forms. This capability aids in simulating real-world signals and analyzing system responses to different signal types.
The WaveGen feature is directly integrated into the interface of the EDUX1052G oscilloscope, making waveform creation and usage simple and convenient. Users can quickly access and adjust parameters right on the touchscreen, streamlining the process of generating and working with waveforms.
What is the Keysight EDUX1052G used for?
Design and R&D measurement
Production test and maintenance
Analog and digital waveform analysis
Keysight EDUX1052G — frequently asked questions
Where can I buy a genuine Keysight EDUX1052G in Vietnam?
How much does the Keysight EDUX1052G cost?
Is the Keysight EDUX1052G covered by warranty and calibration?
