SPECIFICATIONS DSOX1204A Keysight Oscilloscope
General technical data: |
|
| Bandwidth: | 70 MHz (base bandwidth) 100 MHz (D1202BW1A) 200 MHz (D1202BW2A) |
| Analog channel: | 4 |

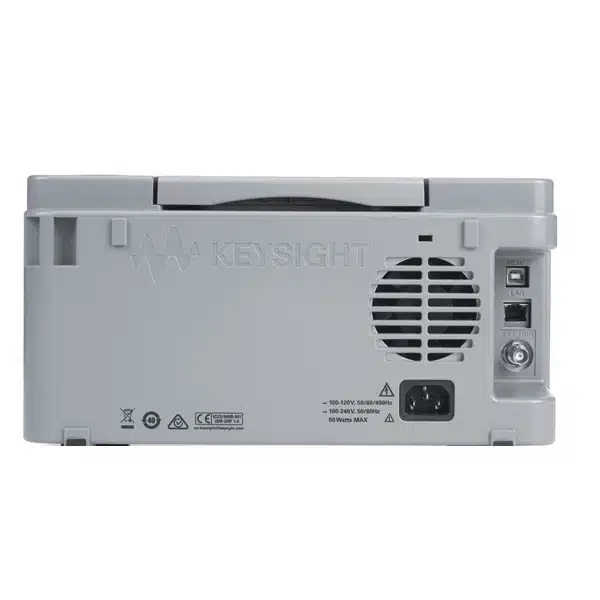

| External trigger (or 3rd digital channel): | Back panel input (not displayed) |
| Maximum sample rate: | 2 GSa/s (one- or half-channel operation) 1 GSa/s (three- or four-channel operation) |
| Vertical resolution: | 8-bit |
| Maximum memory depth: | 2 M points (one- or half-channel operation) 1 M points (three- or four-channel operation) |
| Display size and type: | 7-inch TFT LCD WVGA |
| Connectivity: | USB 2.0 (host và device), LAN (10/100BASE-T) |
| Waveform update rate: | 200,000 waveforms per second |
| Serial protocol analysis: | Standard: I²C, UART/RS-232 |
| Integrated digital voltmeter: | Standard |
| Frequency counter: | Standard |
| Built-in training signals: | Standard |
| Waveform math: | Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter |
| Automatic measurements: | 14 amplitude, 14 timing, and 4 pulse count measurements |
| Wavegen: | Not available |
| Bode plot: | Not available |
| Dimension: | 340 mm (W) x 158 mm (H) x 152 mm (D) |
The Keysight DSOX1204A oscilloscope offers fast waveform update rates, advanced analysis tools, and a user-friendly interface. Perfect for educational environments, it features robust memory and diverse connectivity options, making it an ideal choice for both students and professionals.
Measurement Functions of the Keysight DSOX1202A Oscilloscope
The Keysight DSOX1204A oscilloscope stands out with a waveform update rate of up to 200,000 waveforms per second, enabling users to observe and analyze signals quickly and efficiently. It comes with powerful signal analysis tools, including automatic measurements and FFT (Fast Fourier Transform) for frequency analysis. The diverse and robust triggering system allows users to easily detect and analyze critical signal events. With up to 100 kpts of memory per channel, it enables the storage and review of waveform data for later analysis.
User-Friendly and Intuitive Design:
The oscilloscope also features an education mode, which supports lessons and practical exercises, making it particularly suitable for educational and training environments. With a user-friendly interface, the controls and menus are intuitively arranged, allowing users to easily operate and access the oscilloscope’s features. Additionally, it includes USB 2.0 and LAN (10/100BASE-T) ports, facilitating connections to computers and peripheral devices, as well as enabling data sharing and remote access.
