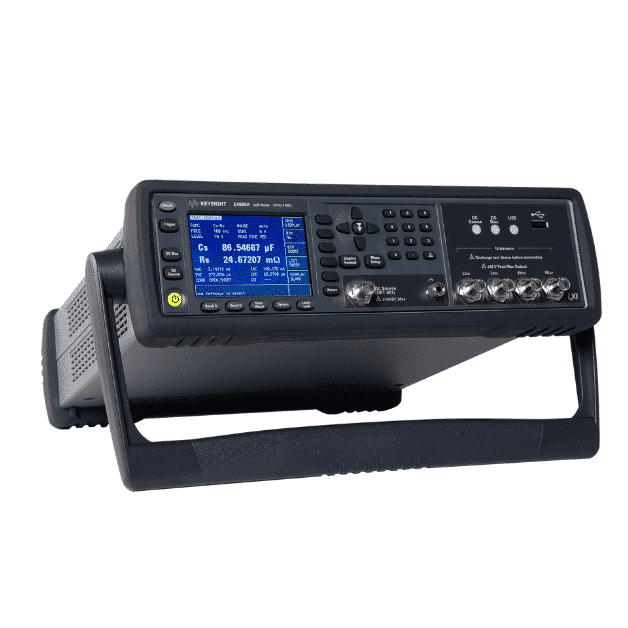

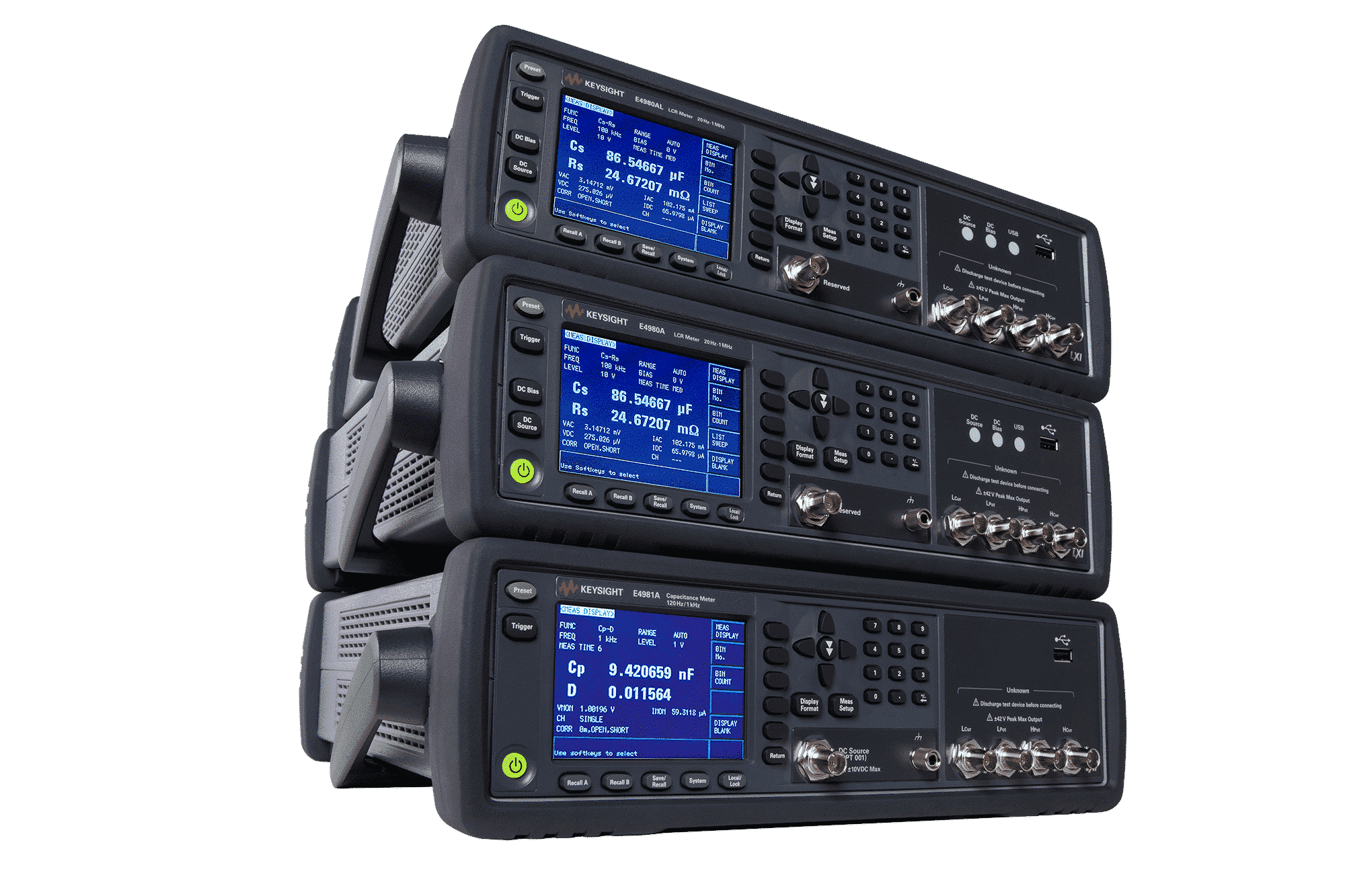

LCR METER – Keysight E4980A

Call for Price

More features

20 Vrms test signal (Option 001)
High-speed measurements: 5.6 ms
201 points list sweep
Versatile PC connectivity (LAN, USB and GPIB)

SPECIFICATIONS LCR METER – KEYSIGHT E4980A

General technical data
Frequency	20 Hz to 2MHz, with 4-digit resolution in any range
Test signal level	0 to 2 Vrms/0 to 20 mArms 0 to 2 Vrms/0 to 100 mArms (Option E4980A-001 required)
Auto level control (ALC)	Yes
AC test signal	0 to 2 Vrms, 20 mArms
DC bias capability	Built-in 1.5 V, 2 V ± 40 V (Option E4980A-001 required)
DC source	± 10 V (Option E4980A-001 required)
Programmable list sweep	201 points
Remote control	GPIB, LAN, USB
Web browser control	Yes
Control commands	4284A compatible
Basic accuracy	0.1% in SHORT mode 0.05% in MED/LONG mode
Parameters	Cp-D/Q/G/Rp, Cs-D/Q/Rs, LpD/Q/G/Rp, Ls-D/Q/Rs, R-X, Z-Ød/Ør, G-B, Y-Ø/Ør Lp-Rdc, Ls-Rdc, Vdc-Idc (Option E4980A-001 required)
Storage devices	Internal/USB memory
Cable lengths	0, 1, 2, 4, m
Cabinet dimensions (mm)	370 (W) x 105 (H) x 390 (D) mm
Weight	5.3 kg

Measurement Time Mode (SHORT/MED)
Standard model	330 ms/380 ms at a frequency of 20 Hz 20 ms/110 ms at a frequency of 1 kHz 7.7 ms/92 ms at a frequency of 10 kHz 5.7 ms/89 ms at a frequency of 100 kHz 5.6 ms/88 ms at a frequency of 1 MHz 5.6 ms/88 ms at a frequency of 2 MHz
Entry model (E4980A-005)	1040 ms / 1150 ms at a frequency of 20 Hz 240 ms / 380 ms at a frequency of 100 Hz 37 ms / 200 ms at a frequency of 1 kHz 25 ms / 180 ms at a frequency of 10 kHz 23 ms / 180 ms at a frequency of 100 kHz 23 ms / 180 ms at a frequency of 1 MHz 23 ms / 180 ms at a frequency of 2 MHz

Measurement Time Mode (SHORT/MED)

Standard model

330 ms/380 ms at a frequency of 20 Hz

20 ms/110 ms at a frequency of 1 kHz

7.7 ms/92 ms at a frequency of 10 kHz

5.7 ms/89 ms at a frequency of 100 kHz

5.6 ms/88 ms at a frequency of 1 MHz

5.6 ms/88 ms at a frequency of 2 MHz

Entry model (E4980A-005)

1040 ms / 1150 ms at a frequency of 20 Hz

240 ms / 380 ms at a frequency of 100 Hz

37 ms / 200 ms at a frequency of 1 kHz

25 ms / 180 ms at a frequency of 10 kHz

23 ms / 180 ms at a frequency of 100 kHz

23 ms / 180 ms at a frequency of 1 MHz

23 ms / 180 ms at a frequency of 2 MHz

Keysight E4980A: High-Performance LCR Meter for Electronics Testing

The E4980A precision LCR meter provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980A is the ultimate tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity. For materials measurements, the E4980A with the N1500A-005/006 materials measurement suite simplifies the measurement process from fixture setup to report generation.

LCR METER - KEYSIGHT E4980A — LCR METER – KEYSIGHT E4980A

Frequently asked questions

Keysight E4980A — frequently asked questions

Where can I buy a genuine Keysight E4980A in Vietnam?

Techmaster Electronics is an authorised Keysight Technologies distributor in Vietnam. We supply the LCR METER – Keysight E4980A as 100% genuine equipment with CO/CQ documents, engineering advice and full lifecycle support. Call +84 908 173 345 for a quote.

How much does the Keysight E4980A cost?

The E4980A is configured to order, so options and accessories change the price and Techmaster quotes each requirement individually. Send your requirement at https://techmaster.com.vn/en/contact/ or call +84 908 173 345 for a same-day quote.

Is the Keysight E4980A covered by warranty and calibration?

Yes. The LCR METER – Keysight E4980A carries the Keysight manufacturer warranty, and Techmaster provides ISO/IEC 17025 calibration, repair and scheduled maintenance in Vietnam.
