Keysight N5227B PNA Microwave Network Analyzer

Call for Price

Highlight

Choose a single 2-port or dual 4-port source version
Take advantage of the built-in pulse modulator and pulse generator for pulsed S-parameter measurements
Achieve low receiver noise floor and high receiver compression
Achieve fast measurement speeds: 3.6 to 23 μsec/point
Measure S-parameters with minimal uncertainty and maximum stability

Description
Reviews (0)

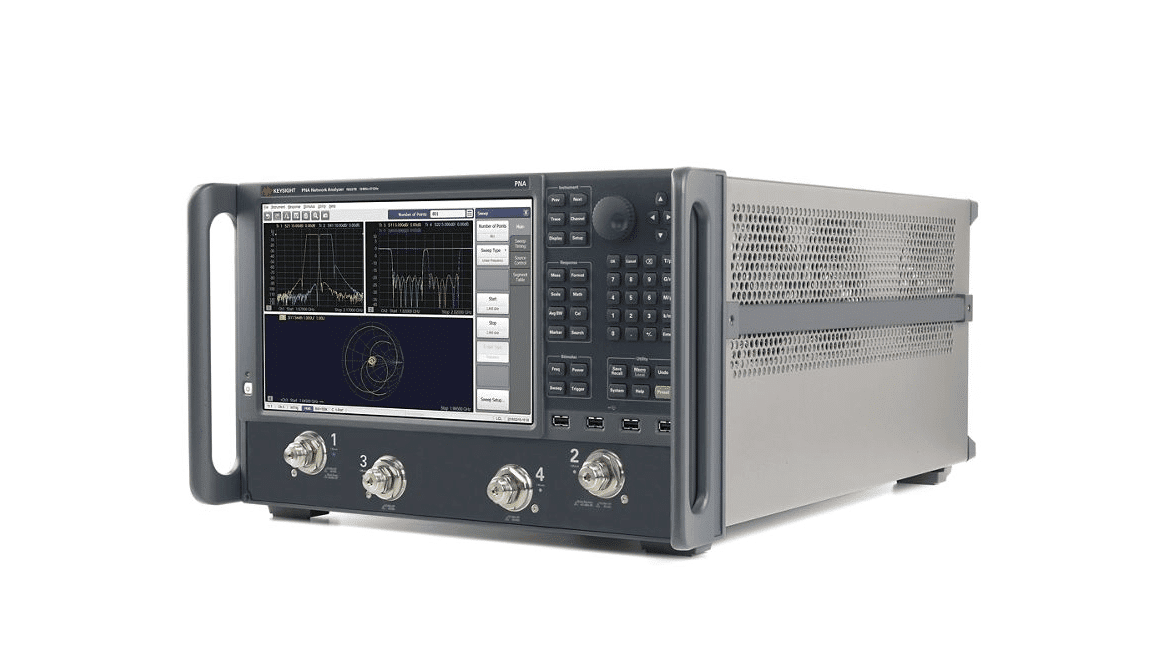

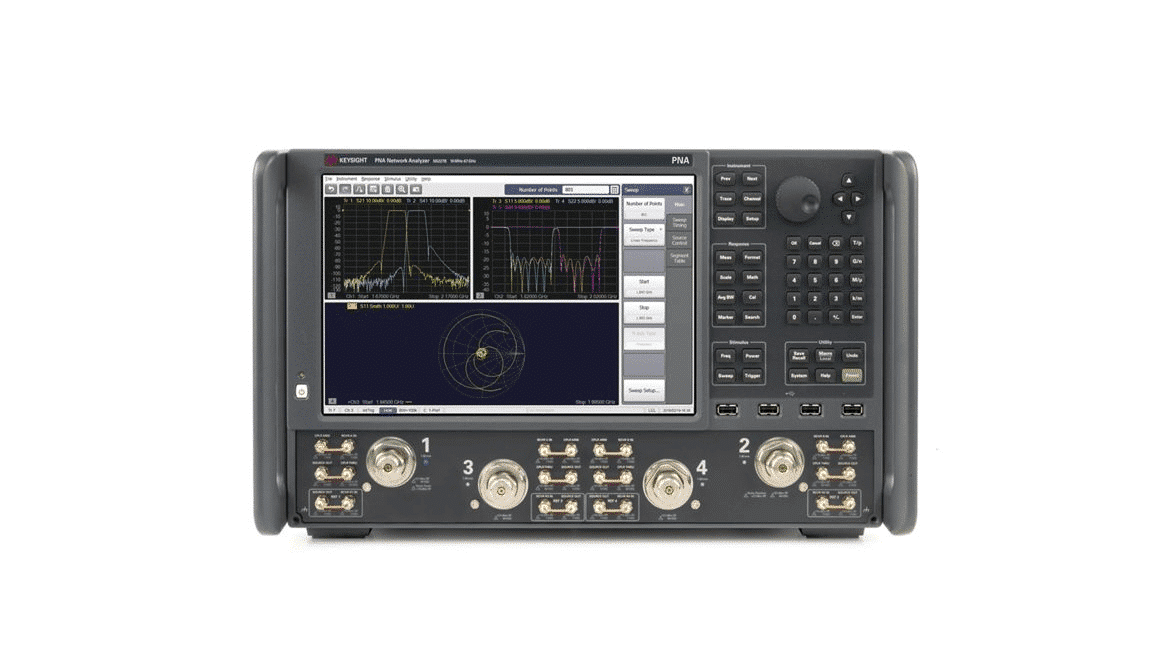

Keysight N5227B PNA Microwave Network Analyzer (10 MHz – 67 GHz)

The Keysight N5227B PNA Network Analyzer delivers fast, accurate, and reliable measurements for RF and microwave devices. It covers the 10 MHz to 67 GHz frequency range. The analyzer supports 2-port single-source or 4-port dual-source configurations.

It includes source and receiver attenuators, bias-tees, pulse generators, and modulators. These features allow engineers to measure both continuous-wave and pulsed signals with high accuracy.

Key Features & Advantages:

Hardware & Software Integration: Combines advanced hardware with test software. This helps engineers explore, define, and resolve complex measurement challenges.
Comprehensive Test Applications: Supports noise figure, EVM, and pulsed-RF measurements. You can fully characterize amplifiers, mixers, frequency converters, and other RF devices.
Superior RF Performance: Offers a low receiver noise floor and high receiver compression level. S-parameter measurements have minimal uncertainty and high stability.
Fast Measurement Speeds: Achieve 3.6–23 μs per point, reducing test time for large datasets.
Flexible Measurement Options: Choose 2-port single-source for standard measurements. Use 4-port dual-source for multi-port devices. Built-in pulse modulators enable pulsed S-parameter testing.

The N5227B is ideal for RF and microwave engineers. It ensures high-precision, reliable measurements and speeds up testing. The analyzer helps optimize device performance and troubleshoot design issues. It provides accurate results in both lab and production environments.
