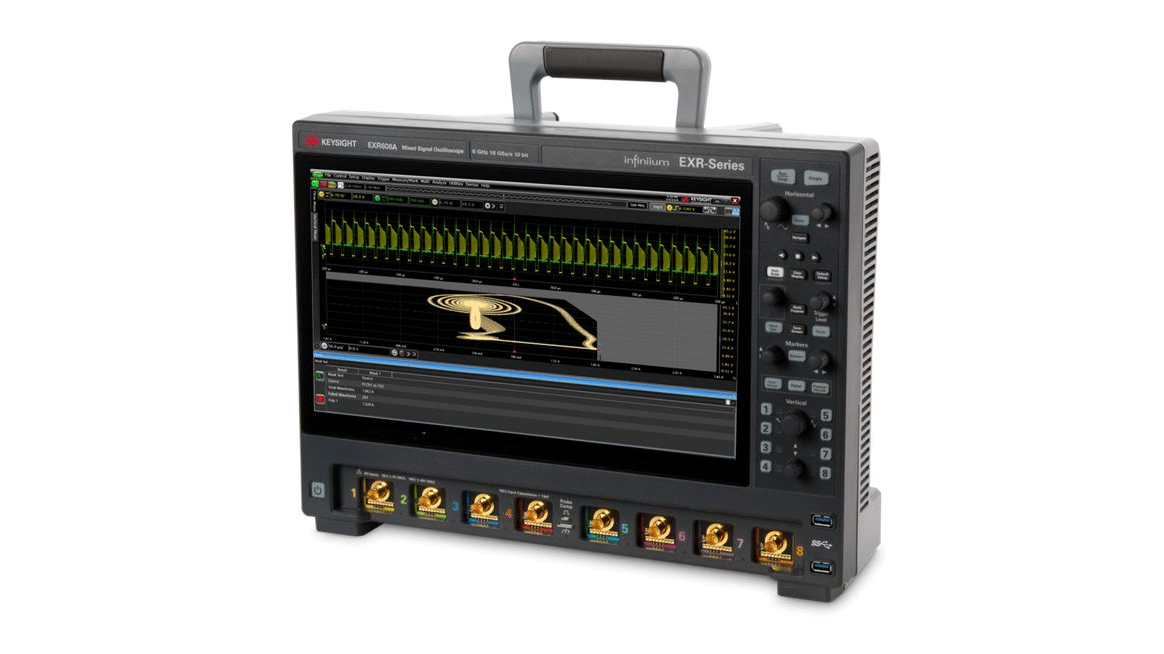

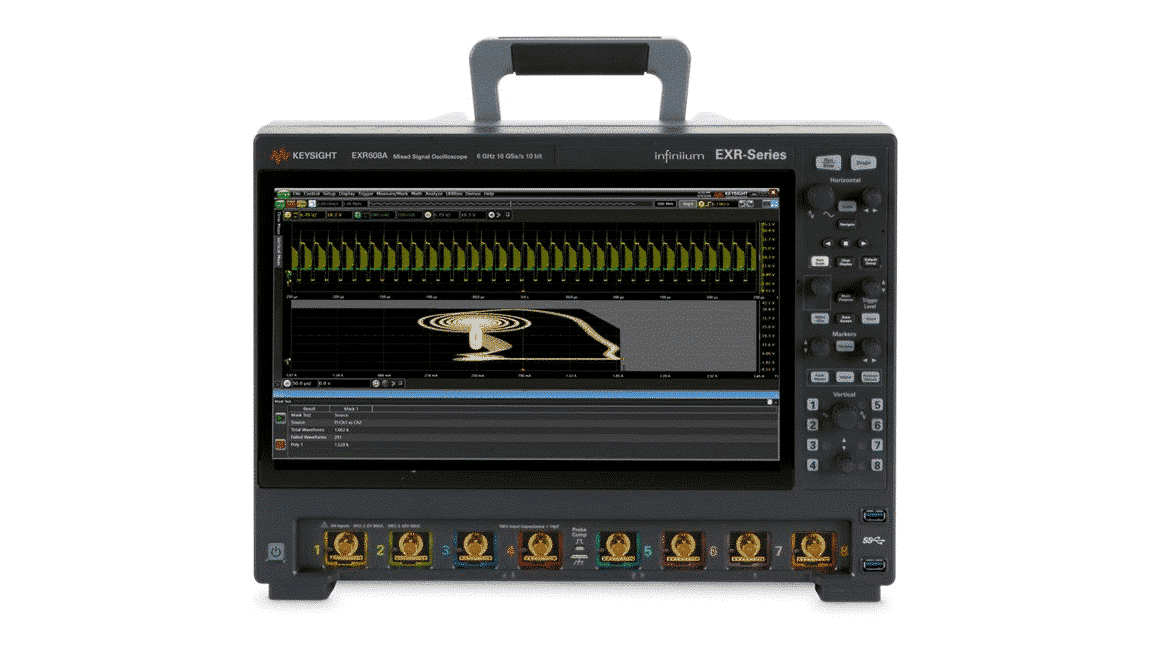

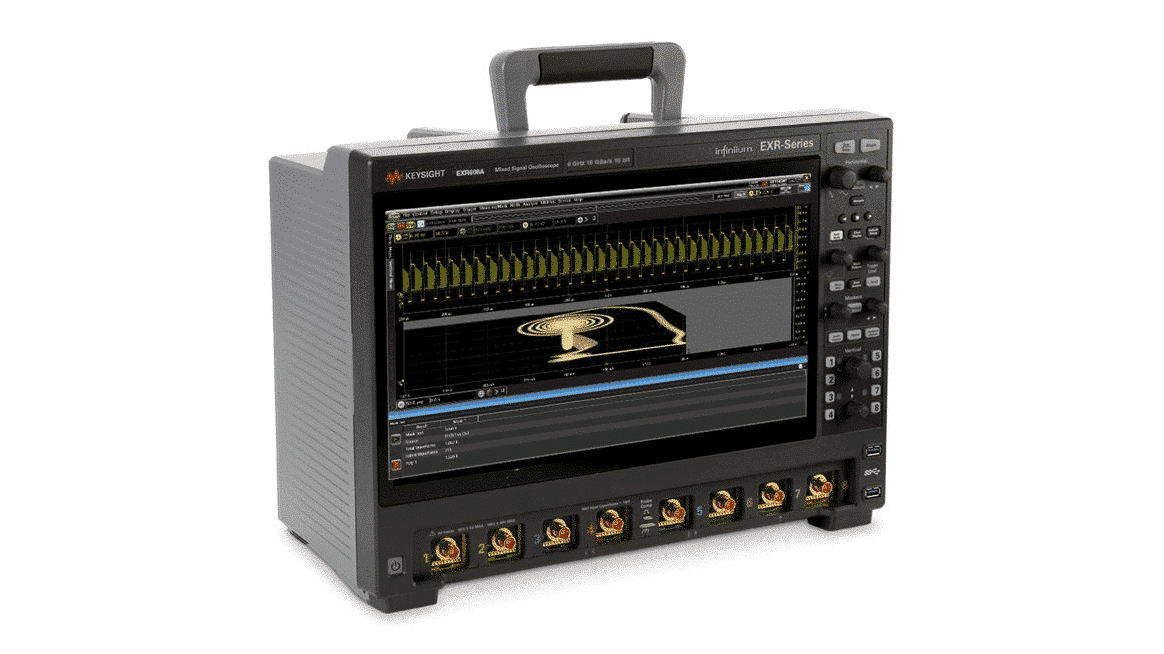

Keysight EXR608A Infiniium EXR-Series Oscilloscope – 6 GHz, 8 Channels, Powerful Signal Analysis Solution

The Keysight EXR608A is a high-performance oscilloscope from the Infiniium EXR Series, designed for today’s most demanding electronic designs. Featuring an impressive 6 GHz bandwidth and 8 analog input channels, it enables engineers to simultaneously monitor multiple complex signals. This makes it ideal for advanced measurement applications in high-speed electronics, telecommunications, and automotive systems.
With a rapid sampling rate of up to 16 GSa/s and a generous 200 Mpts standard memory per channel, the EXR608A ensures outstanding signal capture and detailed analysis, even for long data streams or fast transients. Its large 15.6-inch Full HD touchscreen combined with an intuitive user interface significantly enhances productivity and simplifies operation, allowing for quick setup and analysis.
The EXR608A integrates powerful advanced features like serial protocol analysis (supporting I²C, SPI, CAN, LIN, etc.), jitter measurement, spectrum analysis, and sophisticated detection of signal anomalies. Further boosting its versatility, it includes a built-in waveform generator (WaveGen), digital voltmeter, and mask testing capabilities. This makes the EXR608A a flexible, all-in-one solution for R&D, rigorous product testing, and advanced engineering education. It delivers the comprehensive insights needed to accelerate development and ensure product reliability.
EXR608A Infiniium EXR-Series Oscilloscope Specifications
-
Analog channels: 4 or 8, upgradeable
-
Bandwidth: 500 MHz to 6 GHz, upgradeable
-
Sample rate: 16 GSa/s
-
Memory: 100 Mpts (upgradeable to 400 Mpts or 1.6 Gpts flexible memory)
-
Resolution: 10 bits (standard), up to 16 bits in high-resolution mode
-
ENOB: Up to 9.0
-
Digital logic channels: 16 dedicated channels, upgradeable
-
Waveform update rate: > 200,000 wfms/s
-
Eye diagram rendering speed: > 750,000 UI/s
-
Display: 15.6″ touchscreen, Full HD resolution, dual-screen support
What’s Included:
- One N2873A 500-MHz passive probe per channel
- Probe accessory pouch
- Localized power cord
- Front panel hard cover
- BNC calibration cable
- Keyboard and mouse
- Keysight I/O libraries suite, user guide and programmer’s guide ship on oscilloscope drive
- 1 year factory calibration certificate
- Service guide available on Keysight.com
