Keysight EXR404A Infiniium EXR-Series Oscilloscope

Keysight EXR404A Infiniium EXR-Series Oscilloscope

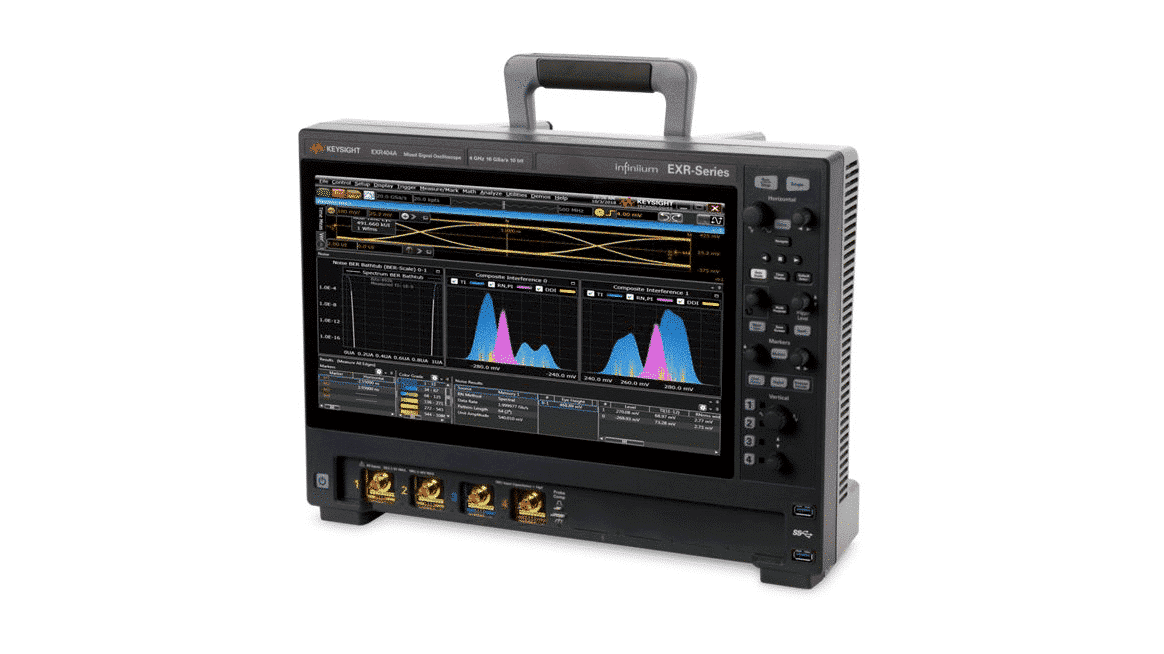

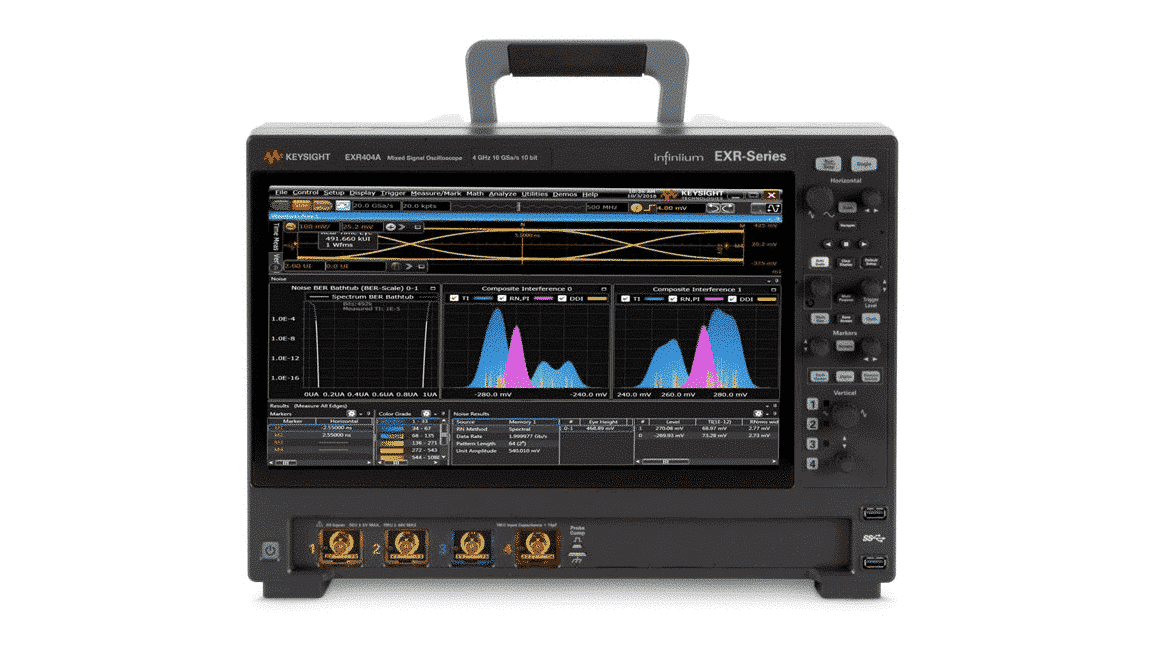

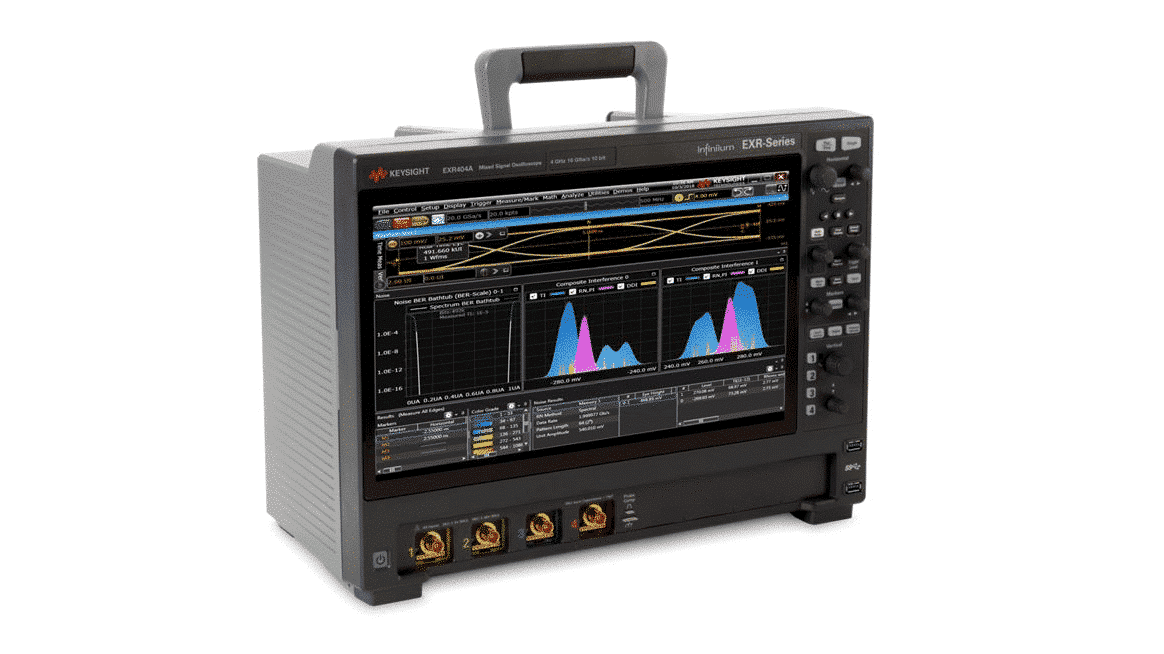

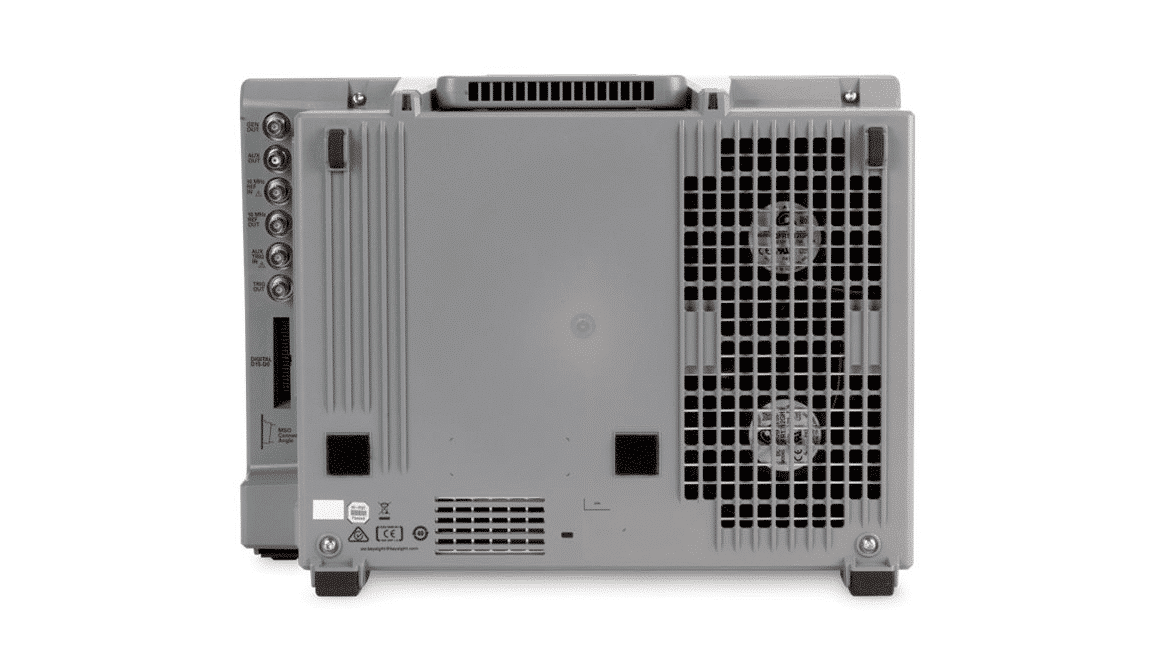

The Keysight EXR404A is a member of the Infiniium EXR-Series oscilloscopes, delivering 4 GHz bandwidth on all 4 analog channels and integrating 8 powerful test instruments in one compact unit. Built with ASIC acceleration and up to 9.0 ENOB for outstanding signal fidelity, the EXR404A is fully upgradeable to 6 GHz bandwidth and 8 channels, making it ideal for high-speed digital design, signal integrity testing, and embedded system validation.

Key features:

• 4 GHz bandwidth on all four analog channels

• ASIC technology for accelerated processing and fast test speeds

• High measurement precision with up to 9.0 ENOB and as low as 43 µV noise

• Flexible memory up to 1.6 Gpts

• 7-in-1 integration: oscilloscope, spectrum analyzer, function generator, protocol analyzer, logic analyzer, digital voltmeter, and counter/power meter

• Fully upgradeable in bandwidth, channel count, and software capabilities

What’s included:

• 4 × N2873A 500 MHz passive probes (one per channel)

• Probe accessory pouch

• Localized power cord

• Front panel protective cover

• BNC calibration cable

• Keyboard and mouse

• Keysight I/O Libraries Suite, user guide and programmer’s guide (preloaded)

• 1-year factory calibration certificate

• Service guide available on Keysight.com
