Keysight DSOS604A High-Definition Oscilloscope

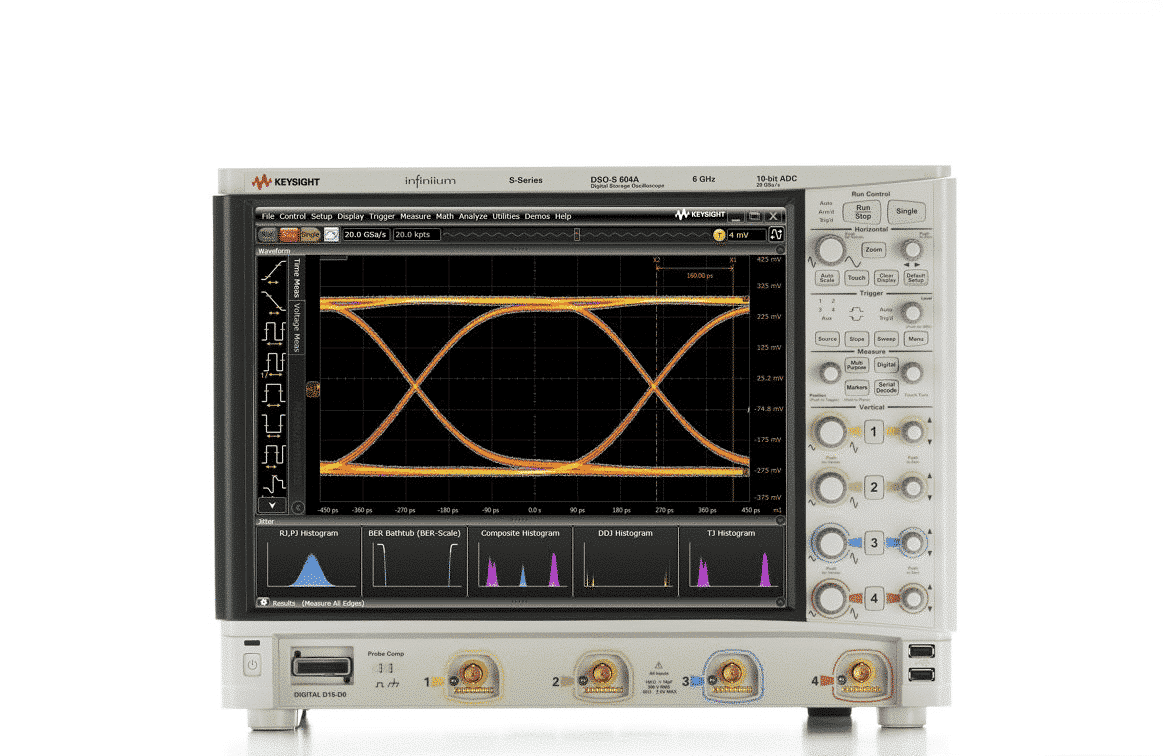

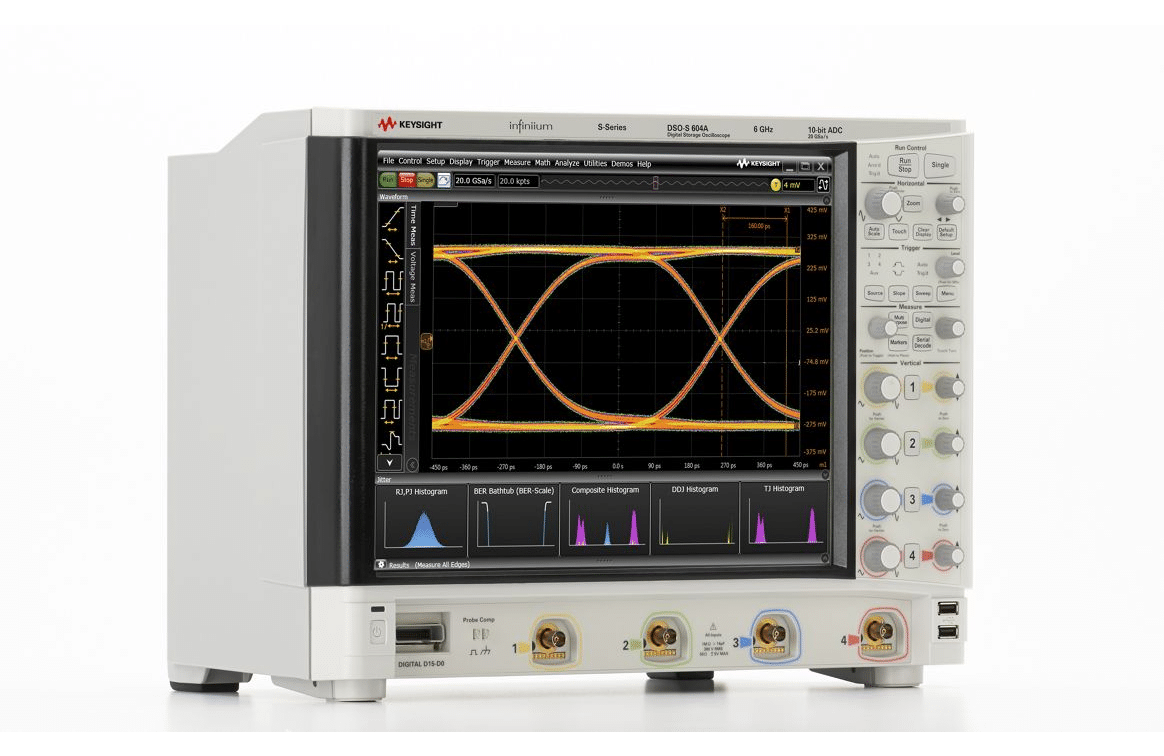

Keysight DSOS604A High-Definition Oscilloscope – 6 GHz, 4 Analog Channels

The Keysight DSOS604A is a premium high-definition oscilloscope in the Infiniium S-Series, engineered for professionals working on high-speed digital and RF designs. With 6 GHz of bandwidth and 4 analog channels, it provides the resolution, accuracy, and speed required for advanced debugging and validation tasks.

At the heart of the DSOS604A is a 10-bit ADC that delivers significantly higher vertical resolution than traditional 8-bit scopes. When used in high-resolution mode, the oscilloscope achieves up to 16-bit vertical resolution, enabling precise measurements of low-level signals. It maintains an ENOB (Effective Number of Bits) of 8.1 at full bandwidth, ensuring superior signal integrity.

The DSOS604A offers a 20 GSa/s sampling rate and a standard memory of 100 Mpts/channel, making it ideal for capturing fine signal details across long durations. Its 15-inch capacitive touchscreen display provides an intuitive interface for fast navigation, multi-touch zooming, and waveform manipulation. The system also features a solid-state drive (SSD) for fast boot times and improved reliability.

Advanced analysis capabilities include protocol decoding (I2C, SPI, UART, CAN, LIN), jitter and eye diagram analysis, frequency domain viewing with FFT, mask testing, and more. These tools make the DSOS604A versatile across a range of industries including telecommunications, automotive, aerospace, and education.

Included accessories:

• 4x N2873A 500 MHz passive probes

• 8 GHz BNC calibration cable

• Keyboard, mouse, localized power cord

• Probe pouch, front panel cover

• Keysight I/O libraries, user and programmer’s guides

• Free BenchVue Basic app for remote control

With powerful performance and flexible analysis, the DSOS604A is the ideal oscilloscope for modern engineering challenges.
