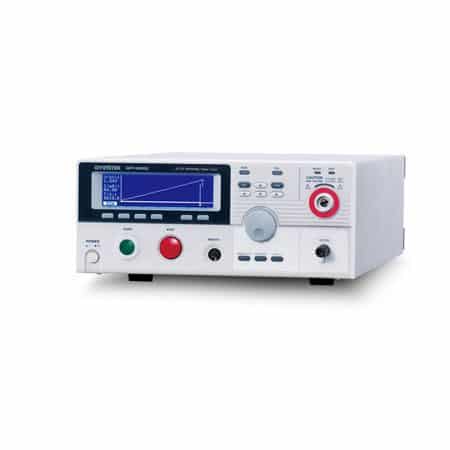

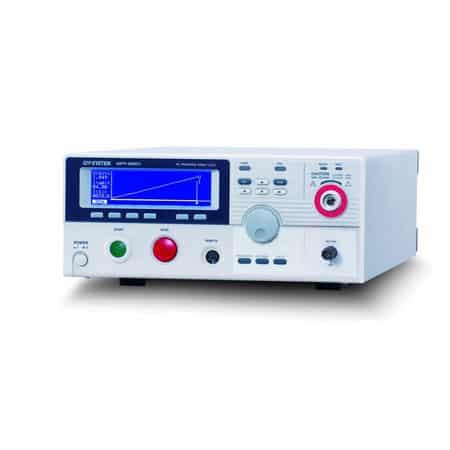

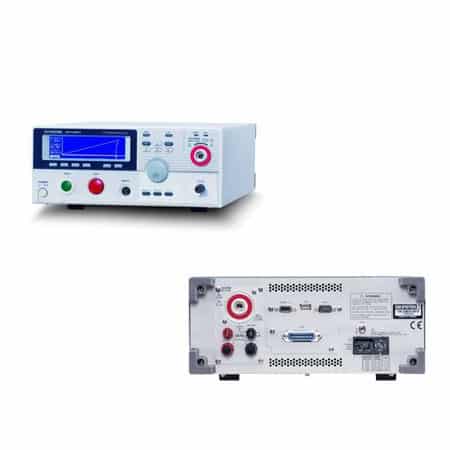

SPECIFICATIONS GW Instek GPT-9902A ELECTRICAL SAFETY TESTER
1. Introduction GW Instek GPT-9902A Electrical Safety Tester
GW Instek is launching a new safety tester (hi-pot tester/hipot tester) family. The GPT-9900 series, with 500VA maximum output capacity to the market. The family of four, including GPT-9904, GPT-9903A, GPT-9902A and GPT-9901A, come joining the GPT-9800 series, which carries 200VA output capacity, to serve the market with higher power demands for the safety tests of electronic products and components.
The GPT-9000 series supports the major test items among all the needed for the compliance of the safety standards such as IEC, EN, UL, CSA, GB, JIS and other safety regulations.
– 500VA AC Test Capacity
– Short Current > 200mA
– 240×64 Ice Blue Dot matrix LCD
– Sweep Function for DUT characteristic analysis
– Insulation resistance measurement up to 50GΩ(GPT-9903A/9904)
– Manual/Auto Mode
– Function Key for quick selection
– High intensity flash for caution & Status indication
– Safety INTERLOCK function
– Zero Crossing Turn-on Operation
– Controllable Ramp-up Time
– RMS Current Measurement
– High resolution: 1uA for measuring current, 2V for setting voltage
– PWM amplifier to enhance the power efficiency and reliable testing
– Max. 100 memory block for test condition (step) setting. And each step can be named individually.
– Remote terminal on the front panel for “start” and “stop” control

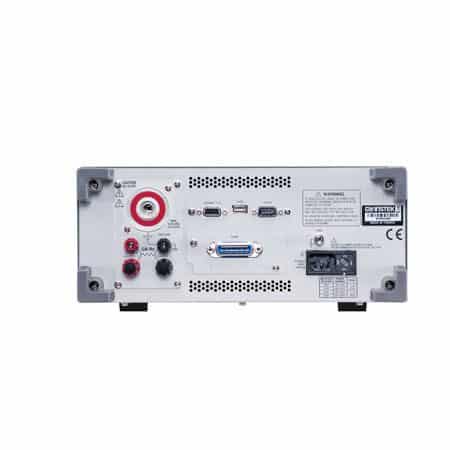

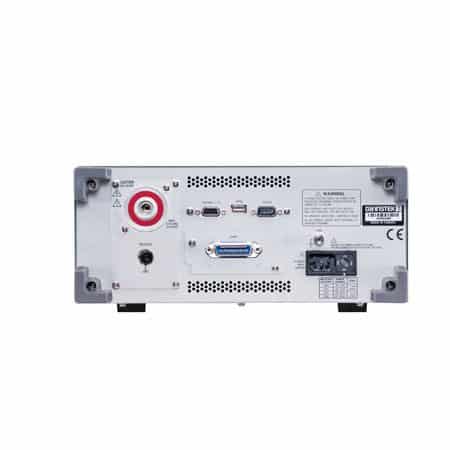

– Rear panel output available
– Interface : RS-232C, USB device, Signal I/O and GPIB (optional)
