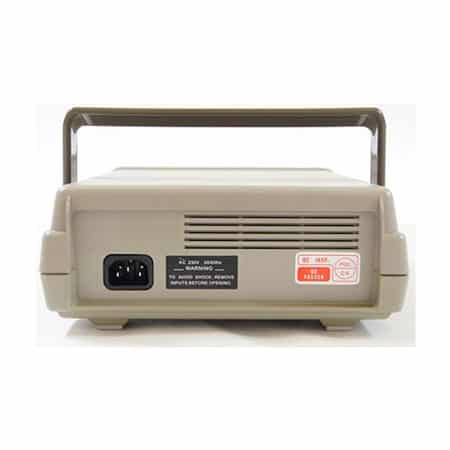

Máy đếm tần số GW Instek GFC – 8010H (2)

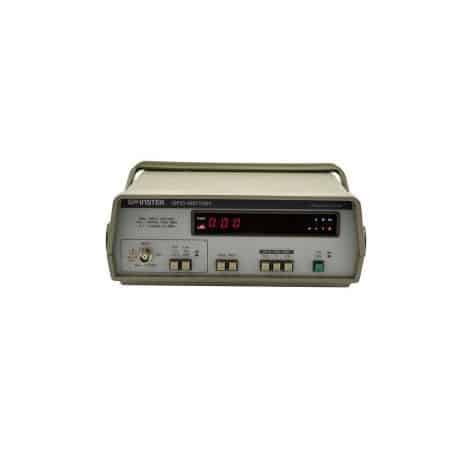

Máy đếm tần số GW Instek GFC – 8010H (1)

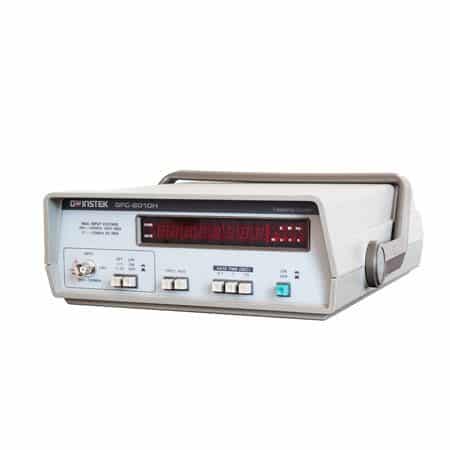

GW Instek GFC-8010H DIGITAL FREQUENCY COUNTER

FEATURES

– 10Hz ~ 120MHz Range
– 8 Digits Display (0.3″LED)
– 15mV rms High Sensitivity
– 5PPM High Stability Time Base
– Frequency and Period Measurement

Description
Additional information

SPECIFICATIONS GW Instek GFC-8010H DIGITAL FREQUENCY COUNTER

DISPLAY:

8 digits with Hz, kHz, MHz, GHz, S, mS, μS, nS and overflow

GATE TIME:

0.1S, 1S, 10S selectable

ACCURACY:

+(1 digit + time base accuracy)

INPUT:

Sensitivity:

10Hz ~ 10MHz: < 15mVrms

10MHz ~ 40MHz: < 20mVrms

40MHz ~ 80MHz: < 35mVrms

80MHz ~ 120MHz: < 50mVrms

Impedance: 1MΩ//35pF

Coupling AC: coupling

Max Input: 150Vrms

TIME BASE:

Oscillation Frequency: 10MHz

Aging Rate: +1 ppm per month

Temperature Stability: 25°C + 5°C：+5 ppm

RESOLUTION:

Frequency:

1μHz for 10Hz input

0.1Hz for 100MHz input

Period:

1ns for 10Hz input

0.1 x 10-15 for 100MHz input

POWER SOURCE:

AC 100V/120V/220V/230V ±10%, 50/60Hz

DIMENSIONS & WEIGHT

230(W) × 95(H) × 280(D) mm, Approx. 1.7 kg

Introduction GW Instek GFC-8010H Digital Frequency Counter

The GFC-8010H (GW Instek GFC-8010H) performs virtually most of the counting measurements required in laboratories, in terms of both period and frequency. 8 digits LED display with distinctive red color and overflow indicator provides fast and clear view. With easy operation of all functions neatly organized on the front panel, compact size suitable for both portable and bench-top usage, the GFC-8010H serves users as a handy reference.

The GFC-8010 is made by GW Instek – Taiwan, is a leading manufacturer of electrical test & measurement instruments.

FEATURES GW Instek GFC-8010H Digital Frequency Counter

– 10Hz ~ 120MHz Range
– 8 Digits Display (0.3″LED)
– 15mV rms High Sensitivity
– 5PPM High Stability Time Base
– Frequency and Period Measurement
– Low Pass Filter Function
– Over-Flow Indicatot

GW Instek Brand

Good Will Instrument Co., Ltd (acronym is GW Instek) is a leading manufacturer of electrical test & measurement instruments in Taiwan. GW Instek is founded in 1975 and began as a manufacturer of power supplies and quickly expanded into the development of high precision electronic test and measurement instruments. After decades of experience in the test and measurement industry, GW Instek has grown to become one of the important manufacturers and developers of test and measurement instruments worldwide.
