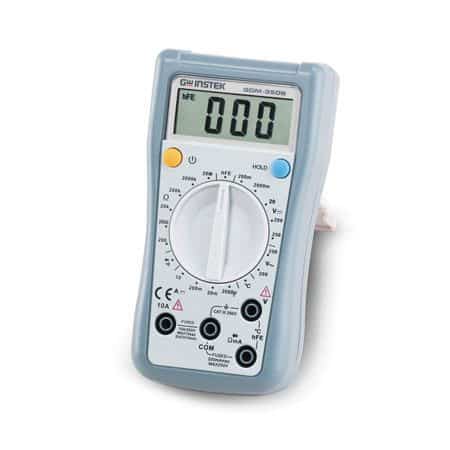

GW INSTEK GDM-350B (CE) (3 1/2 DIGITS) HANDHELD DIGITAL MULTIMETER



Features

  • 3 1/2 Digits 1999 counts
  • Manual Ranging, Continuity Beeper/Diode Test, Data Hold
  • hFE Test (GDM-350B)
  • Temperature Measurement
  • Capacitance, Frequency Measurement

SPECIFICATIONS GW INSTEK GDM-350B HANDHELD DIGITAL MULTIMETER

DC VOLTAGE
Range: 200mV, 2000mV, 20V, 200V, 250V
Best Accuracy: ±(0.5%rdg + 2 digits)
AC VOLTAGE
Range: 200V, 250V
Best Accuracy: ±(1.2%rdg + 3 digits)
Input Impedance: 4.5MΩ
DC CURRENT
Range: 2000µA, 20mA, 200mA, 10A
Best Accuracy: ±(1.0%rdg + 2 digits)
RESISTANCE
Range: 200Ω ~ 20MΩ 6 ranges
Best Accuracy: ±(0.8%rdg + 5 digits)
DIODE TEST
Open Circuit Voltage: 2.8V (Approx.), 2.3V (Approx.)
CONTINUITY BEEPER (GDM-350B)
Buzzer sounds if conductance less than 10Ω
TEMPERATURE
Range: -40ºC ~ 1000ºC
Best Accuracy: ±(1.0%rdg + 3 digits)
SPECIAL FUNCTION
hFE Test
LCD DISPLAY
3 1/2 digits
POWER SOURCE
Single 9V Battery (6F22)
DIMENSIONS & WEIGHT
Approx. 200g

Introduction GW Instek GDM-350B

The GDM-300/400 Series Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet most of the daily needs for design engineers as well as service engineers. The GDM-300/400 series design is driven by mobile-oriented features, such as automatic power down to preserve battery life, a large backlight display for crisp viewing, a rotary selector switch and clear-cut push buttons to ease operation. The basic functions match the depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Auto ranging, Duty cycle, and Relative mode. These compact, reliable, and economical devices are ideal for any engineer.

The GW Instek GDM-350B multimeter is a hand-held 3 1/2digit multimeter with an advanced design, multiple functions and reliable performance. This meter is fully capable of measuring both AC and DC voltage, DC current, resistance, temperature, the forward voltage drop of diodes, transistors, hFE and continuity tests. The multi- purpose socket is used to measure SMTs as well. This operating manual covers information on safety and precautions to fulfill CE standards. Please read the relevant information carefully and observe all the warnings and notes.

Features

– 3 1/2 Digits 1999 counts
– Manual Ranging, Continuity Beeper/Diode Test, Data Hold
– hFE Test (GDM-350B)
– Temperature Measurement
– Capacitance, Frequency Measurement
– Continuity Beeper/Diode Test
– High Energy Fuse for 10A Range
– Data Hold/Relative Mode
