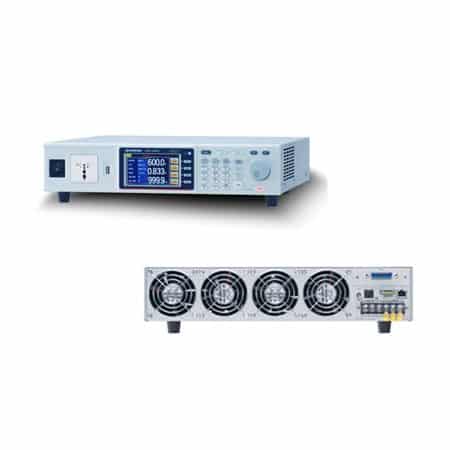

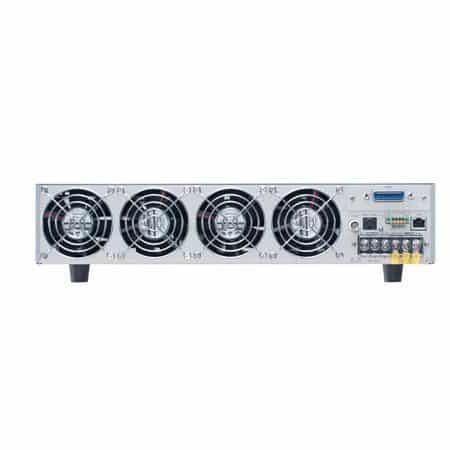

GW Instek APS-7100 AC Power Sources (Programmable Linear)

Features

  • 4.3-inch TFT-LCD
  • Output capacity: APS-7100 (1000VA、310Vrms、8.4Arms);Output augmentation by options (0~600Vrms/45~999.9Hz)
  • Low Ripple & Noise
  • Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF
  • Support a small AC current measurement 2mA ~ 35A, Min. resolution 0.01mA

specifications GW Instek APS-7100 AC Power Sources Programmable Linear

Power Rating:1000VA

Output Voltage 0 ~  , 0 ~ 310Vrms

Output Frequency 45.00 ~ 500.0 Hz

Max. Current(rms): *1 0 ~ 155 Vrms8.4A; 0 ~ 310 Vrms 4.2A

Max. Current (peak):

0 ~ 155 Vrms Peak value which is four times of the maximum current(rms)

0 ~ 310 Vrms Peak value which is four times of the maximum current(rms)

OPT. APS-003(rms): 0 ~ 600 Vrms: 2.1A

OPT. APS-003(peak): 0 ~ 600 Vrms:  Peak value which is four times of the maximum current

Total Harmonic Distortion (THD) *2: ≤ 0.5% at 45 ~ 500.0Hz (Resistive Load)

Crest factor: ≤ 4

Line regulation: 0.1% (% of full scale)

Load regulation: 0.5% (% of full scale)

Response time:  < 100µS

Reverse current:

 30% of Maximum Output RMS Current (Continue)

100% of Maximum Output RMS Current (Within 3 minutes)

Setting

+ Voltage:

Range: 0 ~ 155Vrms, 0 ~ 310Vrms, Auto

Resolution: 0.01V at 0.00 ~ 99.99Vrms 0.1V at 100.0 ~ 310.0Vrms

Accuracy:  ± (0.5% of setting + 2 counts)

+ Frequency:

Range: 45 ~ 500 Hz

Resolution: 0.01Hz at 45.00 ~ 99.99Hz 0.1Hz at 100.0 ~ 500.0Hz

Accuracy: ± 0.02% of Setting

+ Power on/off phase angle

Range: 0 ~ 359°

Resolution: 1°

Accuracy: ± 1° (Only 45 ~ 65Hz)

Measurement *3 GW Instek APS-7100

+ Voltage (rms)

Range: 0.20 ~ 38.75Vrms; 38.76 ~ 77.50Vrms; 77.51 ~ 155.0Vrms;  155.1 ~ 310.0Vrms

+ Resolution: 0.01V at 0.00 ~ 99.99Vrms; 0.1V at 100.0 ~ 310.0Vrms

Accuracy *4 ± (0.5% of reading + 2 counts)

+  Frequency

Range:  45 ~ 500Hz

Resolution: 0.01Hz at 45.00 ~ 99.99Hz; 0.1Hz at 100.0 ~ 500.0Hz…

Accuracy: ± 0.1Hz

+ Current (rms)

Range: 2.00 ~ 70.00mA; 60.0 ~ 350.0mA; 0.300 ~ 3.500A; 3.00 ~ 17.50A

Resolution: 0.01mA; 0.1mA; 0.001A; 0.01A

Accuracy

± (0.6% of reading + 5 counts) , 2.00 ~ 350.0mA
± (0.5% of reading + 5 counts) , 0.300 ~ 3.500A
± (0.5% of reading + 3 counts) , 3.000 ~ 17.50A

+ Current (peak)

Range: 0.0 ~ 70.0A

Resolution: 0.1A

Accuracy: ± (1% of reading + 1 counts)

+ Power (W)

Resolution: 0.01W; 0.1W; 1W

Accuracy:

± (0.6% of reading + 5 counts) , 0.20 ~ 99.99W
± (0.6% of reading + 5 counts) , 100.0 ~ 999.9W
± (0.6% of reading + 2 counts) , 1000 ~ 9999W

+ Apparent Power (VA)

Resolution: 0.01VA; 0.1VA; 1VA

Accuracy

± (1% of reading + 7 counts) , 0.20 ~ 99.99VA
± (1% of reading + 7 counts) , 100.0 ~ 999.9VA
± (1% of reading + 5 counts) , 1000 ~ 9999VA

+ Power Factor

Range: 0.000~ 1.000

Resolution: 0.001

Accuracy: ±2% reading + 2 counts

General GW Instek APS-7100

Remote output signal: Pass, Fail, Test-in Process, Trigger in, Trigger out, OUT ON/OFF

Sync output signal: Output Signal 10 V, BNC Type

Number of Preset: 10 (0~9 numeric keys)

Protection: OCP, OPP, OTP and Alarm

Trigger Out: Maximum low level output = 0.8V; Minimum high level output = 2V; Maximum source current = 8mA.

Trigger In: Maximum low level input voltage = 0.8V; Minimum high level input voltage = 2.0V; Maximum sink current = 8mA.

SEQUENCE / SIMULATION FUNCTION

Number of Memories: 10 (0~9 numeric keys)

Number of Steps: 255 max. (for 1 sequence)

Step Time Setting Range: 0.01 ~ 999.99 S

Operation within Step: Constant, Keep, Linear Sweep

Parameters: Ouptut Range, Frequency, Waveform (sine wave only), On Phase, Off Phase, Term Jump Count (0 ~255), Jump-to, Branch 1, Branch 2, Trigger Output

Sequence Control: Start, Stop, Hold, Continue, Branch 1, Branch 2

AC Input

Phase: Single Phase

Input Voltage: 115/230Vac ± 15%

Input Frequency: 50/60Hz

Max. Current: 32A/16A

Power Factor: 0.7 Typ.

Enviromental Conditions

Operating temperature range: 0 ~ +40 °C

Storage temperature range: -10 ~ +70 °C

Operating humidity range: 20 ~ 80% RH (no condensation)

Storage humidity range: 80% RH or less (no condensation)

Interface

Standard: USB Host, LAN

Optional: GPIB (APS-001) RS232 / USB CDC (APS-002)

Dimensions & Weight

Dimensions(mm) (WxHxD): 430x89x560

Weight: 38Kg

Product specifications are subject to change without notice. The Specifications are not suit for ARB mode.

*1 Maximun output current at working voltage 120Vrms, 240Vrms
*2 45 to 500Hz, 10% or higher of the rated output voltage, the maximum current or lower *3 All of measurement accuracy is at 23±5°C
*4 In the case of 15 to 155V, 30 to 310V, sine wave, no load
*5 Maximun output current at working voltage 480Vrms
*6 In the case of 60 to 600V, sine wave, no load
*7 45 to 999.9Hz, 10% or higher of the rated output voltage, the maximum current or lower

Introduction GW Instek APS-7100 AC Power Sources

GWInstek APS-7100 AC power sources programmable linear , which consists of 1000VA. GW Instek APS-7100 features power characteristics from its linear structure design including low noise, low THD, and highly stabilized power output that are ideal for the product development and verification of input power with low noise requirement or stereo, video and audio device applications, etc. The maximum rated voltage is 0~ 310Vrms, 25.2Arms, 100.8A peak current and the output frequency range is 45~500.0Hz. Users can conveniently augment the output voltage from 0Vrms to 600Vrms and output frequency from 45Hz to 999.9Hz by purchasing options without sending equipment back to GW Instek.

Features GW Instek APS-7100

  • 4.3-inch TFT-LCD
  • Output capacity: APS-7100 (1000VA、310Vrms、8.4Arms);Output augmentation by options (0~600Vrms/45~999.9Hz)
  • Low Ripple & Noise
  • Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF
  • Support a small AC current measurement 2mA ~ 35A, Min. resolution 0.01mA(APS- 7050& APS-7100)
  • Reverse Current Alarm Function
  • 10 sets of Sequence function to Edit Output Waveforms/ 10 sets of simulate mode to Rapidly Simulate Transient Power Supply/ 10 sets of Program mode to Define Measurement Sequence/ 10 sets of Panel Memory Function
  • Automatic Execution of Sequence、Simulate、Program mode and Output Function when the Power is on
  • Optional Interfaces: GPIB (APS-001);RS-232 / USB CDC(APS-002 for APS-7050 & APS-7100 only)
