SPECIFICATIONS EXTECH GRT300 4-WIRE EARTH GROUND RESISTANCE TESTER
Earth Ground Resistance ranges: 20Ω/ 200Ω/2000Ω
Basic Accuracy: ±(2%rdg+2d)
Resolution: 0.01Ω/ 0.1Ω/1Ω
Test Current / Frequency: <2.5mA / 820Hz
AC Earth Voltage / Frequency: 0 to 200VAC / 50 to 400Hz
DC Voltage: 0 to 1000V
Resistance: 0 to 200kΩ
Power supply: Six 1.5V ‘AA’ Batteries
Dimensions: 7.9 x 3.6 x 2″ (200 x 92 x 50mm)
Weight: 1.5lbs (700g) (meter only)

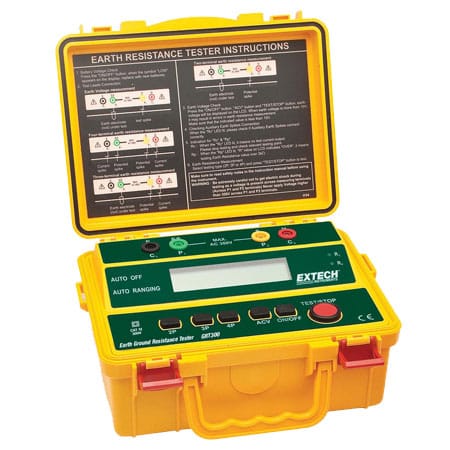

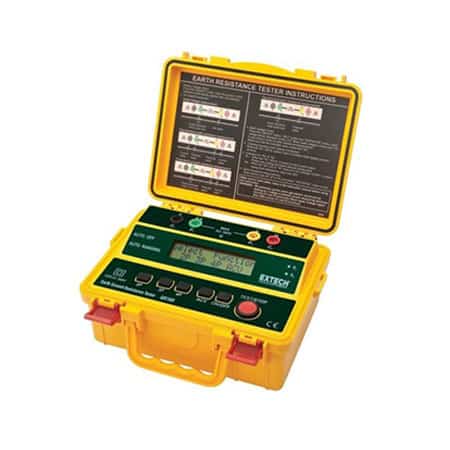

Introduction Extech GRT300
Includes all hardware necessary to measure earth ground in 3 ranges from 20 to 2000Ohm

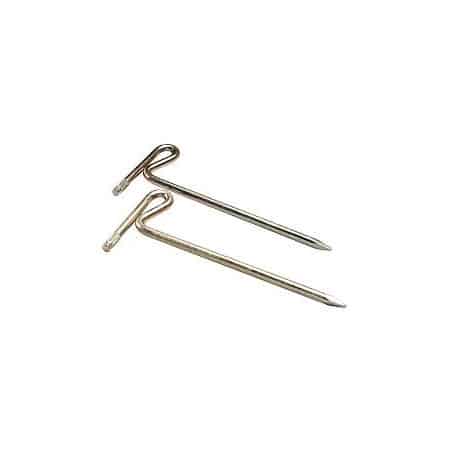

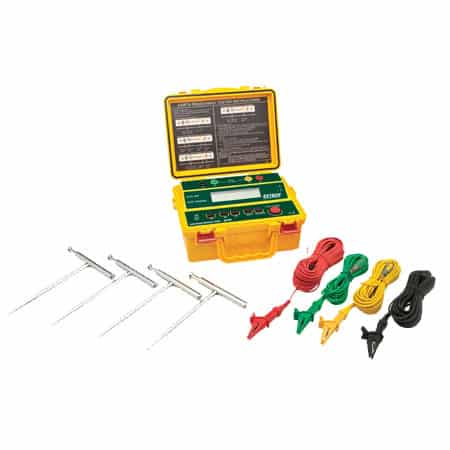

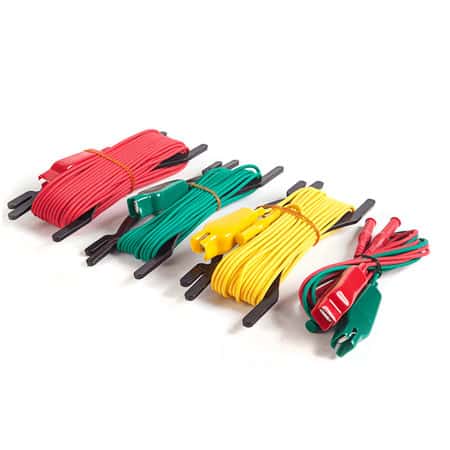

The 382252 is an Earth Ground Resistance Tester Kit which includes all hardware necessary to measure earth ground in 3 ranges from 20 to 2000 omega. Also tests AC/DC Voltage, resistance and continuity. Featuring Automatic zero adjustment and three earth ground resistance ranges 20Ω/200Ω/2000Ω. Complete with test leads, 2 auxiliary earth bars, carrying case, protective rubber holster and six 1.5V AA batteries.
Features Extech GRT300
– Microprocessor controlled with advanced safety features
– Two line LCD display
– Auto-Ranging (Extech GRT300)
– Earth resistance testing with four ranges: 0-2Ω/0-20Ω/0-200Ω/0-2kΩ
– Earth voltage measuring range of 0-300Vac
– Automatic C spike check.
– Automatic P spike check.
– 2-wire test
– 3-wire test
– 4-wire test
– Auto power off
– Data hold
– Safety standard: EN 61010-1 CATIV 300V, EN 61326-1
