Elcometer MTG2-TXC Ultrasonic Material Thickness Gauges

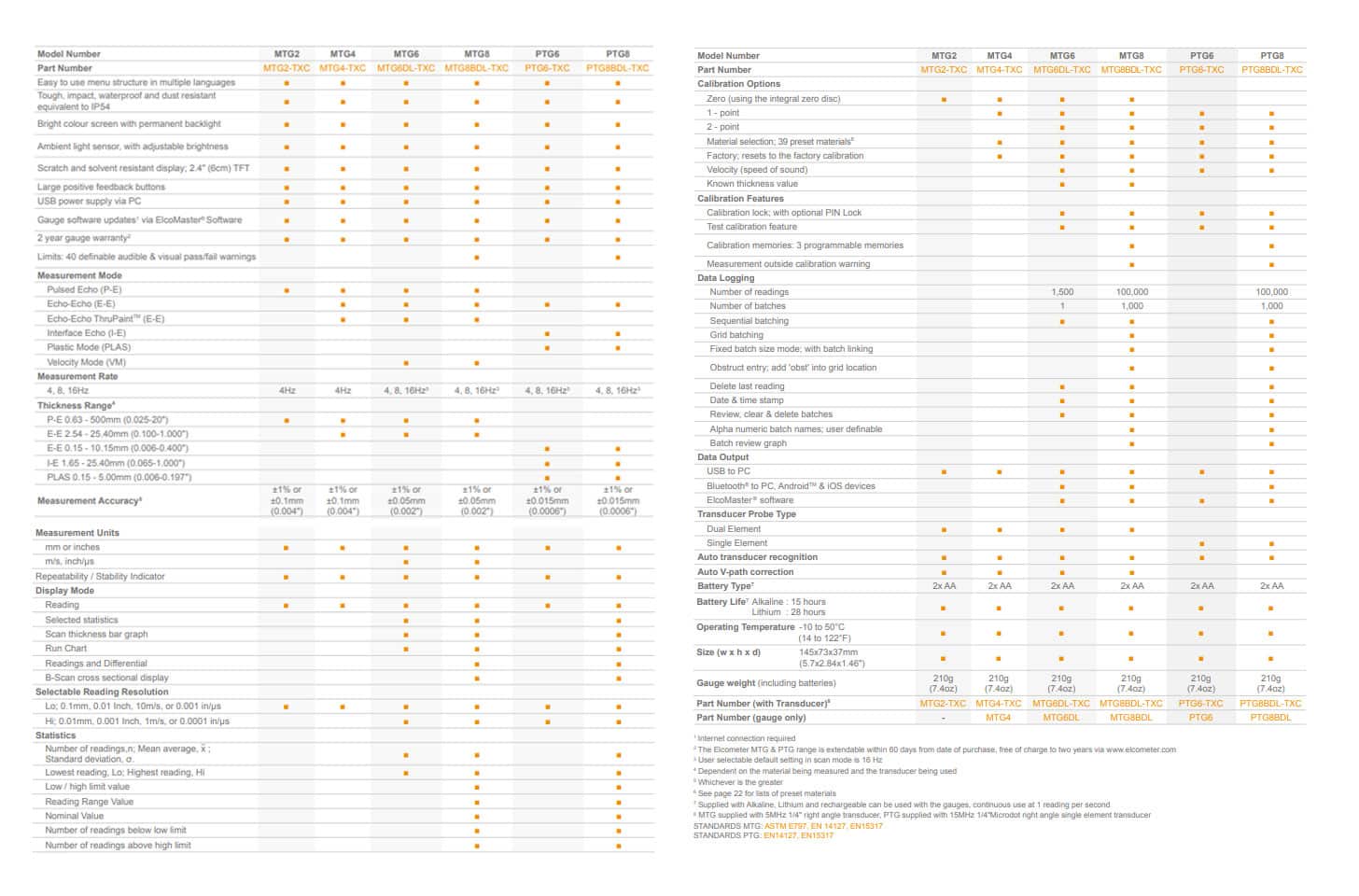

SPECIFICATION ELCOMETER MTG2-TXC ULTRASONIC MATERIAL THICKNESS GAUGE

Introduction Elcometer MTG2-TXC Ultrasonic Material Thickness Gauges

With automatic transducer recognition, which ensures correct probe identification even when the transducer is changed, a measurement rate of 4Hz (4 readings per second) and integral zero disc, ensuring maximum accuracy of ±1%, Elcometer MTG2-TXC is ideal for taking basic thickness measurements.

Elcometer MTG2-TXC is supplied complete with 5MHz, ¼” transducer and is pre-calibrated for measuring on steel only with a thickness range of up to 500mm (20”) in Pulsed-Echo (P-E) mode. Elcometer MTG2-TXC Ultrasonic Material Thickness Gauge has tough, impact, waterproof and dust resistant equivalent to IP54

Compatible with ElcoMaster ® software, individual readings can be downloaded via USB to PC or similar device for further analysis.

The MTG2-TXC range of ultrasonic thickness gauges has been designed specifically to make them easy to use, calibrate, take readings and create inspection reports

Features Elcometer MTG2-TXC Ultrasonic Material Thickness Gauges

• Pulsed -Echo (P-E) measurement Mode
• Pre-calibrated for measuring on steel only
• Preset measurement rate of 4 readings per second
• USB data output to PC or similar device
• Has Tough, impact, waterproof and dust resistant equivalent to IP54
• Has bright colour screen with permanent backlight
• Has scratch and solvent resistant display; 2.4″ (6cm) TFT
• Has large positive feedback buttons
