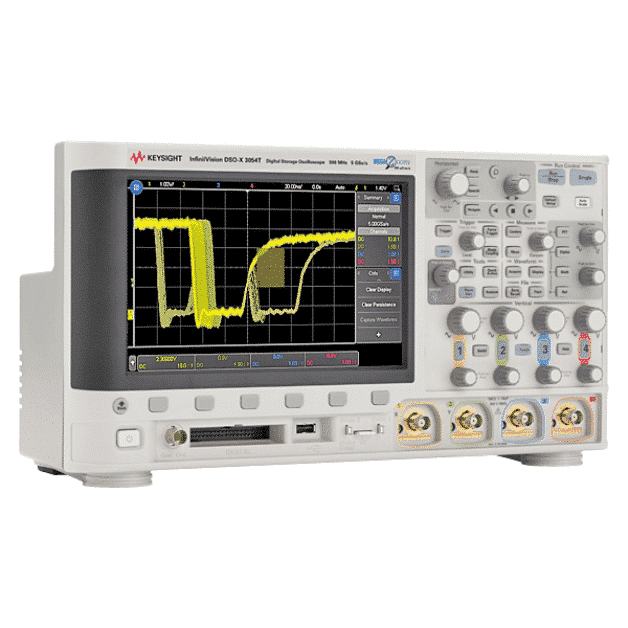

DSOX3054T Keysight Oscilloscope

SPECIFICATIONS DSOX3054T Keysight Oscilloscope

General technical data:
Bandwidth:	500 MHz
Calculated rise time (10 to 90%):	≤ 700 ps
Input channels:	4
Maximum sample rate:	5 GSa/s half channels, 2.5 GSa/s all channels
Maximum memory depth:	4 Mpts half channels, 2 Mpts all channels
Display size and type:	8.5-inch capacitive touch gesture-enabled display
Waveform update rate:	> 1,000,000 waveforms per second
Connectivity:	Standard ports: USB 2.0 (thiết bị, máy chủ), LAN (10/100Base-T), Video out WVGA Optional ports: GPIB, LAN (10/100Base-T), WVGA video out Trigger out: BNC connector on the rear panel. Supported modes: triggers, mask, and waveform generator sync pulse



Vertical System Analog Channels:
Hardware bandwidth limits:	20 MHz (selectable)
Input coupling:	AC, DC
Input impedance:	Selectable: 1 MΩ ± 1% (14 pF), 50 Ω ± 1.5%
Input sensitivity range:	100 MHz ~ 500 MHz models: 1 mV/div to 5 V/div 2 (1 MΩ and 50 Ω) 1 GHz models: 1 mV/div to 5 V/div 2 (1 MΩ), 1 mV/div to 1 V/div (50 Ω)
Vertical resolution:	8 bits (measurement resolution is 12 bits with averaging)
Maximum input voltage:	135 Vrms; 190 Vpk



Horizontal System Analog Channels
Time base range:	1 ns/div to 50 s/div
Time base accuracy:	± 1.6 ppm + aging factor (1st year: ± 0.5 ppm, 2nd year: ± 0.7 ppm, 5 years: ± 1.5 ppm, 10 years: ± 2.0 ppm)
Time base delay time range:	Pre-trigger: Greater of 1 screen width or 250 μs Post-trigger: 1 s to 500 s
Channel-to-channel deskew range:	± 100 ns



Vertical System Digital Channels
Digital input channels:	16 digital (D0 to D15. pod 1: D7 ~ D0, Pod 2: D15 ~ D8)
Threshold:	Threshold per pod
Threshold selections:	TTL (+1.4 V), 5 V CMOS (+2.5 V), ECL (–1.3 V), user-defined (selectable by pod)
Maximum input voltage:	± 40 V peak CAT I
Threshold accuracy:	± (100 mV + 3% of threshold setting)
Maximum input dynamic range:	± 10 V about threshold
Minimum voltage swing:	500 mVpp
Input impedance:	100 kΩ ± 2% at probe tip
Input capacitance:	~8 pF
Vertical resolution:	1 bit



Horizontal System Digital Channels
Minimum detectable pulse width:	5 ns
Channel-to-channel skew:	2 ns (typical); 3 ns (maximum)



Trigger System
Trigger modes:	Normal, Auto, Single, Force
Trigger coupling:	DC, AC, LF Reject, HF Reject, Noise Reject
Trigger holdoff range:	40 ns to 10.00 s



Digital Voltmeter (specifications are typical)
Functions:	ACrms, DC, DCrms
Resolution:	ACV/DCV: 3 digits
Measuring rate:	100 times/second



WaveGen – Built-in Function/Arbitrary Waveform Generator
Waveforms:	Sine, Square, Ramp, Pulse, DC, Noise, Sine Cardinal (Sinc), Exponential Rise, Exponential Fall, Cardiac, Gaussian Pulse, and Arbitrary
Sine:	Frequency range: 0.1 Hz to 20 MHz
Square wave /pulse:	Frequency range: 0.1 Hz to 10 MHz
Ramp/triangle wave:	Frequency range: 0.1 Hz to 200 kHz
Noise:	Bandwidth: 20 MHz typical
Frequency:	Sine wave and ramp accuracy: 130 ppm (frequency < 10 kHz); 50 ppm (frequency > 10 kHz) Square wave and pulse accuracy: [50+frequency/200] ppm (frequency < 25 kHz); 50 ppm (frequency ≥ 25 kHz) Resolution: 0.1 Hz or 4 digits, whichever is larger
DC offset:	Range: ± 2.5 V into Hi-Z; ± 1.25 V into 50 Ω Resolution: 100 μV or 3 digits, whichever is higher Accuracy (DC mode): ± 1.5% of offset setting ± 3 mV
Amplitude:	Range: 20 mVpp to 5 Vpp into Hi-Z; 10 mVpp to 2.5 Vpp into 50 Ω Accuracy: 2% (frequency = 1 kHz)



Waveform Math
Arithmetic:	Add, subtract, multiply, divide, differentiate, integrate, FFT, Ax + B, squared, square root, absolute value, common logarithm, natural logarithm, exponential, base 10 exponential, low pass filter, high pass filter, averaged value, smoothing, envelope, magnify, max hold, min hold, measurement trend, chart logic bus (Timing or State), chart serial signal (CAN, CAN FD, LIN, and SENT)
FFT:	Window: Hanning, Flat Top, Rectangular, Blackman-Harris, Bartlett – up to 64 kpts resolution

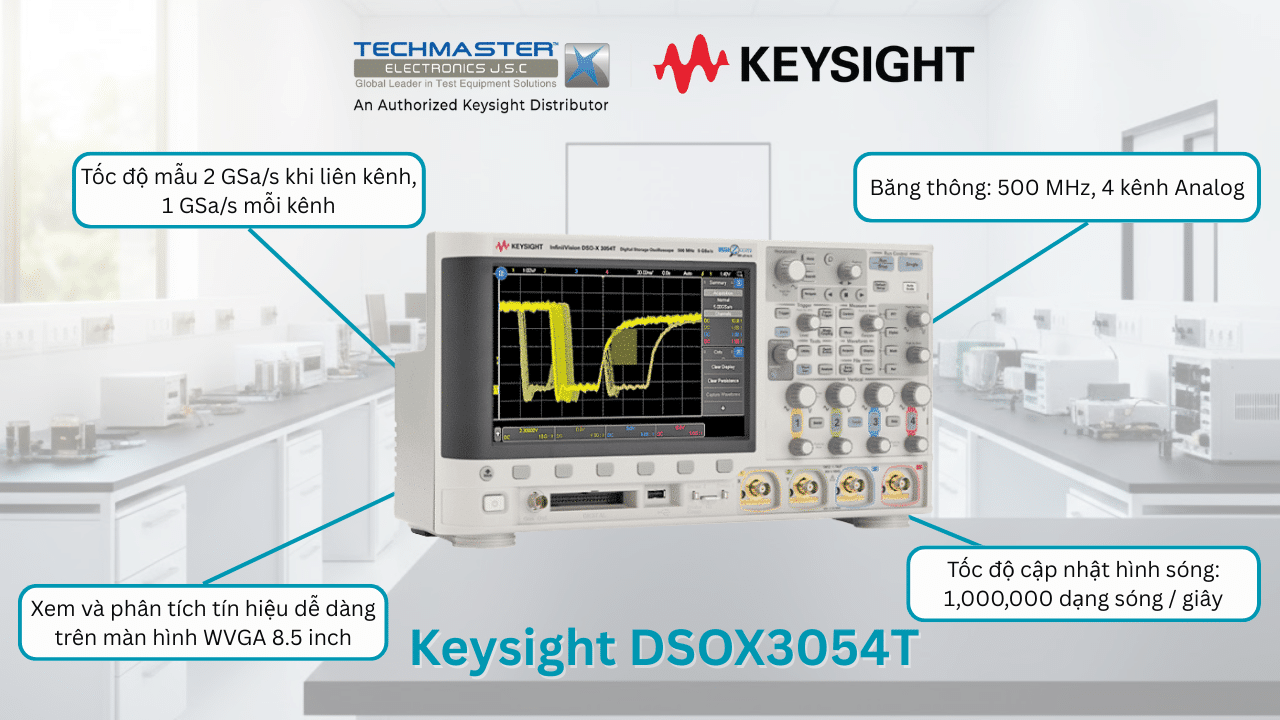

The Keysight DSOX3054T Oscilloscope Overview

The Keysight DSOX3054T oscilloscope offers 500 MHz bandwidth, a 5 GSa/s sampling rate, and up to 4 Mpts memory for precise and efficient signal analysis. With an industry-leading waveform update rate of over 1,000,000 waveforms per second, the DSOX3054T ensures users can capture and analyze even the most elusive signal anomalies. Ideal for applications in electronics, telecommunications, automation, and educational research, this oscilloscope delivers reliable performance and advanced features to meet the needs of both professionals and students.

Measurement functions of the Keysight DSOX3054T oscilloscope

The DSOX3054T oscilloscope provides precise measurement capabilities with real-time sampling at 5 GSa/s and a waveform update rate exceeding 1 million waveforms per second. These specifications enable users to observe and analyze rapidly changing signals with high accuracy. Its 500 MHz bandwidth supports a wide range of measurements, making it suitable for research, development, education, and industrial testing applications.

User-friendly and intuitive design

Equipped with an 8.5-inch capacitive touchscreen, the Keysight DSOX3054T offers an intuitive user interface optimized for touch gestures. Features like Auto Scale and Zone Triggering simplify signal acquisition and analysis, significantly reducing setup time. The customizable dockable panels and clear menu structure allow users to quickly access tools and adjust parameters, enhancing productivity and ease of use.

Powerful analysis tools

The Keysight DSOX3054T comes with a suite of advanced analysis tools, including:

• Automatic measurements for rapid insights into signal behavior.
• FFT analysis for detailed frequency-domain examination.
• Digital signal decoding for protocols like I²C, SPI, UART, and CAN.

These tools enable users to detect faults, optimize circuit designs, and evaluate signal integrity with confidence. The oscilloscope also supports data export and waveform image saving, simplifying reporting and collaboration.

Integrated WaveGen functionality

The built-in WaveGen generator provides a wide range of customizable waveform outputs, including sine, square, triangle, pulse, and arbitrary waveforms. With a frequency range of up to 20 MHz and modulation capabilities, WaveGen simplifies the simulation of real-world signals for testing and validation purposes.

Users can create, edit, and apply waveforms directly from the oscilloscope’s intuitive touchscreen interface, streamlining the process of signal generation and analysis.
