SPECIFICATIONS DC POWER SUPPLY – KEYSIGHT E36231A
General technical data |
|
| DC output rating (0 to 40°C) | Voltage: 0 to 30 V
Current: 0 to 20 A Power: 200 W |
Load regulation |
Voltage: < 0.01% + 2 mV
Current: < 0.01% + 250 uA |
Output ripple and noise (20 Hz to 20 MHz) |
Voltage (20 Hz to 20 MHz):
Vpp: < 4.5 mV Vrms: < 350 µV |
Programming accuracy |
Voltage: 0.03% + 4 mV
Current: 0.1% + 6 mA |
Readback Accuracy |
Voltage: 0.03% + 4 mV
Current: 0.1% + 6 mA |
| Load transient recovery time | Time to settle within a 15 mV band: < 50 µs |
| Advanced Features | Data logging, LIST mode, sequencing, low-range current measurement, adjustable voltage slew rate |
| Interfaces | USB, LAN (LXI Core), and optional GPIB |
Display |
4.3-inch LCD color display with color-coded channels |
Weight |
5.8 kg |
| Dimensions | 136.2 x 216.5 x 388.4 |
| Environmental Conditions | Operating Temperature: 0 °C to 40 °C
Humidity: 80%RH at temperature up to 40 ºC; non-condensing |

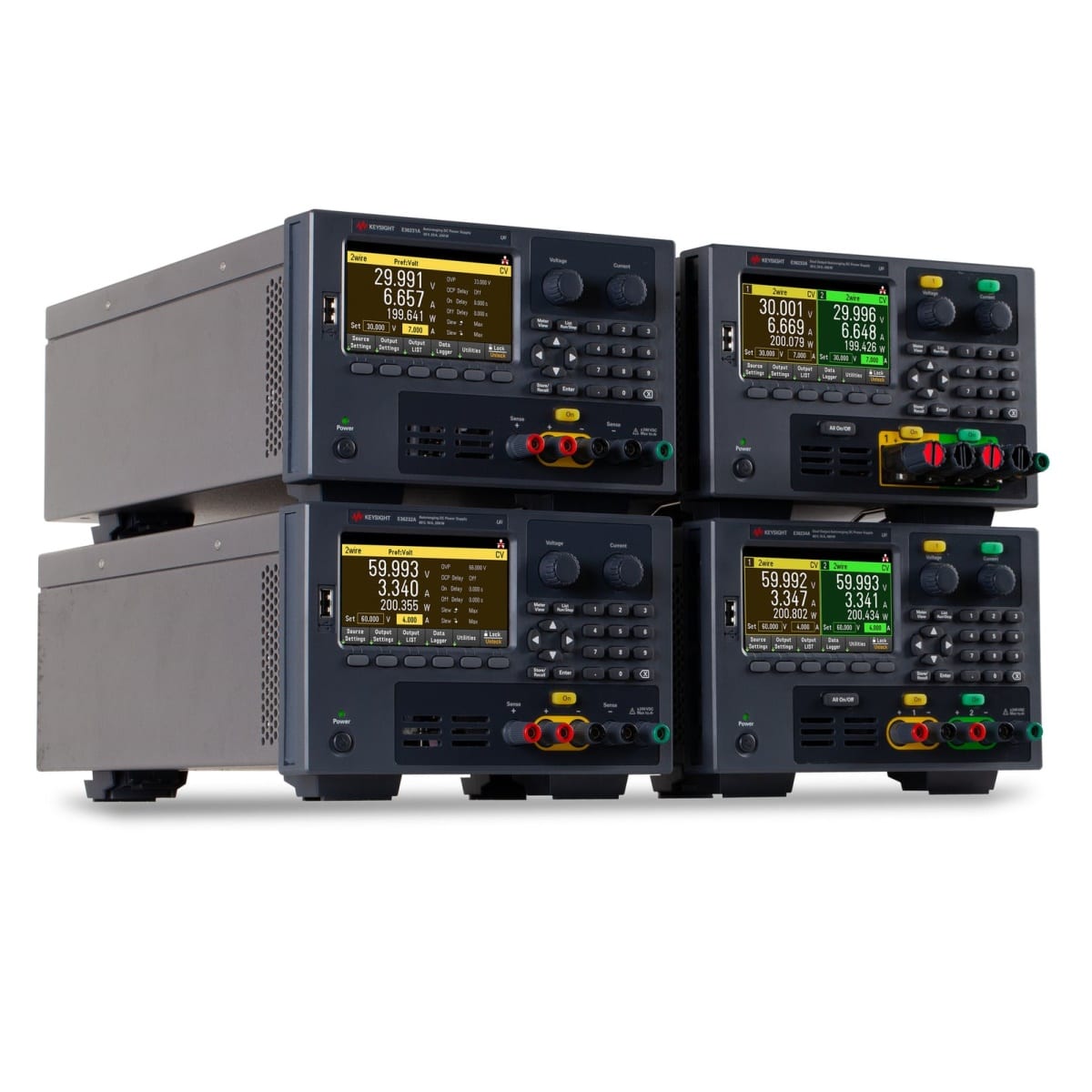

E36231A 200W Autoranging Power Supply, 30V, 20A
The Keysight E36231A autoranging DC power supply delivers 200 W of clean, regulated power with an output range of 0 to 30 V and 0 to 20 A, making it ideal for high-current applications in R&D labs and production testing. With advanced autoranging technology, the E36231A provides maximum current across the entire voltage range without sacrificing accuracy. It features low ripple and noise (< 350 µVrms), fast transient response (< 50 µs), and excellent load/line regulation (< 0.01%), ensuring stable performance under dynamic conditions. The supply includes SCPI programming support, USB, LAN, and optional GPIB interfaces, and a 4.3-inch color LCD for intuitive control. Built-in features such as data logging, LIST mode, and adjustable slew rate enhance flexibility and test automation. With 4-wire remote sensing, overvoltage/current protection, and BenchVue software compatibility, the E36231A is a smart, reliable solution for engineers who demand precision and safety.
What is the Keysight E36231A used for?
Stable test power supply
Load simulation and testing
Power consumption and efficiency measurement
Keysight E36231A — frequently asked questions
Where can I buy a genuine Keysight E36231A in Vietnam?
How much does the Keysight E36231A cost?
Is the Keysight E36231A covered by warranty and calibration?
Request a quote for the DC Power Supply – Keysight E36231A
Techmaster engineers advise on the configuration and quote the same day.
