Specifications 1″ Drive CDI Adjustable Torque Wrench – CDI10005MFRMH
Description

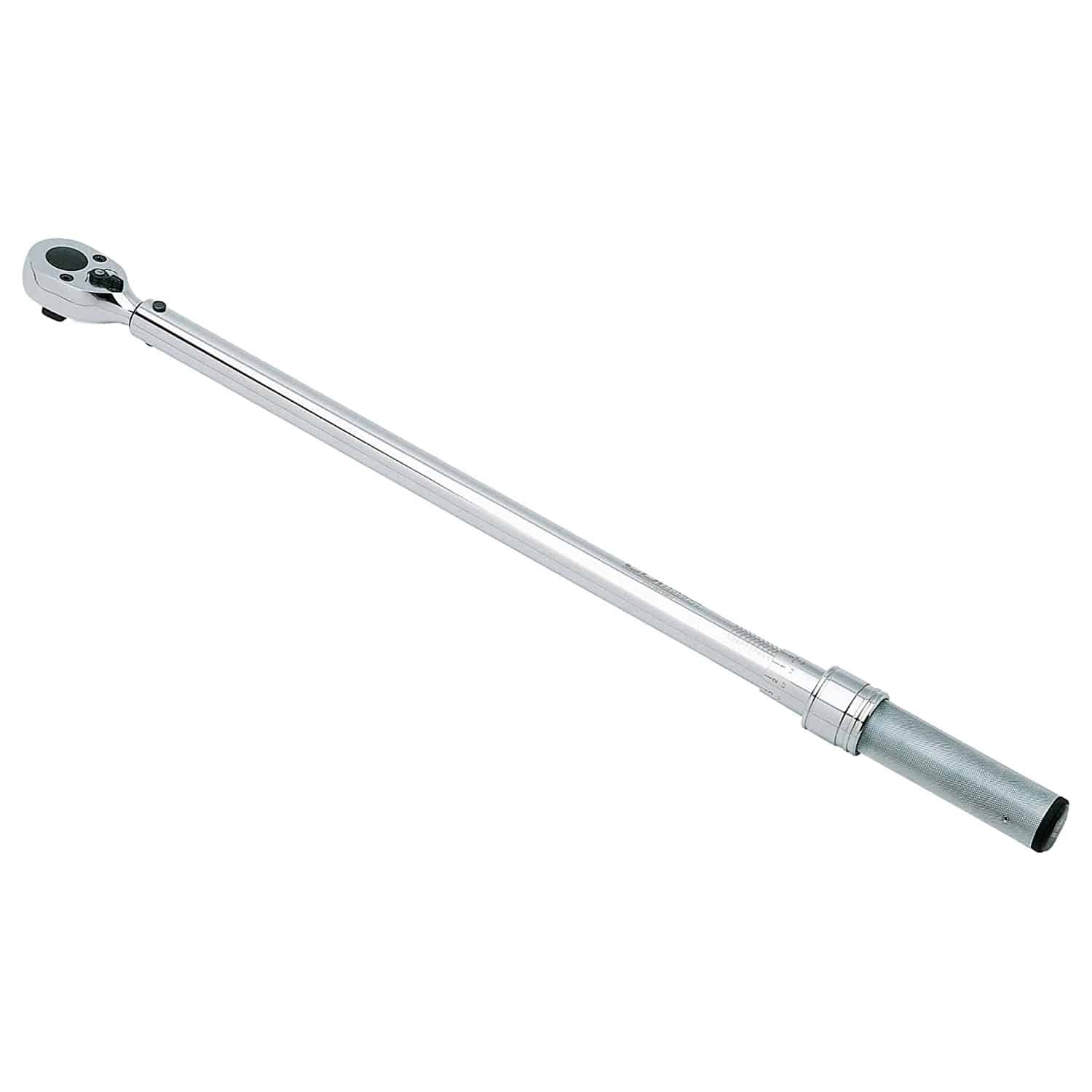

The CDI 10005MFRMH Micrometer Adj Torque Wrench Dual Scale has a 1″ Drive and an English range of 200-1000 Ft Lbs and Metric range of 305-1322 Nm. The metal handle series offers the user a rugged, industrial strength torque wrench able to withstand the rigors of professional use and all of CDI’s click torque wrenches are calibrated for use in both direction.
Features
1″ Drive Torque Wrench Features:
– Handles are lightly knurled for a tough, non-slip grip.
– Dual scale, calibrated dual direction
– Positive lock with spring-loaded pull down lock ring
– 1 inch drive torque wrench is fast, accurate, and easy to set
– Easy-to-read laser-marked scales
– Most feature quick-release buttons which provide good socket retention as well as easy socket removal
– Accuracy: ± 3% clockwise ± 4% CCW of indicated value, CW, from 20% to 100% of full scale
– Meets or exceeds ASME B107.14-2004, ISO 6789 standards
– Individually serialized with matching certificate of calibration traceable to N.I.S.T.
– Drive: 1″
– English Range: 200-1000 ft lb
– English Range Increments: 5
– Nm Range: 305-1322
– Nm Increments: 6.8
– A In.: 70
– B In.: 3
– C In.: 3
– D In.: 1.5
– Wt. Lbs: 25.1
