SPECIFICATIONS TECHNICAL ARC SAT1000 SUB ARC tractor, wire feeder & controller
| Welding current range | 100-1200A |
| Duty cycle | 1000A@100% |
| Welding wire dia range | 1.6-6.0mm |
| Wire drive system | 4 roll geared |
| Wire feed speed range | 0.3-5 or 0.5-9M/min |
| Tractor speed range | 10-150cm/min |
| Approx weight | 52kg |
| Power supply | 110V/42V/24V – state at time of order. |
Introduction Technical ARC SAT1000 SUB ARC tractor, wire feeder & controller

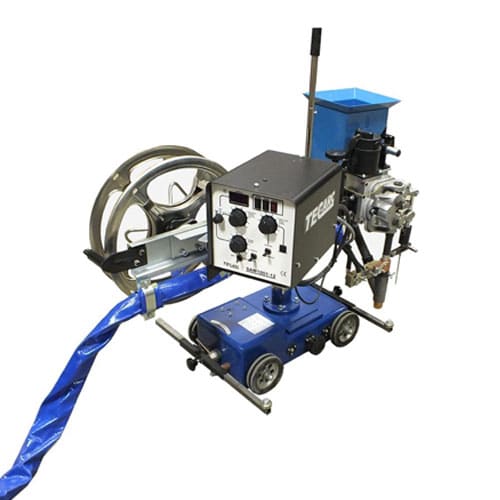

The Technical ARC SAT1000 comprises the tractor unit onto which is mounted the cross beam which supports the wire reel holder, the control box and the welding head. The welding head is 4 roll drive for reliable feeding of the welding wire & can feed all sizes from 1.6mm up to 6.0mm wire, the welding head can be moved in all directions to allow for many different welding positions, & can be angled from 0 – +/-45 degrees. Adjustable slides are fitted for height & lateral adjustment.
Standard supply, options & accessories
Standard supply; Welding tractor with flux hopper, wire feeder & welding torch & electronic controller with digital display.
Options include; Input voltage & control to suit almost any power source. Supply of above without tractor for boom arm mounting. Supply of control cables & welding cables up to 100M. Guide rails fitted to tractor to follow beam edge etc.
Accessories include; Wire drive rollers & parts, contact tips & flux nozzles etc.
