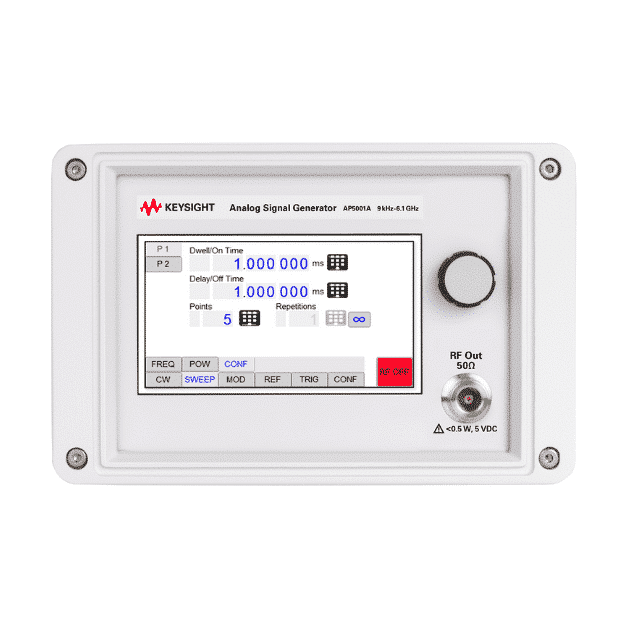

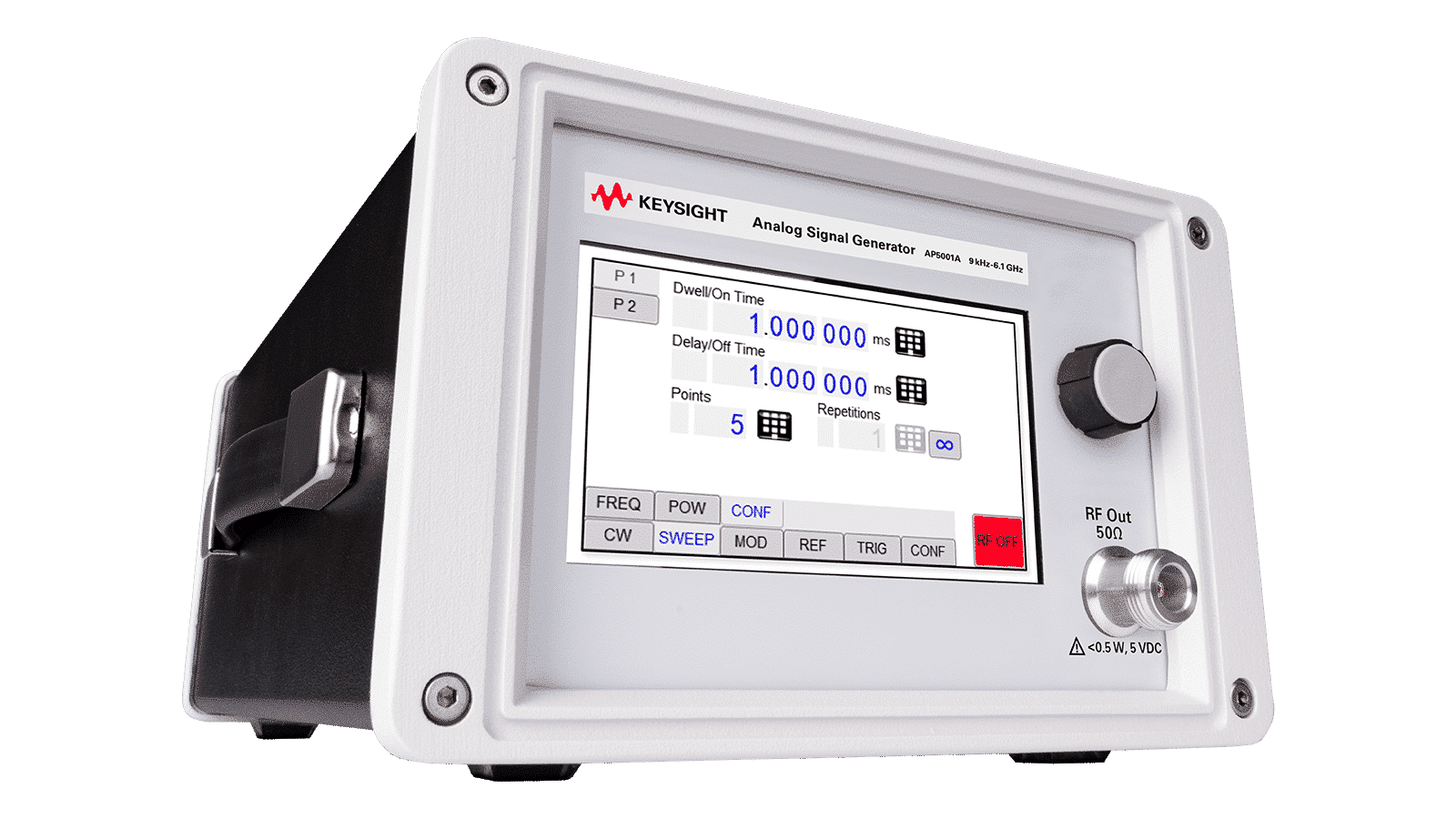

RF Analog Signal Generator - Keysight AP5001A

RF Analog Signal Generator – Keysight AP5001A

Call for Price

Features:

Frequency: 6.1 GHz
Output Power at 1 GHz: – 30 to + 17 dBm
Frequency Switching (Typical): 20 µs
Harmonics at 1 GHz: – 40 dBc
Phase Noise at 1 GHz (20 kHz offset): – 130 dBc/Hz
Type: Analog

SPECIFICATIONS RF ANALOG SIGNAL GENERATOR – KEYSIGHT AP5001A

General technical data:
Frequency range	9 kHz to 2, 4 or 6.1 GHz
Resolution	0.001 Hz (typical)
Settling time	20 μs (typical) 200 μs (max)
Modulation capabilities	AM, FM, PM, Pulse, Frequency chirps
Frequency switching speed:	200 µs
Harmonics at 1 GHz	-30 dBc -40 dBc (typical)
Non-harmonics at 1 GHz	-55 dBc -65 dBc (typical)
Output power range	-30 to +17 dBm -120 to +17 dBm (Option 1E1)
Phase noise at 1 GHz, 20 kHz offset	-128 dBc / Hz -130 dBc / Hz (typical)

High-Performance RF Signal Generation for Precision Testing

The Keysight AP5001A RF Analog signal generator is a cutting-edge instrument designed for accurate and versatile RF signal generation across a broad frequency range from 9 kHz to 6.1 GHz. Engineered to meet the demands of telecommunications, aerospace, defense, and RF component testing industries, the AP5001A delivers exceptional performance with advanced features that ensure precise, stable, and high-quality signal output.

Key Features of the Keysight AP5001A:

Wide frequency range. The AP5001A covers frequencies from 9 kHz to 6.1 GHz, making it ideal for a variety of RF applications. (from low-frequency testing to high-frequency wireless communication systems).

Superior signal purity. With low phase noise up, the generator ensures clean, stable signals that are crucial for accurate measurements, high-performance testing environments.

Flexible modulation capabilities. Supports a wide range of modulation types including AM (Amplitude Modulation), FM (Frequency Modulation), PM (Phase Modulation), and pulse modulation, enabling comprehensive signal simulation for complex test scenarios.

Fast frequency switching. Boasting a frequency switching speed of ≤400 µs, the AP5001A facilitates rapid signal changes, enhancing productivity in automated testing environments.

High output power and precision: Offers an impressive output power range of up to +30 dBm with optional attenuators and a fine 0.01 dB resolution, providing flexibility and precision for diverse testing requirements.

Advanced sweep Functions: Equipped with frequency, power, and list sweep functions, the AP5001A allows for dynamic signal analysis and comprehensive RF characterization.

Compact and Lightweight Design: Weighing just 2.5 kg, the AP5001A is highly portable, making it suitable for both lab-based research and field testing.

Seamless Connectivity: Features USB, LAN, and support for SCPI commands, ensuring easy integration into automated test systems and remote control setups.
