Máy phân tích tín hiệu - Keysight N9020B

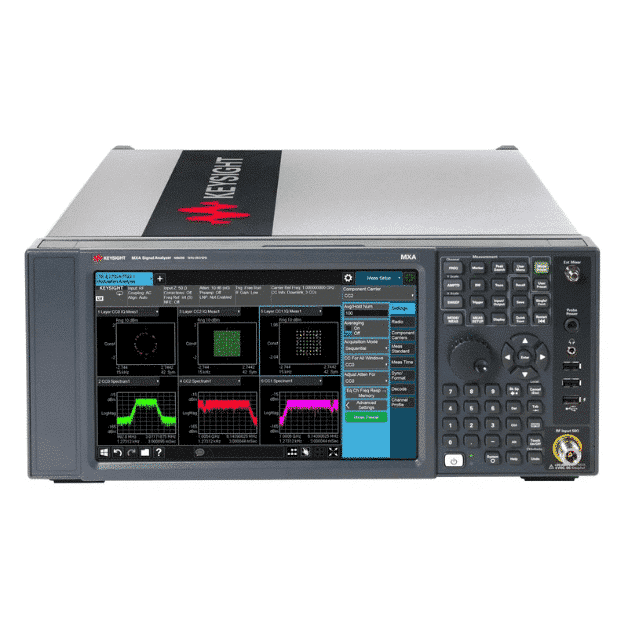

MXA Signal Analyzer – Keysight N9020B

Call for Price

More features

See more with a wide frequency range of 10 Hz to 50 GHz with up to 160 MHz analysis bandwidth
Shorten test times with hardware-accelerated power measurements, rapid display updates, rapid marker peak searches, and fast sweeps
Get complete signal characterization by capturing longer I/Q samples
Accurately analyze complex signals with EVM as low as 0.3 percent (–50 dB)
Simplify testing with one-button measurements using PathWave X-Series measurement applications
Capture elusive or transient signals with full-band real-time spectrum analysis

SPECIFICATIONS MXA SIGNAL ANALYZER – Keysight N9020B

General technical data
Frequency range	Option 503: 10 Hz to 3.6 GHz Option 508: 10 Hz to 8.4 GHz Option 513: 10 Hz to 13.6 GHz Option 526: 10 Hz to 26.5 GHz
Dynamic range	Displayed average noise level (DANL): RF/MW (Preamp off): -154 dBm at 10 MHz to 2.1 GHz Preamp on: -166 dBm at 10 MHz to 2.1 GHz
Amplitude accuracy	±0.33 dB at 50 MHz (standard configuration)
Analysis bandwidth	Standard: 25 MHz
Phase noise	At 1 GHz, 10 kHz offset: -116 dBc/Hz (typical)
Sweep and Trigger	Sweep time (zero span): 1 μs to 6000 s Trigger Modes: Free run, external, video, RF burst, frequency mask,…
Interfaces	RF Input: Type-N or 2.4 mm female connectors (depending on frequency range) USB Ports: USB 2.0 and 3.0 (Type A and B) LAN: RJ45 Ethernet GPIB and VGA compatibility
Display control	10.6-inch capacitive multi-touch display Resolution: 1280 x 768 pixels
Weight	18 to 20 kg (depending on options)
Dimensions	177 mm (H) x 426 mm (W) x 368 mm (D)
Power requirements	Voltage: 100/120 V (50/60/400 Hz) or 220/240 V (50/60 Hz) Maximum Power: 465 W

Keysight N9020B MXA Signal Analyzer: High-Performance RF Analysis

The Keysight N9020B is a high-performance, versatile tool designed for advanced signal analysis across a wide frequency range. Its capabilities make it an essential instrument for research, development, manufacturing, and troubleshooting of RF and microwave systems. With multi-touch controls and powerful measurement tools, the N9020B combines precision, speed, and user-friendly operation for complex testing environments.

The Keysight N9020B MXA combines cutting-edge features with user-friendly operation, delivering unmatched performance for RF and microwave signal analysis. Whether in a lab or production setting, it is an invaluable tool for achieving accurate, detailed, and efficient measurements.
