SPECIFICATIONS DC POWER MODULE – KEYSIGHT N6731B
General technical data |
|
| Output Ratings | Voltage: 0–5 V
Current: 0–10 A / 0–20 A Power: 50 W / 100 W |
Accuracy (at 23°C ±5°C) |
Voltage programming accuracy: 0.1% + 19 mV
Current measurement (readback) accuracy: 0.15% + 20 mA |
| Output Ripple & Noise | Constant voltage Peak-to-Peak: 10 mV / 20 mV
Constant voltage RMS: 2 mV Constant current RMS: 8mA |
| Load Regulation | Voltage: 5 mV
Current: 2 mA |
| Source Regulation | Voltage: 1 mV
Current: 1 mA |
| Programming Accuracy | Voltage: ±(0.1% + 19 mV)
Current: ±(0.15% + 20 mA) |
| Measurement Accuracy | Voltage: ±(0.1% + 20 mV)
Current: ±(0.15% + 20 mA) |
| Transient Response | Recovery Time: <200 µs for 50% to 100% load changes |
| Operating Temperature | 0°C to 40°C |
| Compatibility | Integrates with Keysight N6700 Modular Power System Family and N6705C Power Analyzer |

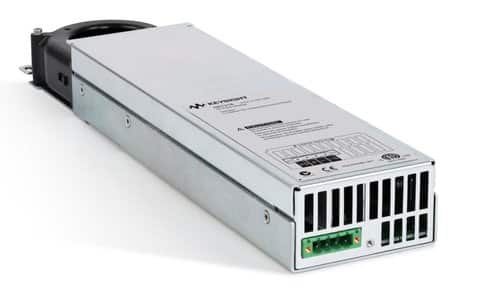

N6731B DC Power Module 0 to 5 V, 0 to 10 A, 50 W
The Keysight N6731B – DC Power Module is a compact and high-performance power supply designed for integration into the Keysight N6700 Modular Power System family. Offering precise control and measurement capabilities, it delivers up to 5 V and supports current outputs of up to 10 A or 20 A, with power levels of 50 W or 100 W. This module is ideal for testing and powering low-voltage devices and circuits in research, development, and manufacturing environments.
The N6731B provides excellent load and source regulation, with minimal ripple and noise for stable and reliable power delivery. With programming and measurement accuracy within ±0.1% for voltage and ±0.15% for current, it ensures accurate performance in sensitive applications. Its fast transient response of under 200 µs for load changes supports dynamic testing scenarios. Compatible with the N6705C Power Analyzer Mainframe, the N6731B enables extended functionality, such as waveform generation and data logging, making it a versatile solution for modern power test requirements.
What is the Keysight N6731B used for?
Stable test power supply
Load simulation and testing
Power consumption and efficiency measurement
Keysight N6731B — frequently asked questions
Where can I buy a genuine Keysight N6731B in Vietnam?
How much does the Keysight N6731B cost?
Is the Keysight N6731B covered by warranty and calibration?
