Mitutoyo QV Active CNC Vision Measuring System

Features

High-definition color imaging acquires images that are closer to the actual object, making it effective for specifying the measured portions of multicolor workpieces, visual inspection, and creating reports with color images.

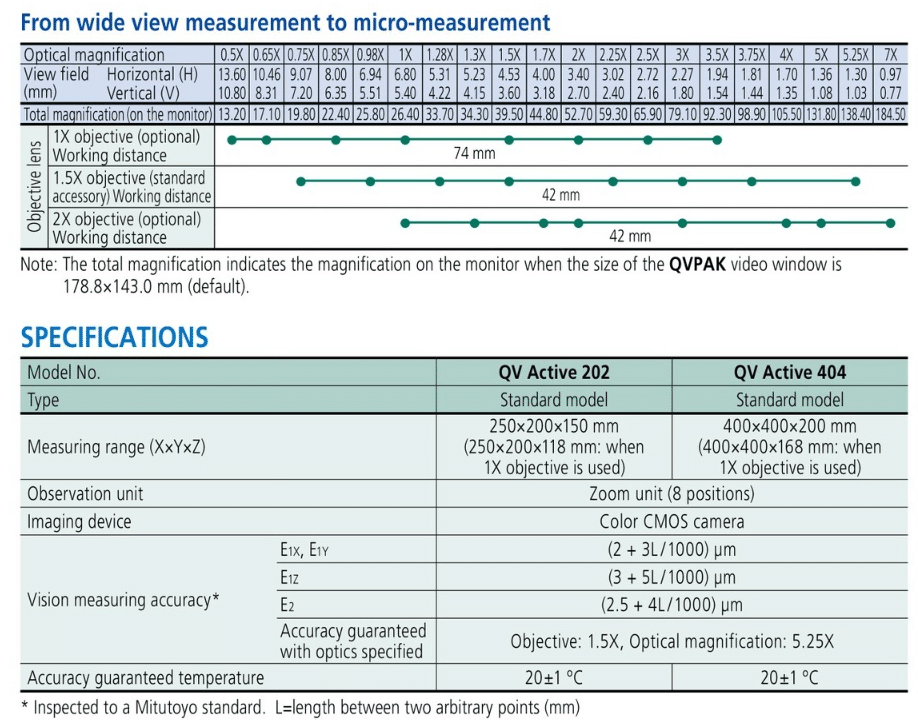

A zoom ratio of 7x (maximum zoom ratio of 14x through exchanging the objective lens) allows broad-based support from observation and simple measurement at low magnification to fine measurement at high magnification.
It achieves the industry’s largest operating distance of 74 mm with Z-Objective 1x installed. It reduces concerns about collision, increases freedom in workpieces and jig design, and improves the ease of use.

Mitutoyo QV Active CNC Vision Measuring System

Product Information

Manufacturer: Mitutoyo

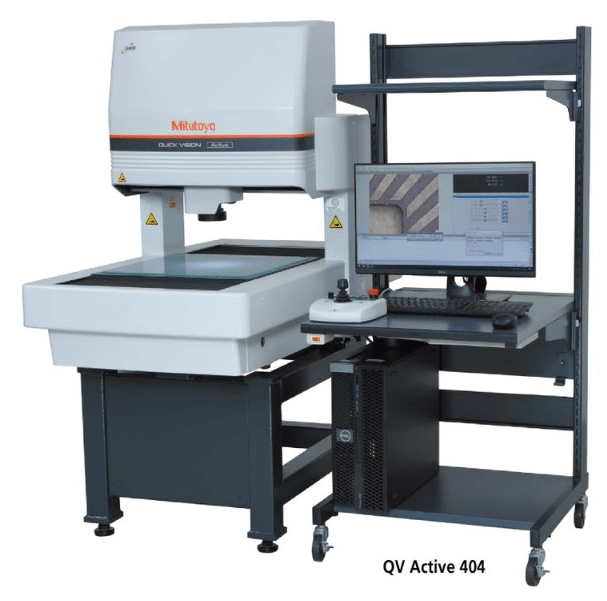

Model: QV Active 202, QV Active 404
Cost-effective, multifunction. Usability has been improved by adopting a color camera and 8-step zoom optics.

Quick Vision Active is a CNC Vision Measuring System that is easy to operate, high-performance, space-saving, and responds to various needs.

Features

High-definition color imaging acquires images that are closer to the actual object, making it effective for specifying the measured portions of multicolor workpieces, visual inspection, and creating reports with color images.
A zoom ratio of 7x (maximum zoom ratio of 14x through exchanging the objective lens) allows broad-based support from observation and simple measurement at low magnification to fine measurement at high magnification.
It achieves the industry’s largest operating distance of 74 mm with Z-Objective 1x installed. It reduces concerns about collision, increases freedom in workpieces and jig design, and improves the ease of use.
