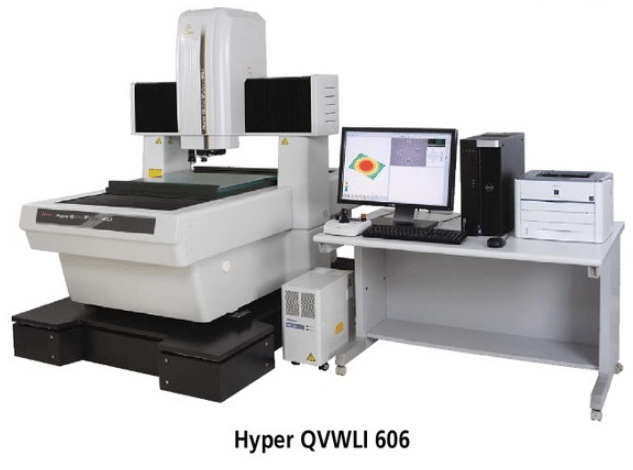

Mitutoyo Non-contact 3D Measuring System Hyper QV WLI

Hyper QVWLI is a Non-contact 3D Measuring System. It is a high-accuracy dual 3D measurement system consisting of QV and a white light interferometer (WLI).

Features

WLI optical system can capture 3D data to perform 3D surface texture analysis and 3D roughness analysis. You can also perform dimension measurement and cross-section measurement at a specific height using the 3D data.
The Point From Focus (PFF) function enables the 3D measurement with multi-cross-section images. Scanning the object by auto-focusing the objective lens can capture multiple cross-section images (image contrasts) at different heights. Thus obtaining 3D shape data from such images.

Description
Additional information

Mitutoyo Non-contact 3D Measuring System Hyper QV WLI

Product Information

Manufacturer: Mitutoyo

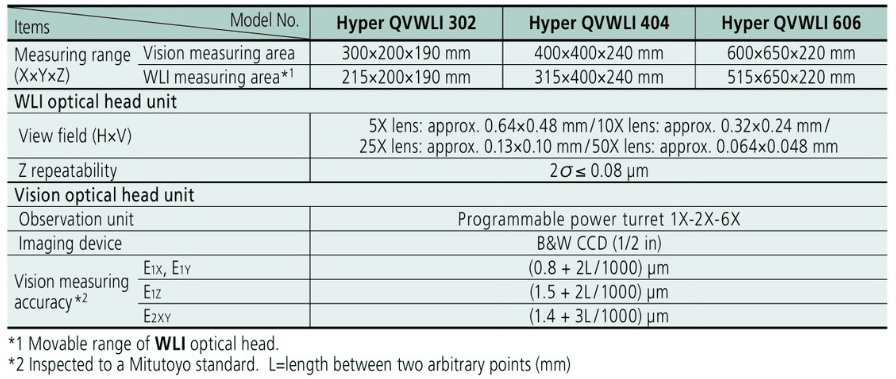

Model: Hyper QV WLI 302 / 404 / 606
The best-ever efficiency and accuracy are achieved by combining imaging with the WLI optical head.

Product Description

Hyper QVWLI is a Non-contact 3D Measuring System. It is a high-accuracy dual 3D measurement system consisting of QV and a white light interferometer (WLI).

Features

WLI optical system can capture 3D data to perform 3D surface texture analysis and 3D roughness analysis. You can also perform dimension measurement and cross-section measurement at a specific height using the 3D data.
The Point From Focus (PFF) function enables the 3D measurement with multi-cross-section images. Scanning the object by auto-focusing the objective lens can capture multiple cross-section images (image contrasts) at different heights. Thus obtaining 3D shape data from such images.
