Mitutoyo High-End CNC Rockwell Hardness Testing Machine HR 600 Series

Mitutoyo High-End CNC Rockwell Hardness Testing Machine HR 600 Series

Product Information

• Manufacturer: Mitutoyo
• Model: HR-610A, HR-620A, HR-620B
• A workpiece that cannot be placed on a tester due to its large size can be placed on the table of this product and tested as is. (Maximum loading mass 100 kg).

Product Description

Mitutoyo Rockwell Hardness Testing Machine HR 600 combines the functionality of two previous models: one for Rockwell hardness testing and the other for Brinell hardness testing. Supporting both test types on a single machine, this new series expands the range of available measurements.

• A workpiece that cannot be placed on a tester due to its large size can be placed on the table of this product and tested as is. (Maximum loading mass 100 kg).
• The motorized stage makes automatic multi-point testing at multiple places and of multiple workpieces possible.
• Plastic hardness testing is also available in addition to Rockwell/Brinell tests on metal. Brinell and Vickers indentation hardness tests which do not require vision measurement can also be performed.
• The HR-610A/620A main unit is operable with the touch panel display and the HR-620B is operable with the touch panel display and AVPAK software.
• Automatic testing with movement in the X-, Y- and Z-axis directions for a workpiece having uneven surfaces or steps becomes possible by adding an X-axis stage and AVPAK software to HR-620B. Also, using FORMEio software makes possible easy communication with PLCs for automation purposes, such as control of handling devices and work cells.

HR-610A

Standard Rockwell hardness testing machine model with moving head

Maximum table loading	100 kg
Maximum workpiece height	250 mm
Depth (from indenter center)	220 mm
Test force	29.42 – 1839 N (3 – 187.5 kgf)

HR-620A

Rockwell hardness testing machine with high added value that can measure micro-Brinell hardness and the hardness of plastics

Maximum table loading	100 kg
Maximum workpiece height	250 mm
Depth (from indenter center)	220 mm
Test force	9.807 – 2452 N (1 – 250 kgf)

HR-620B

Fully automatic multi-point Rockwell hardness testing machine with Y-axis stage mobility that can measure micro-Brinell hardness and the hardness of plastics, and also supports multi-point inspection

Maximum table loading	100 kg
Maximum workpiece height	250 mm (with X-axis stage: 165 mm)
Depth (from indenter center)	220 mm
Test force	9.807 – 2452 N (1 – 250 kgf)

HR-620B (PC Type)

The PC TYPE model allows users to view measurement data on large-screen PC monitors. Other features are the same as HR-620B.

Maximum table loading	100 kg
Maximum workpiece height	250 mm (with X-axis stage: 165 mm)
Depth (from indenter center)	220 mm
Test force	9.807 – 2452 N (1 – 250 kgf)

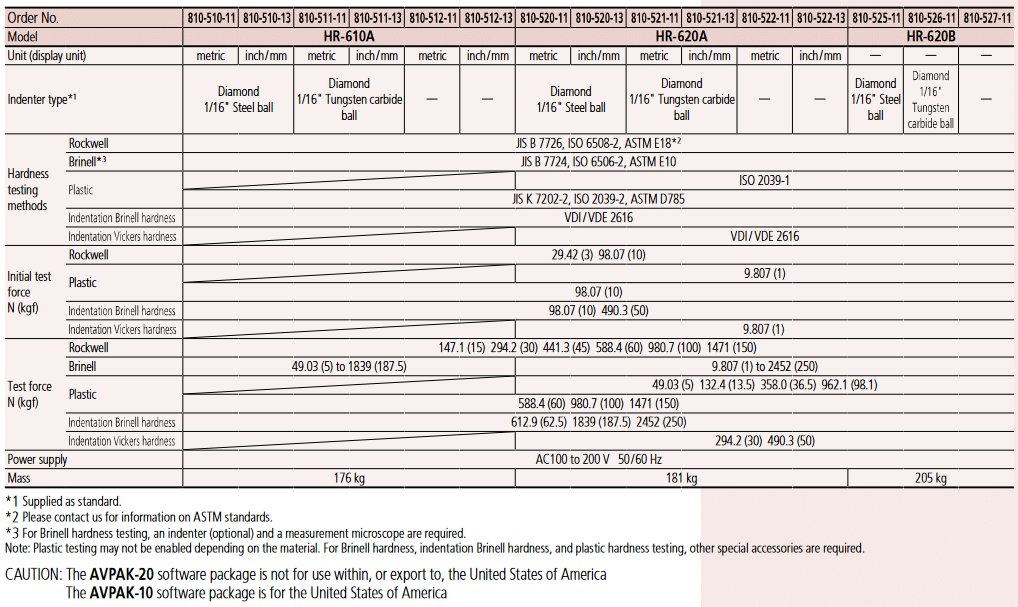

Specifications Rockwell Hardness Testing Machine HR 600
