Mitutoyo Linear Gage LG100 Series 542

Call for Price

Features

Precision and accuracy demanded by the automated assembly and inspection markets, are guaranteed.
Sliding durability of more than 50 million times*, with protection level of IP67G. Highly oil-resistant material is used in the rubber cap and cable sheath, so it can be used even in harsh environments.
Reference point signal output functions are featured throughout this series. When incorporating into a device, the master setting value is easy to set and is retained after shutdown. Re-setting the origin is possible when there are problems such as excessive speed, ensuring excellent reliability.

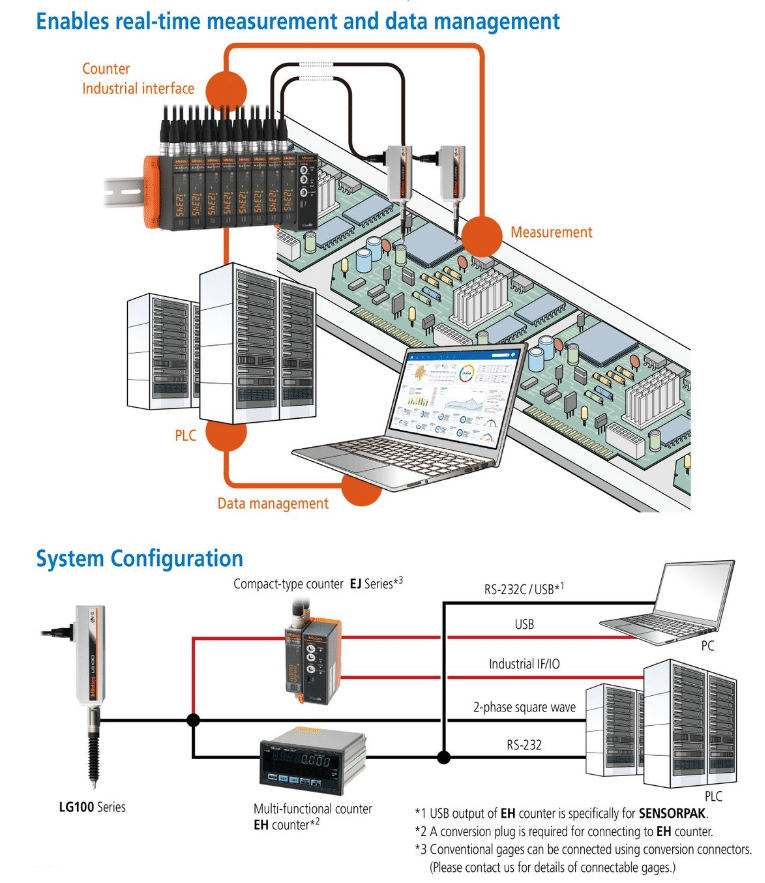

Data can be output through an industrial interface (CC-Link) by linking a compact counter (EJ counter) with an interface unit. Constant data monitoring and positional management are performed. A USB interface is also provided for easy connection with a computer.

*10mm range models (Actual value from in-house tests)

Mitutoyo Linear Gage LG100 Series 542

Product Information

Manufacturer: Mitutoyo

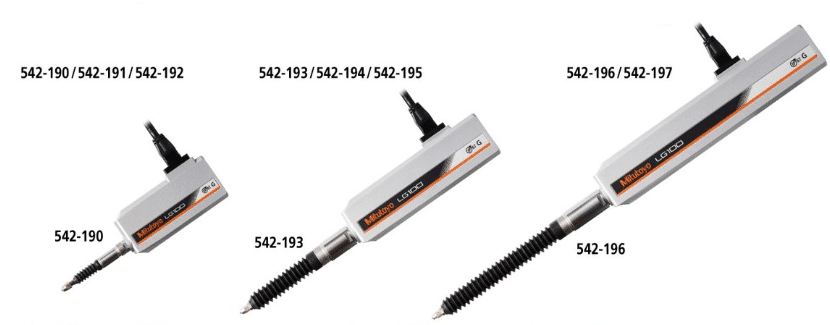

Linear Gage LG100 Series 542 is an environment-resistant digital gage. It can be used in-line or in measurement rooms.

Feature of LG100 Series 542

Precision and accuracy demanded by the automated assembly and inspection markets are guaranteed.
Sliding durability of more than 50 million times*, with a protection level of IP67G. Highly oil-resistant material is used in the rubber cap and cable sheath, so it can be used even in harsh environments.
Reference point signal output functions are featured throughout this series. When incorporated into a device, the master setting value is easy to set and is retained after shutdown. Re-setting the origin is possible when there are problems such as excessive speed, ensuring excellent reliability.
Data can be output through an industrial interface (CC-Link) by linking a compact counter (EJ counter) with an interface unit. Constant data monitoring and positional management are performed. A USB interface is also provided for easy connection with a computer.
