MILWAUKEE M12 TD-0 THERMAL DECTECTOR

FEATURES

– 7,854 (102 x 77) pixel resolution captures highest resolution image in its class
– Measure surface temperatures -10°C to 330°C for images spanning wide ranges
– DUAL SENSE™ pixels are ultra-responsive, adjusting individually to eliminate blurring of hot and cold details
– Take measurements from long range or down to the detail with 83:1 distance-to-spot performance
– 2-Stage trigger activates lasers for easy scanning or quickly captures images

Description
Additional information

SPECIFICATIONS MILWAUKEE M12 TD-0 THERMAL DECTECTOR

Battery platform:	M12™ REDLITHIUM™-ION
Sensor Resolution:	102 x 77
Temperature Range (°C):	-340
Thermal Sensitivity (°C):	0.1 at 30
Field of View:	26.8° (Horiz) x 35.4° (Vert)
LCD Display:	2.4″ High-Resolution Color
Display Resolution:	320 x 240 pixels

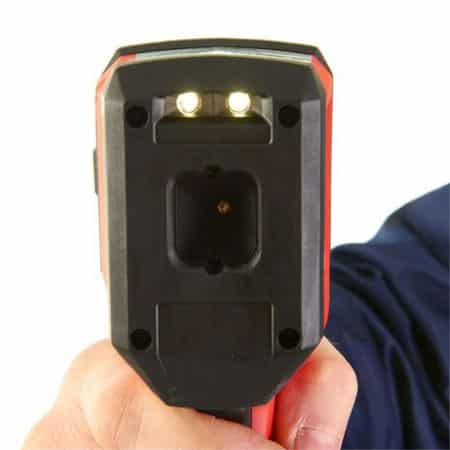

Laser Targeting:	Dual Lasers
Focus Method:	Fixed
Ranging:	Automatic
Color Palletes:	Iron Rainbow Gray
Reporting Software:	Fully Compatible with MILWAUKEE™ Tool Thermal Imaging Software
Image File Formats:	PNG .DAT .JPG .BMP
Data Storage:	2GB SD Card. Upgradeable to 32GB
Drop Test:	6′
Run Time:	10+ hrs
Charge Time:	30 Minutes
Voltage (V):	12
Weight with battery pack if applicable (kg):	0.4kg (2.0Ah)

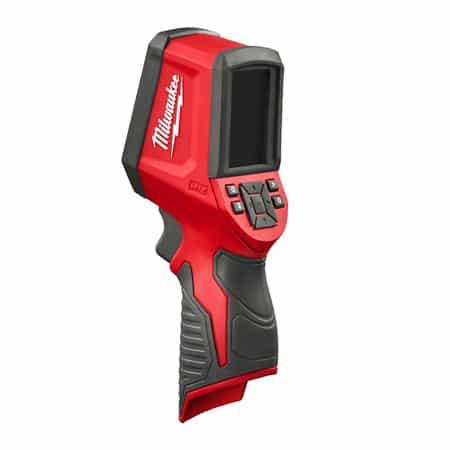

Introduction Milwaukee M12 TD-0

The M12™ 102 X 77 Infrared Camera (Milwaukee M12 TD-0) is the first imager in its class to deliver oustanding 7,800+ pixel image detail for superior scanning than single-point infrared thermometers.

Leverage Milwaukee® exclusive DUAL SENSE™ pixel technology to get crisp images of heat loss, electrical resistance, water damage and mechanical issues.

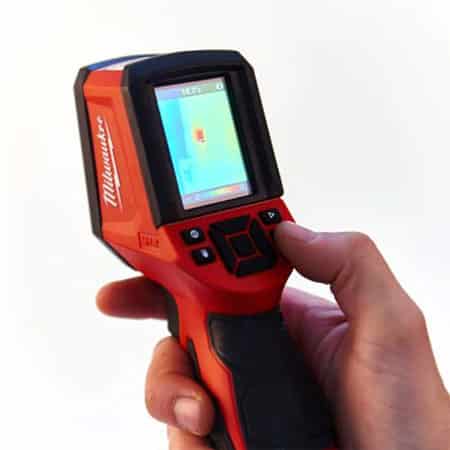

On-screen temperature readout and 83:1 Distance-to-Spot ratio gives users precise, real-time measurements from a distance.

Capture, store and share images using the included SD card and USB cable.

Fully compatible with Milwaukee® Thermal Imager Reporting Software for archiving, analyzing and reporting.
