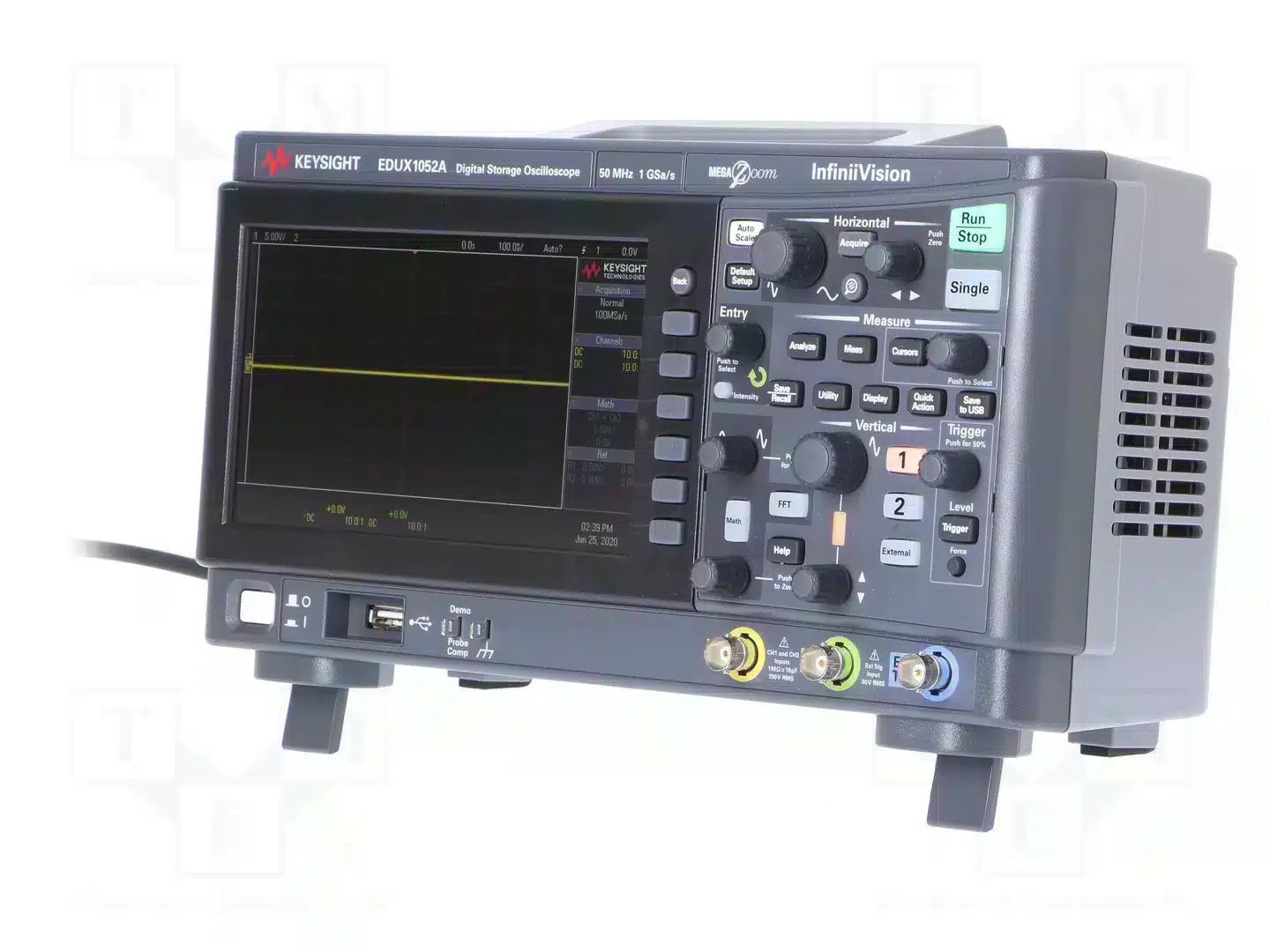

SPECIFICATIONS EDUX1052A Keysight Oscilloscope
General technical data: |
|
| Bandwidth: | 50 MHz |
| Analog channel: | 2 + 1 (ext. trigger viewable as digital channel) |
| External trigger (or 3rd digital channel): | 1 |
| Maximum sample rate: | 1 GSa/s (Giga-samples per second) |
| Vertical resolution: | 8-bit |
| Maximum memory depth: | 200,000 points (all channels) |
| Display size and type: | 7-inch TFT LCD WVGA |
| Connectivity: | USB 2.0 (host and device), LAN (10/100BASE-T) |
| Waveform update rate: | 100,000 waveforms per second |
| Serial protocol analysis: | Standard: I²C, UART/RS-232 |
| Integrated digital voltmeter: | Standard |
| Frequency counter: | Standard |
| Built-in training signals: | Standard |
| Waveform math: | Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter |
| Automatic measurements: | 14 amplitude, 14 timing, and 4 pulse count measurements |
| Wavegen: | Not available |
| Bode plot: | Not available |
| Dimension: | 340 mm (W) x 158 mm (H) x 152 mm (D) |
The Keysight EDUX1052A oscilloscope delivers fast waveform update rates, advanced analysis tools and a user-friendly interface. With generous memory and several connectivity options, it is an ideal choice for education, suiting both students and professionals in electrical and electronics engineering.
Measurement capabilities of the Keysight EDUX1052A oscilloscope
The Keysight EDUX1052A stands out with a waveform update rate of up to 100,000 waveforms per second, so users can observe and analyse signals quickly and accurately.
It comes with powerful signal analysis tools, including automatic measurements and a fast Fourier transform (FFT) for frequency analysis.
A versatile, flexible trigger system makes it easy to capture and analyse important signal events.
With up to 100 kpts of memory per channel, waveform data can be stored and reviewed for more detailed analysis later.
Friendly, intuitive design
The oscilloscope also includes an Education Mode that supports lessons and lab exercises, making it especially suitable for engineering teaching and training.
Its intuitive interface, with logically arranged keys and menus, makes the instrument easy to operate and its functions quick to reach.
The EDUX1052A also provides USB 2.0 and LAN (10/100BASE-T) ports for connecting to a PC and peripherals, and for convenient data sharing and remote access.
Contact Techmaster – authorised Keysight distributor in Vietnam for advice and a fast quote.
Hotline: 0908 173 345 | Email: marketing@techmaster.com.vn
Which industries use the EDUX1052A?
Learn more about Keysight EMS & electronics manufacturing solutions distributed by Techmaster in Vietnam (Vietnamese page).
Frequently bought with the EDUX1052A
Customers choosing the EDUX1052A often also consider Keysight DSOX1202A Oscilloscope, Keysight DSOX1202G Oscilloscope and Keysight DSOX1204A Oscilloscope to extend their measurement setup or to fit a different budget. See the full Keysight oscilloscope range at Techmaster.
