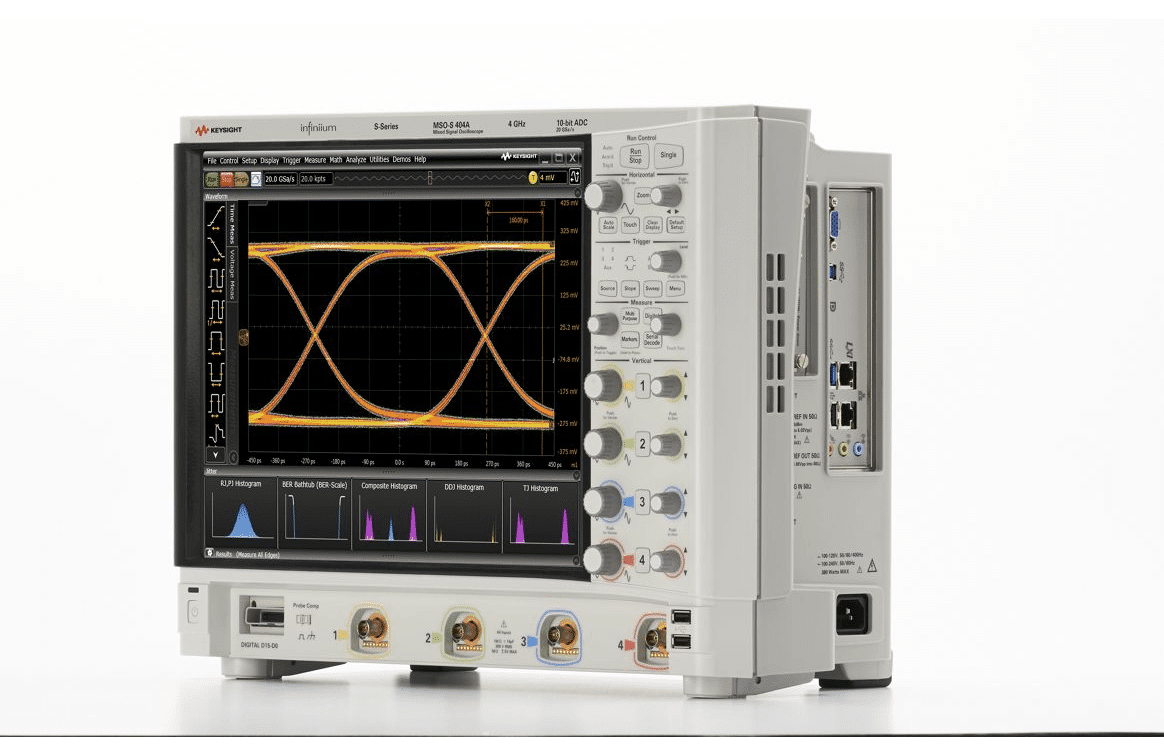

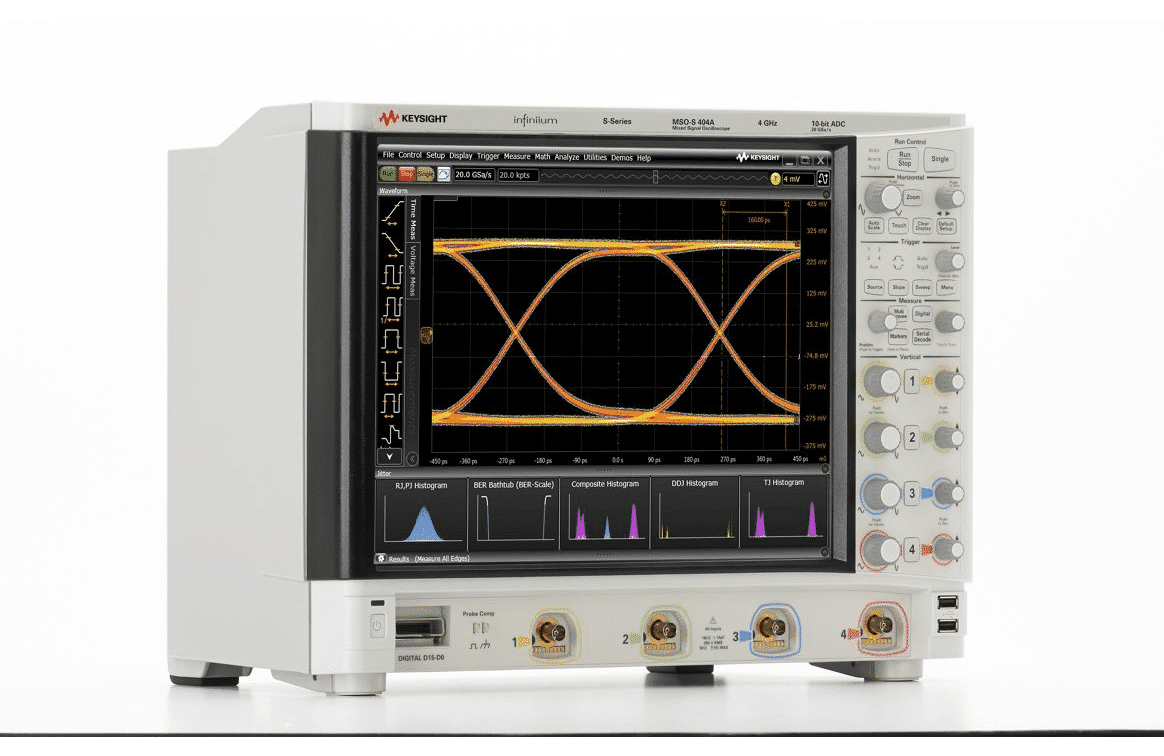

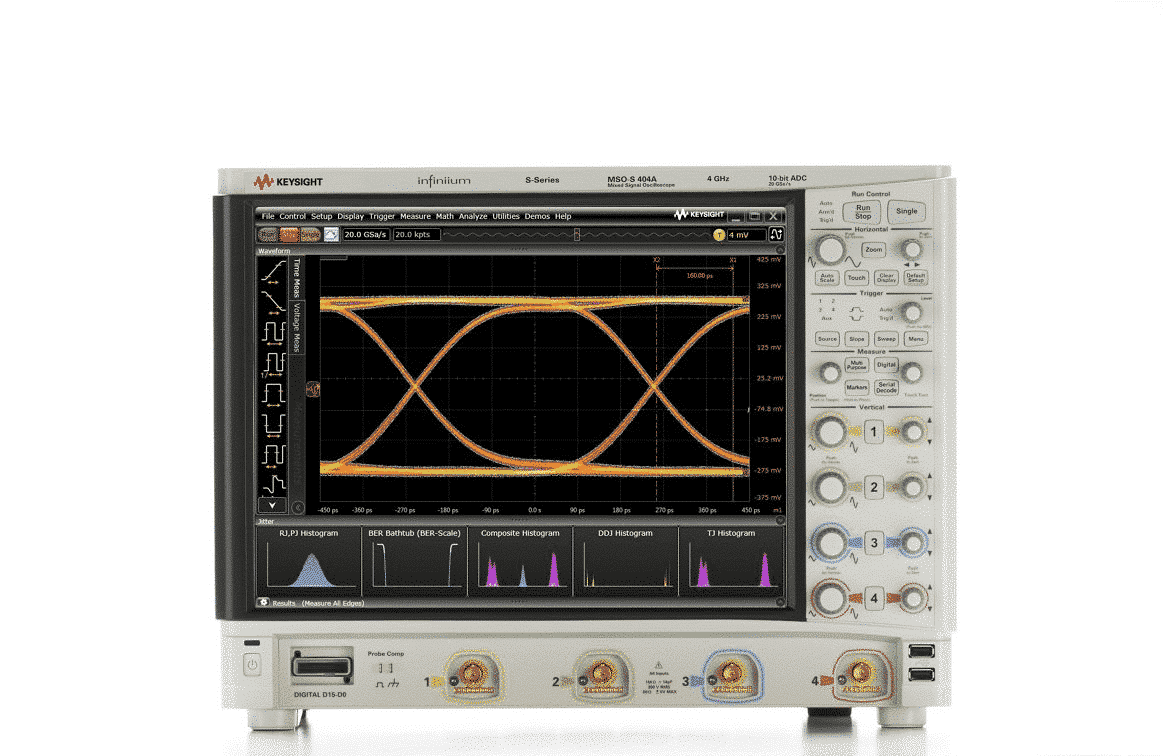

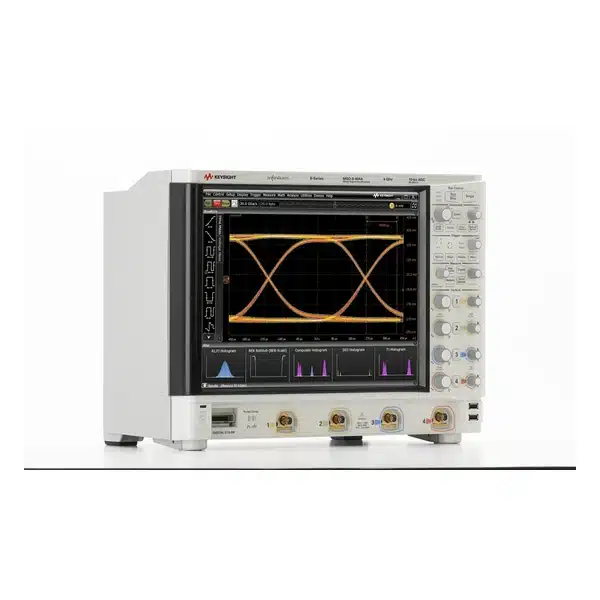

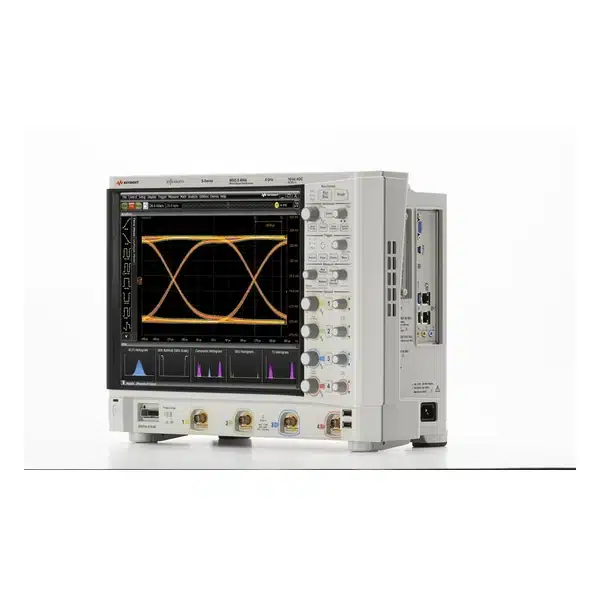

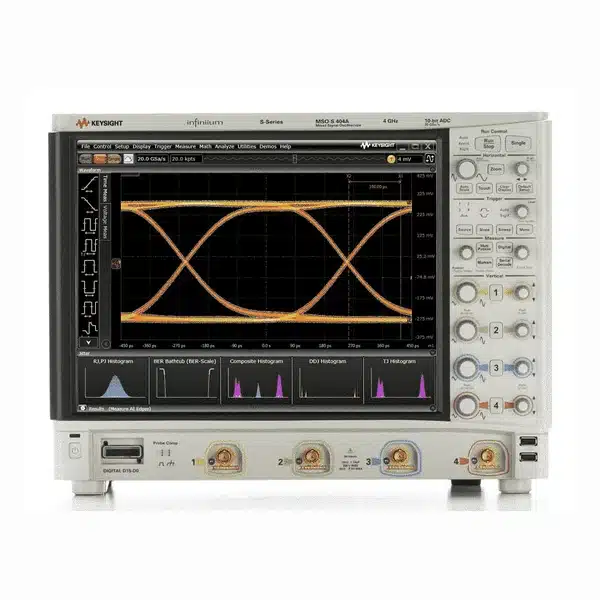

Keysight MSOS404A High-Definition Oscilloscope

Call for Price

HIGHLIGHTS

4 GHz bandwidth (upgradable)
4 analog plus 16 digital channels
achieve up to 16 bits of vertical resolution with our advanced system architecture
capture a longer signal trace with 20 GSa/s max sample rate and 100 Mpts/channel of standard memory
get superior signal integrity with an average system effective number of bits (ENOB) of 8.1 bits at full bandwidth
gain increased usability with the multi-touch supported 15-inch capacitive touch screen and solid state drive for fast boot and reliability
improve your testing with a wide range of protocol, compliance, and analysis software

Infiniium S-Series The Standard for Superior Measurements

Description
Reviews (0)

Keysight MSOS404A High-Definition Oscilloscope – 4 GHz, 4 Analog + 16 Digital Channels

The Keysight MSOS404A is a premium oscilloscope in the Infiniium S-Series, designed for advanced signal analysis in R&D labs, industrial testing, and digital system design. With 4 GHz bandwidth (upgradeable), it delivers accurate measurements across 4 analog and 16 digital channels.

The oscilloscope integrates a 10-bit analog-to-digital converter, providing up to 16-bit vertical resolution in high-resolution mode. It features 20 GSa/s sample rate and 100 Mpts/channel memory, enabling engineers to capture long signal traces in fine detail.

Thanks to ENOB up to 8.1 bits, the MSOS404A ensures exceptional signal integrity. Its 15-inch capacitive touch screen offers intuitive control, while the solid-state drive delivers fast boot and high reliability. Built-in protocol decoding, compliance testing, and math functions expand testing capabilities across embedded, automotive, and RF applications.

Included Accessories:

Four N2873A 500-MHz passive probes
Probe accessory pouch
Localized power cord
Front panel hard cover
8 GHz BNC calibration cable
Keyboard and mouse
Keysight I/O libraries suite
User and programmer’s guide (preloaded)
16-channel MSO probe, MSO cable, MSO calibration fixture
1-year factory calibration certificate

The Keysight MSOS404A High-Definition Oscilloscope is a complete solution for engineers who demand precision, flexibility, and scalability in their testing workflow.
