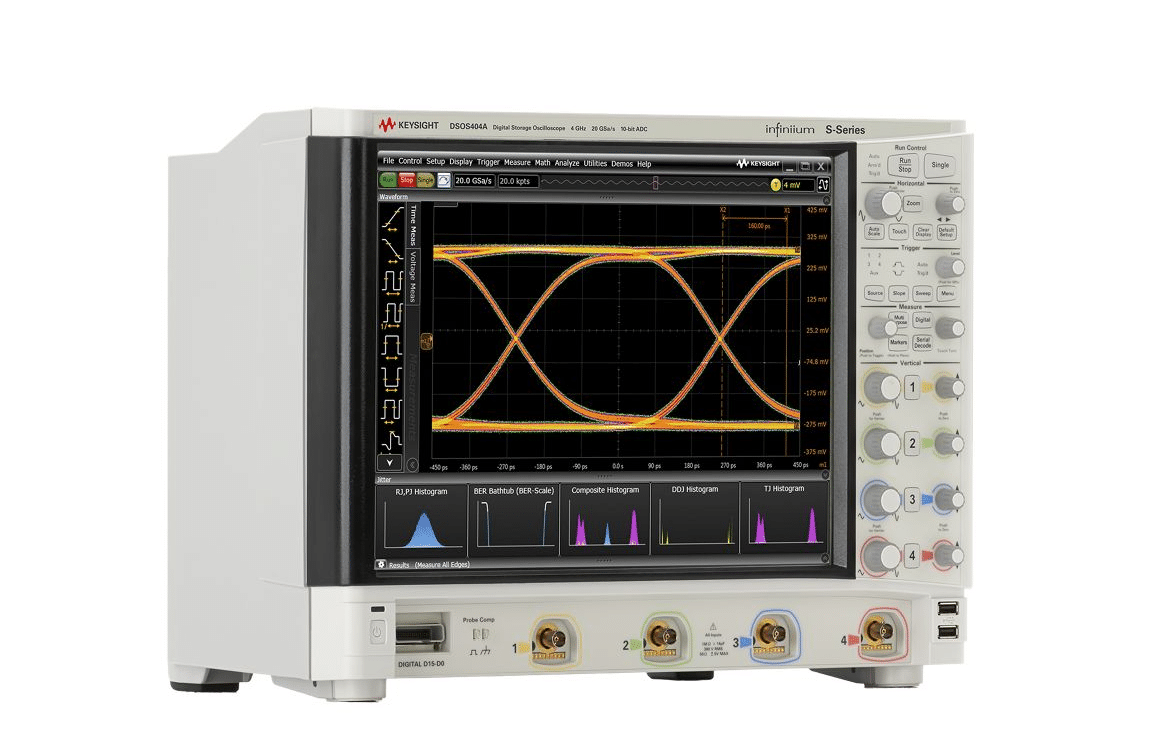

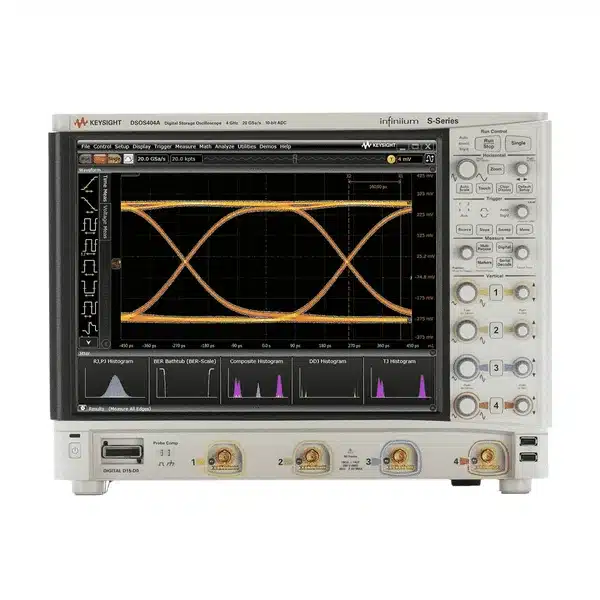

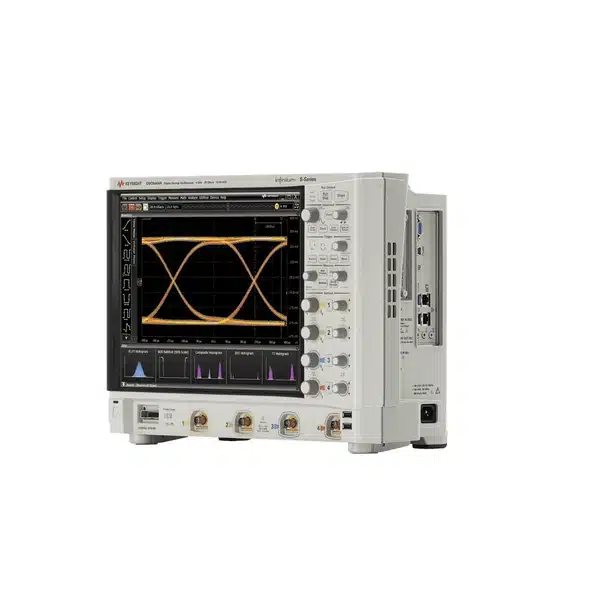

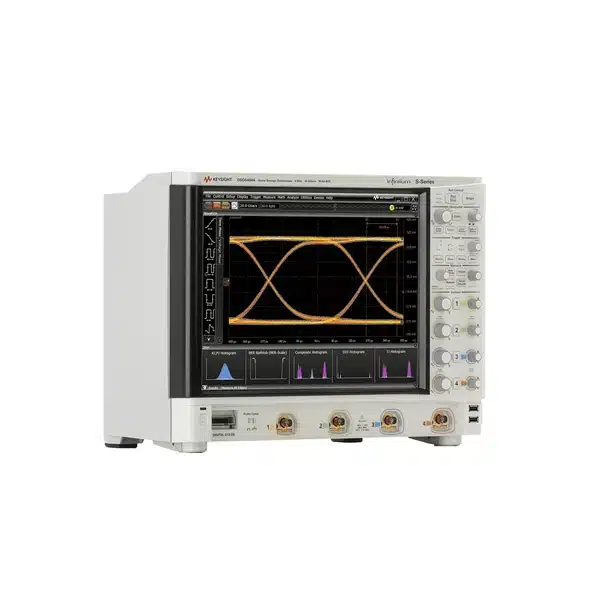

Keysight DSOS404A High-Definition Oscilloscope

Keysight DSOS404A High-Definition Oscilloscope – High-Precision 4-Channel Signal Analysis Solution

The Keysight DSOS404A is part of the advanced S-Series oscilloscopes, offering 4 GHz bandwidth and 4 analog channels. It features a 15-inch capacitive XGA touchscreen and a 10-bit analog-to-digital converter for accurate signal acquisition and analysis.

With its enhanced system architecture, the DSOS404A delivers up to 16 bits of vertical resolution. It supports a maximum sampling rate of 20 GSa/s and includes 100 Mpts/channel of standard memory, enabling the capture of long, detailed waveforms. The average system ENOB reaches 8.1 bits at full bandwidth, ensuring superior signal integrity.

This oscilloscope offers intuitive multi-touch operation, fast boot-up with a solid-state drive, and supports a wide range of protocol decoding, compliance, and analysis applications. It’s ideal for high-speed digital circuit debugging, RF signal measurement, and protocol testing.

Included accessories:

• Four N2873A passive probes (500 MHz)

• Probe accessory pouch

• Keysight I/O libraries suite

• Localized power cord and front panel cover

• 8 GHz BNC calibration cable

• Keyboard and mouse

• User guide and programmer’s guide (preloaded)

• Free download of BenchVue Basic app for instrument control
