Keysight D3000AUTB Automotive Software

Automotive Software D3000AUTB for Keysight InfiniiVision 3000A / 3000T / 3000G X-Series

Keysight D3000AUTB Automotive Software is a dedicated software package designed for automotive electronics development and validation. It enables protocol triggering, decoding, and advanced analysis of the most widely used automotive serial buses on Keysight InfiniiVision 3000A, 3000T, and 3000G X-Series oscilloscopes.

This software package is optimized for powertrain, body control, and vehicle monitoring applications, helping engineers efficiently design, debug, and validate automotive electronic systems.

Supported Automotive Protocols

InfiniiVision 3000T / 3000G X-Series

• CAN

• CAN FD

• LIN

• FlexRay

• SENT

• PSI5 (user-definable Manchester)

• User-definable NRZ

• CXPI

Includes:

• Hardware-based serial triggering and decoding

• Mask testing

• Frequency response analysis (Bode plot)

Note: Advanced math is standard on all 3000T and 3000G X-Series oscilloscopes.

InfiniiVision 3000A X-Series

• CAN

• LIN

• FlexRay

Includes:

• Serial triggering and decoding

• Mask testing

• Advanced math options

Key Features

• High-speed, hardware-based architecture for fast and reliable automotive bus analysis

• On-screen serial decode time-correlated with the waveform

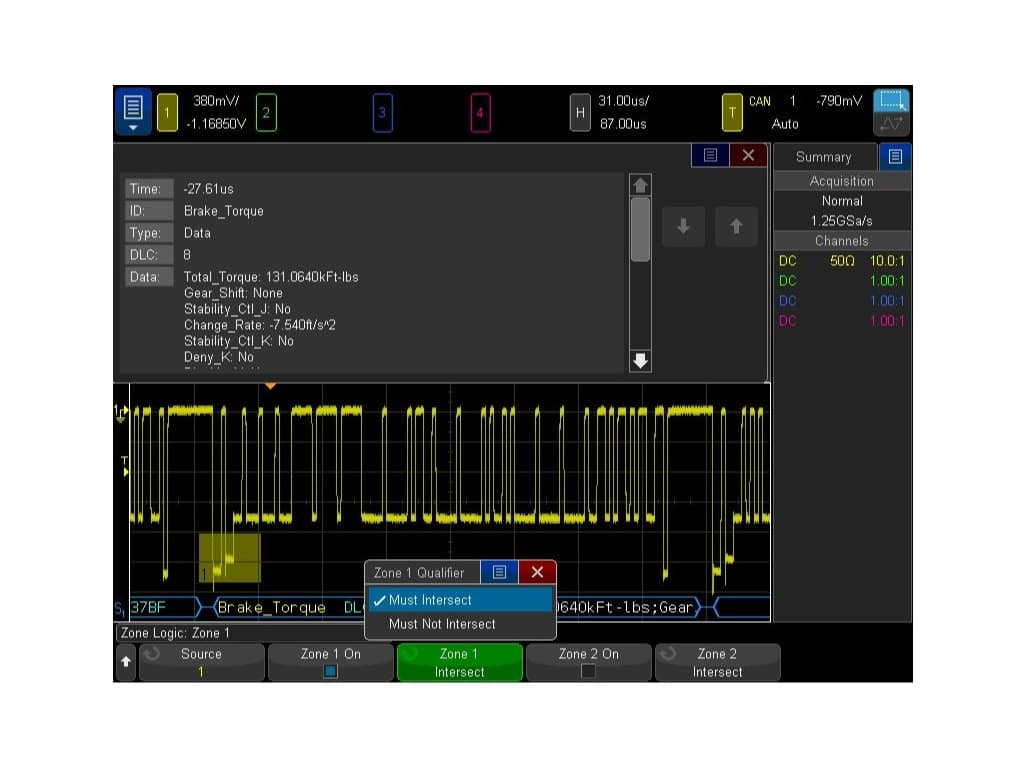

• Symbolic triggering and decoding for CAN, CAN FD, and LIN using .dbc and/or .ldf files

• CAN and CAN FD eye-diagram mask testing, with support for downloading industry-standard multi-region masks

• Detailed pass/fail statistics for mask compliance testing

• Designed for efficient debugging of complex automotive communication issues

Benefits

• Reduce debug and validation time for automotive serial buses

• Identify signal integrity, timing, and protocol-related issues early

• Improve system reliability and compliance with automotive standards

• Ideal for R&D, validation labs, production testing, and failure analysis

Compatibility

• Keysight InfiniiVision 3000A X-Series

• Keysight InfiniiVision 3000T X-Series

• Keysight InfiniiVision 3000G X-Series
