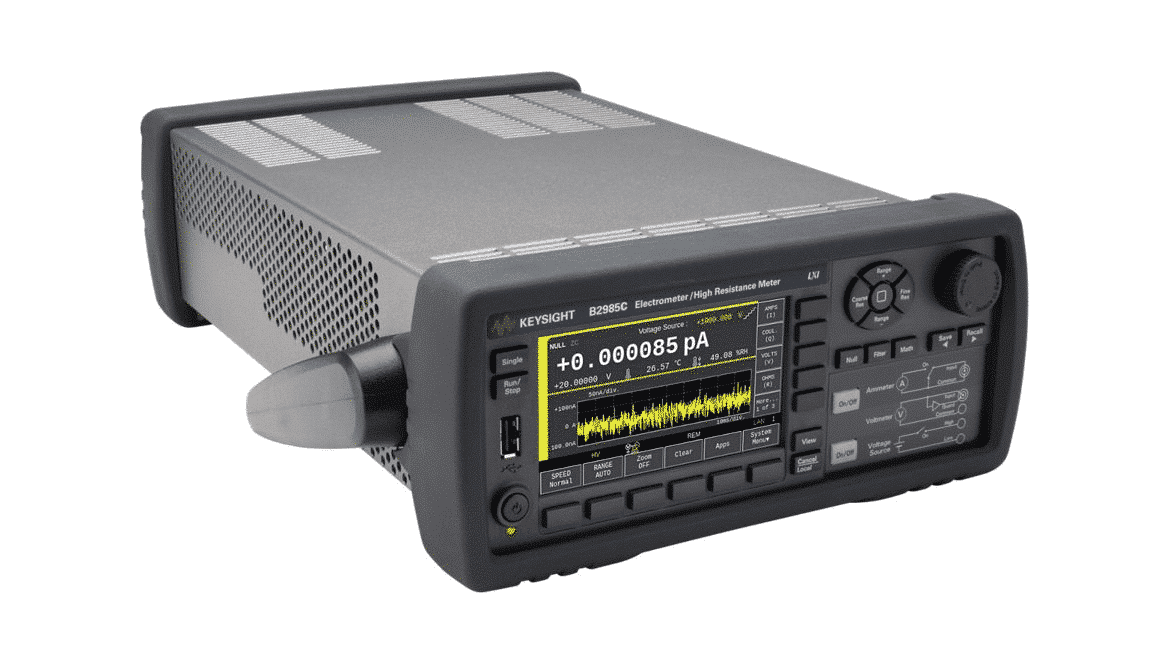

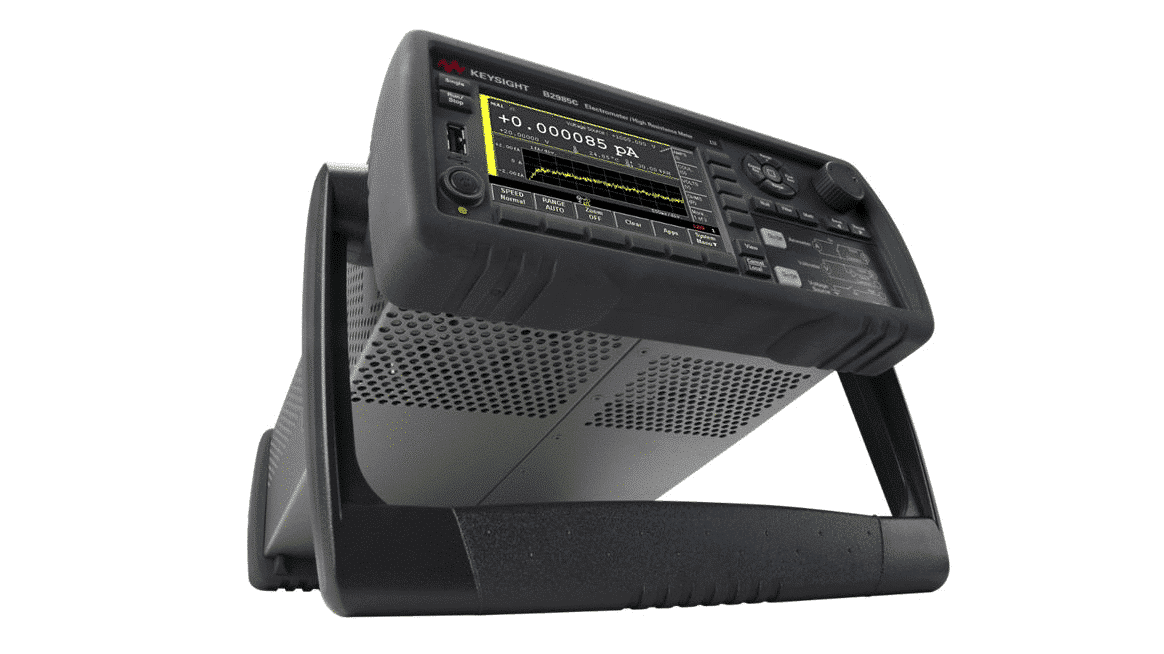

Keysight B2985C Electrometer / High Resistance Meter

Keysight B2985C Electrometer / High Resistance Meter – Ultra-Precise Measurement Down to 0.01 fA and Up to 10 PΩ

The Keysight B2985C Electrometer / High Resistance Meter is a high-precision measurement instrument designed for detecting ultra-low currents and extremely high resistances with unmatched accuracy. It provides 0.01 fA (0.01 × 10⁻¹⁵ A) resolution and measures resistances up to 10 PΩ (10 × 10¹⁵ Ω) using its integrated 1000 V voltage source.

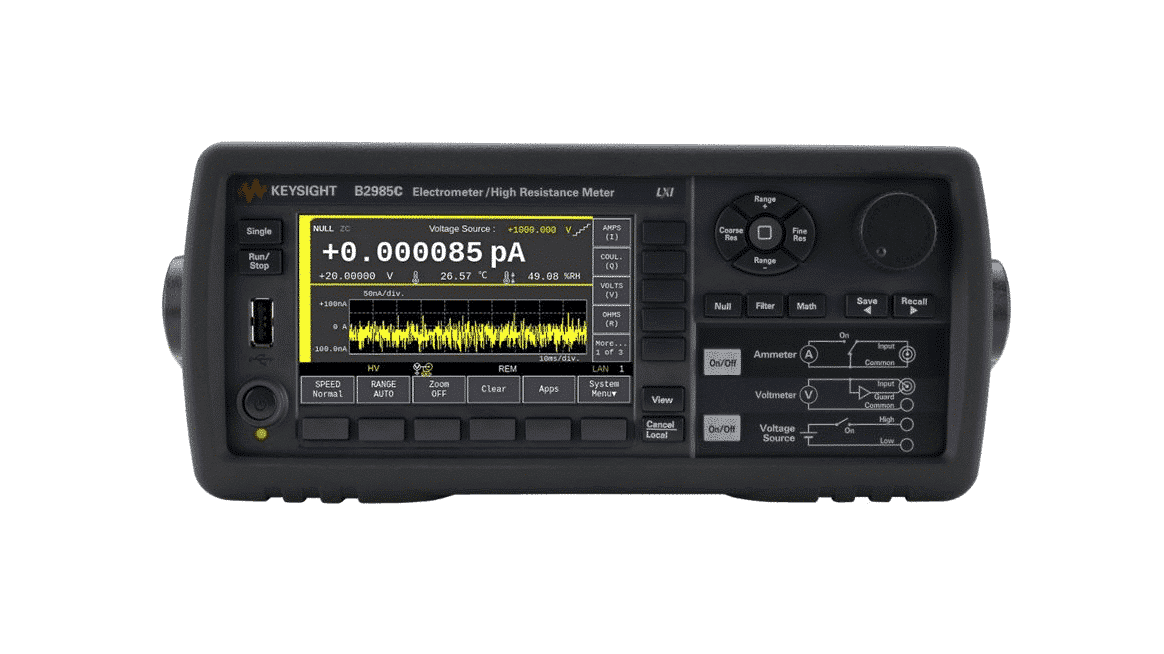

Equipped with a 4.3-inch color LCD display, the B2985C allows real-time graphical visualization of trend charts, histograms, and numeric data directly on the instrument. This eliminates the need for a PC during analysis, enabling engineers to observe signal stability, noise levels, and transient behavior immediately.

The Setup Integrity Checker software enhances diagnostic capability by identifying external noise sources through cable and fixture comparison. This ensures precise and stable measurements, even in challenging environments.

With its combination of precision, speed, and usability, the Keysight B2985C is an essential tool for semiconductor testing, material research, and insulation characterization applications that demand extreme sensitivity and consistency.

Measurement Capabilities

• 0.01 fA minimum current resolution for ultra-sensitive low-current measurements

• Up to 10 PΩ resistance measurement with integrated 1000 V source

• 20,000 readings per second for rapid data acquisition and analysis

• Stable and repeatable performance for long-duration and high-impedance measurements

• Accurate current, voltage, charge, and resistance readings within a single instrument

Key Features

• 4.3-inch graphical LCD interface for real-time data visualization (trends, histograms, numeric view)

• Setup Integrity Checker software for identifying noise sources and improving test setup reliability

• Auto navigation system for intuitive operation and configuration

• Fast data logging and trend tracking directly from the front panel

• High-speed measurement capability (up to 20,000 readings/s)

• Compact, durable design ideal for laboratory and production environments

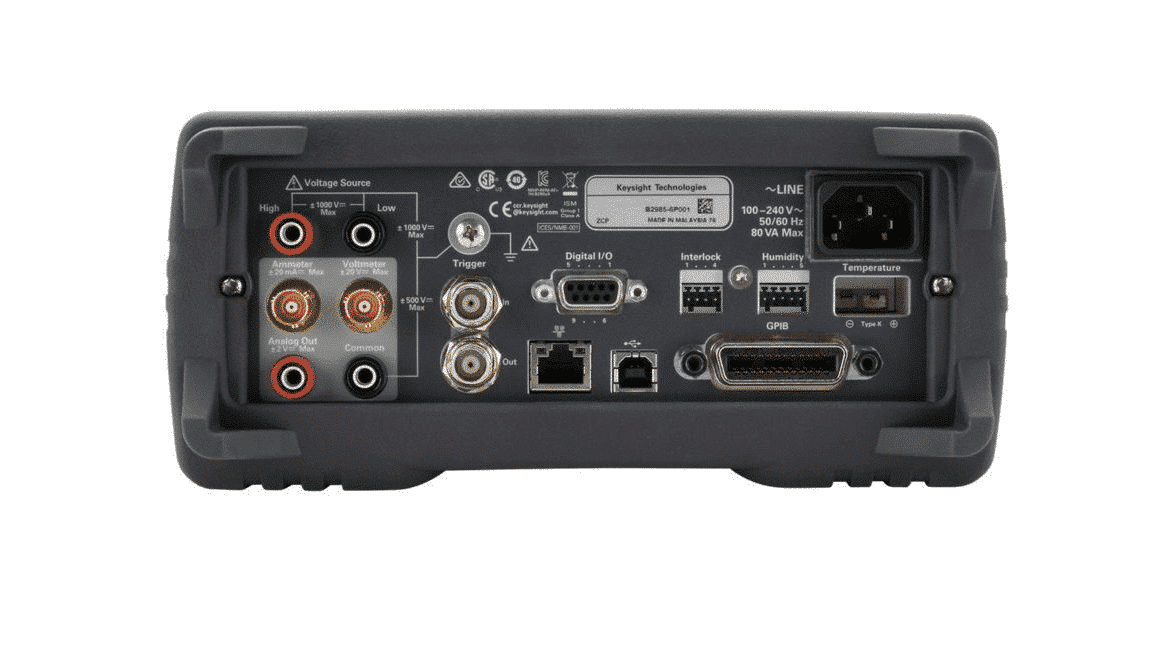

• Supports USB, GPIB, and LAN interfaces for automated measurement systems

Applications

• Semiconductor leakage current and insulation resistance testing

• High-resistance material characterization and surface insulation analysis

• Precision low-current measurement in nanoelectronics and quantum research

• Validation and calibration of ultra-sensitive instruments

• Long-term monitoring of high-impedance devices and systems

Note: This is a replacement product for the Keysight B2985C Máy đo điện trở
