SPECIFICATIONS HANDHELD DIGITAL MULTIMETER – KEYSIGHT U1241C
General technical data |
|
| Display resolution | 10, 000 |
| Display | 4 ½-digit Liquid Crystal Display (LCD) with maximum reading of 11,000-count
Automatic polarity indication |
| AC bandwidth | 2 kHz |
| True RMS | AC |
| Voltage DC | Range: 100 mV to 1000 V
Accuracy: 0.09% + 2 cnts |
| Voltage AC | Range: 100 mV to 1000 V
Accuracy: |
| Power consumption | 530 mVA maximum with backlight and flashlight. |
| Battery life | 400 hours typical based on new alkaline batteries for DC voltage measurement |
| Connectivity | Infrared (IR) port, connect with IR-USB cable |
| Operating environment | Full accuracy from –20 °C to 55 °C; and up to 80% R.H. for temperature up to 30 °C decreasing linearly to 50% R.H. at 55 °C
Pollution degree II Altitude up to 3000 meters |
| Measurement category | CAT III 1000 V / CAT IV 600 V |
| Ingress protection rating | IP-67, protected against dust and the effect of immersion between 15 cm and 1 m |
| Temperature coefficient | 0.05 x (specified accuracy)/°C (from –20 °C to 18 °C or 28 °C to 55 °C) |
| Common Mode Rejection Ratio (CMRR) | > 120 dB at DC, 50/60 Hz ±0.1% (1 kΩ unbalanced) |
| Normal Mode Rejection Ratio (NMRR) | > 60 dB at 50/60 Hz ±0.1% |
| Dimensions | 198 (H) x 96 (W) x 57 (D) mm |
| Weight | 545 grams (with batteries) |
| Warranty | Three years for main unit. Three months for standard shipped accessories |
| Calibration cycle | One year, or; Two years (with 1.5 times of one year specification) |

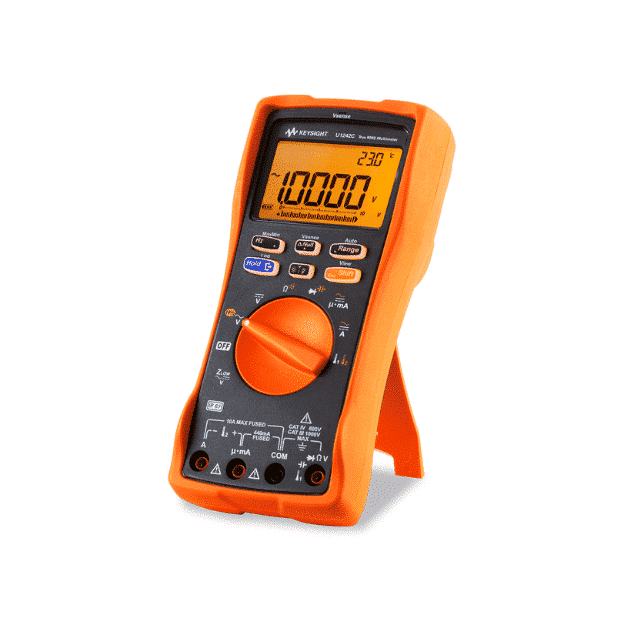

Keysight U1241C: High-Performance Digital Multimeter Handheld
The Keysight U1241C handheld digital multimeter is a powerful tool designed for engineers and technicians who demand accuracy, durability, and ease of use. With its 10,000-count display and 0.09% basic DC voltage accuracy, this multimeter ensures precise measurements in demanding environments. Certified to IP67 for water and dust resistance and drop-tested from 3 meters, the U1241C is ideal for industrial field applications. It supports AC/DC voltage and current measurements, as well as resistance, capacitance, frequency, diode testing, and temperature monitoring using a K-type thermocouple. The True RMS feature guarantees accurate readings even for non-sinusoidal signals. With up to 400 hours of battery life, built-in LED flashlight, and IR-USB connectivity for data logging, the Keysight U1241C is a compact, reliable, and high-performance digital multimeter for professionals working in harsh or low-light environments.
What is the Keysight U1241C used for?
Precision electrical measurement
Production test and QA
Maintenance and repair
Keysight U1241C — frequently asked questions
Where can I buy a genuine Keysight U1241C in Vietnam?
How much does the Keysight U1241C cost?
Is the Keysight U1241C covered by warranty and calibration?
Request a quote for the Handheld Digital Multimeter – Keysight U1241C
Techmaster engineers advise on the configuration and quote the same day.
