Fluke 365 Detachable Jaw True RMS AC/DC Clamp Meter

Call for Price

Key features

200 A AC and DC current measurement with detachable jaw
600 VAC and DC voltage measurement
Detachable jaw makes accessing wires and viewing the display easier
Built in flashlight/torch allows for easy illumination and identification of wires
CAT III 600 V
Compact design fits in your hand and can be used while wearing protective equipment
State of the art signal processing allows for use in noisy electrical environments while providing stable readings
Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement
Three-year warranty
Soft carrying case

Description
Reviews (0)

Fluke 365 Detachable Jaw True RMS AC/DC Clamp Meter

Product overview: Fluke 365 Detachable Jaw True RMS AC/DC Clamp Meter

Be ready for anything.

The Fluke 365 is a rugged meter perfect for jobs where access to wires is difficult. The 365’s thin, small jaw is detachable with a flexible lead, which makes gaining access to wires and viewing the display easier than ever.

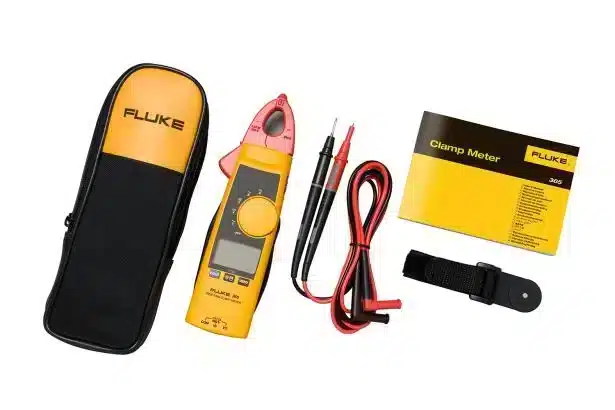

What’s in the box:

365 Detachable Jaw Clamp Meter
(1 pair) TL75 test leads
Five AA Alkaline batteries (Installed)
Soft carrying case
Magnetic hanging strap
Quick Reference Guide

Specifications: Fluke 365 Detachable Jaw True RMS AC/DC Clamp Meter

Electrical Specifications
AC Current
Range	200.0 A
Resolution	0.1 A
Accuracy	2 % ±5 digits (45 – 65 Hz)
Accuracy	2.5 % ±5 digits (65 – 400 Hz)
Crest Factor	2.5 @ 125 A
	1.55 @ 200 A
	Add 2 % for C.F. >2
DC Current
Range	200.0 A
Resolution	0.1 A
Accuracy	2 % ±5 digits
AC Voltage
Range	600.0 V
Resolution	0.1 V
Accuracy	1.5 % ±5 digits (45 – 400 Hz)
DC Voltage
Range	600.0 V
Resolution	0.1 V
Accuracy	1 % ±5 digits
Resistance
Range	600.0 Ω/6000 Ω
Resolution	0.1 Ω/1 Ω
Accuracy	1 % ±5 digits

Mechanical Specifications
Size (L x W x H)	225 x 65 x 46 mm
225 x 65 x 46 mm	275 g (including batteries)
Jaw Opening	18 mm
Detachable Jaw Cable Length	900 mm

Environmental Specifications
Operating Temperature	-10 °C to +50 °C
Storage Temp	-40 °C to +60 °C
Operating Humidity	Non condensing (<10 °C)
	≤90 % RH (at 10 °C to 30 °C)
	≤75 % RH (at 30 °C to 40 °C)
	≤45 % RH (at 40 °C to 50 °C)
	(Without Condensation)
Operating Altitude	2000 meters
Storage Altitude	12,000 meters
Temperature Coefficients	0.1 x(specified accuracy)/ °C (<18 °C or > 28 °C)
Safety Compliance	ANSI/ISA S82.02.01:2004
	CAN/CSA-C22.2 No. 61010-1-04
	UL 61010-1:2004
	EN/IEC 61010-1:2001 to 600V CAT III
	Pollution Degree 2
Batteries	2 AA, NEDA 15A, IEC LR6
