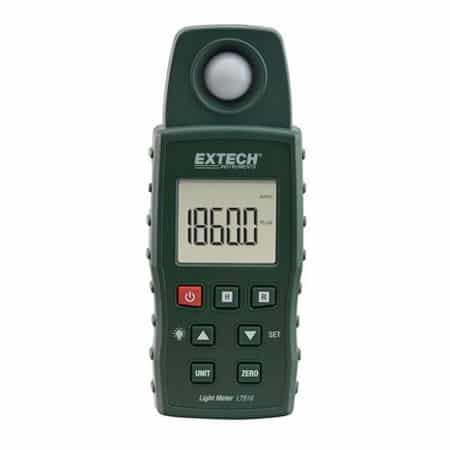

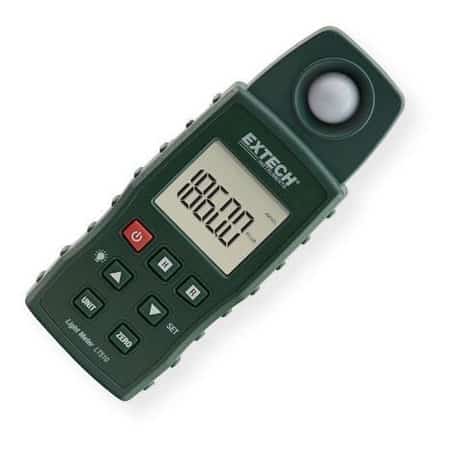

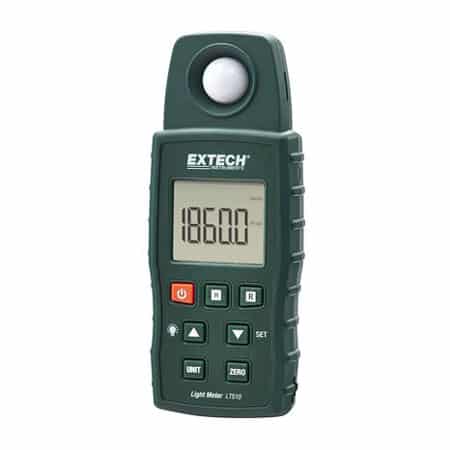

Extech LT510 Light Meter

Call for Price

Key Features

  • Zero function
  • Backlit LCD to view in dimly lit areas
  • Data Hold and Min/Max functions
  • Auto power off with disable
  • Complete with light sensor cover, wrist strap, and three AAA batteries

SPECIFICATIONS EXTECH LT510 LIGHT METER

Display: Backlit LCD 35 x 30mm (1.38 x 1.18”)

Light sensor: Photosensor with cosine correction filter

Measurement Units: LUX and Ft-cd (Foot – Candle)

Input Overload Display: “—-“

Tripod mount: On back of meter

Power Extech LT510: 3 x 1.5V AAA batteries

Power Consumption: Approx. 5mA DC

Automatic power off: After approx. 10 minutes of inactivity

Operating temperature: 0 to 50oC (32 to 122oF)

Operating humidity: 80% RH max

Storage temperature: -10 to 60oC (14 to 140oF)

Storage humidity: 10 to 75% RH

Dimensions/weight: 141 x 57 x 25mm (5.5 x 2.3 x 1.1”) /136g (4.8oz)

  • Electrical Specifications (23±5°C)
Lux (autorange)
Unit Range Resolution Accuracy
Lux 0 to 2,200 1 ±5%rdg ±8dgt
1,800 to 20,000 10
Ft-cd (autorange)
Unit Range Resolution Accuracy
Ft-cd 0 to 204.0 0.1 ±5%rdg ±8dgt
170 to 1,860 1



Introduction Extech LT510

Measures light intensity up to 1860 Foot-candles (20,000 Lux) with resolution to 0.1 Fc/1Lux. Ideal for indoor lighting tests and for checking security and safety illumination in parking garages, nighttime ATM areas, stairwells, landings, and hallways.

Features

Measure light levels in Foot-Candle (Fc) or Lux units using a precision photodiode with cosine and color correction filter
– Zero function
– Backlit LCD to view in dimly lit areas
– Data Hold and Min/Max functions

– Auto power off with disable
– Tripod mount (optional TR100 Tripod sold separately)
– Complete with light sensor cover, wrist strap, and three AAA batteries
