EXTECH 380976 K SINGLE PHASE/THREE PHASE 1000A AC POWER CLAMP METER KIT

SPECIFICATIONS EXTECH 380976-K SINGLE PHASE/THREE PHASE 1000A AC POWER CLAMP METER KIT

True Power (W)

Max Range / Resolution: 600kW / 10W

Basic Accuracy: ±5%

Apparent Power(kVA)

Max Range / Resolution: 600kVA / 100VA

Basic Accuracy: ±2%

Reactive Power (kVAR)

Max Range / Resolution: 600kVAR/10VAR

Basic Accuracy: ±5%

Horsepower (HP)

Max Range / Resolution: 800HP/0.01HP

Basic Accuracy: ±5%

Phase Angle (f)

Max Range / Resolution: -60 to +60° / 0.1°

Basic Accuracy: ±6°

AC Current: (Trms)

Max Range / Resolution: 1000A / 10mA

Basic Accuracy: ±2%

uA Current (AC+DC) (Trms)

Max Range / Resolution: 1000µA / 10nA

Basic Accuracy: ±1%

AC/DC Voltage: (Trms)

Max Range / Resolution: 600V / 0.1mV

Basic Accuracy: ±1%

Resistance (Ω)

Max Range / Resolution: 1000kΩ / 0.1Ω

Basic Accuracy: ±1%

Resistance (MΩ)

Max Range / Resolution: 100MΩ / 1kΩ

Basic Accuracy: ±5%

Capacitance

Max Range / Resolution: 7000µF / 1nF

Basic Accuracy: ±1.5%

Frequency

+ Max Range / Resolution: 40Hz to 1kHz / 0.1Hz

Basic Accuracy: ±0.5%

Temperature (Type K)

+ Max Range / Resolution: -58 to 1000°F / 0.1°F

Basic Accuracy: ±1%

+ Max Range / Resolution: -50 to 900°C / 0.1°C

Basic Accuracy: ±1%

Dimensions: 9 x 3 x 1.6″ (228 x 76 x 39mm)

Weight: 16.4oz (465g)

Introduction Extech 380976-K

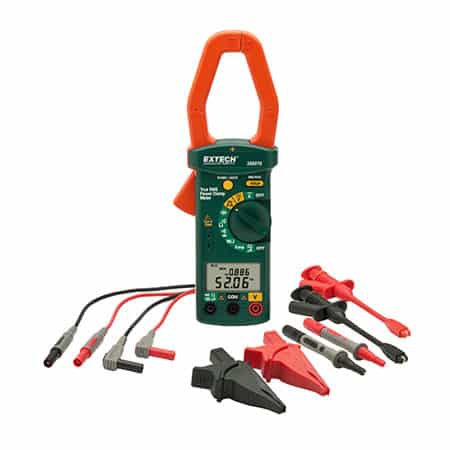

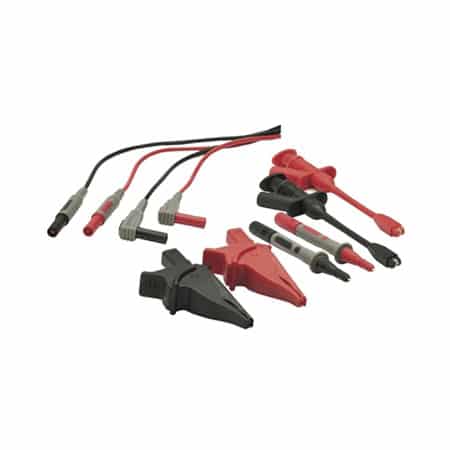

The 380976-K is a Single Phase/3 Phase 1,000 Amp AC Power Clamp Meter Kit. Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator. Auto Detect AC/DC Voltage measurements with simultaneous frequency display. In addition, the supplied test lead kit includes two CAT IV 72″ test leads, 2 modular test probe handles, 2 plunger activated jaw clips, and 2 extra-large alligator clips. Complete with test lead kit, Type K probe, carrying case and 9V battery.

Features

– 1.6″ (40mm) clamp jaw opening and large dual LCD display (9999 count)
– Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
– AC+DC µA current with 10nA resolution for flame rod tests
– Auto Detect AC/DC Voltage measurements with simultaneous frequency display (Extech 380976-K)
– Capacitance to 7000µF with 0.001µF resolution
– High Resistance tests to 100MOhm
– Type K, °C/°F switchable, temperature to 1000°F
– Diode and Continuity tests
– Complete with test lead kit, general purpose Type K thermocouple probe, carrying case, and 9V battery
