SPECIFICATIONS DC POWER SUPPLY – KEYSIGHT E36154A
General technical data |
|
| DC output rating (0 to 40°C) | Voltage: 0 to 30 V
Current: 0 to 20 A Power: 800 W |
Load regulation |
Voltage: < 0.01% + 2 mV
Current: < 0.1% + 2 mA |
Output ripple and noise (20 Hz to 20 MHz) |
Normal mode voltage, Vpp: < 75 mV
Normal mode voltage, Vrms: < 7.5 mV |
Programming accuracy |
Voltage: 0.03% + 6 mV
Current: 0.1% + 20 mA |
Readback Accuracy |
Voltage: 0.04% + 6 mV
Current: 0.1% + 20 mA |
| Load transient recovery time | Voltage Settling Band: 75 mV
Time: < 1 ms |
| Interfaces | LAN, USB, and optional GPIB |
Display |
4.3-inch LCD color display with color-coded channels |
Advanced Options |
Scope view, arbitrary waveform generator, automotive ISO preset library with upgrades |
Weight |
6.64 kg |
| Dimensions | 145 X 216 x 495 (H x W x D) |
| Environmental Conditions | Operating Temperature: 0 to 40 °C
Humidity: 80% RH at temperature up to 40 °C, non condensing |

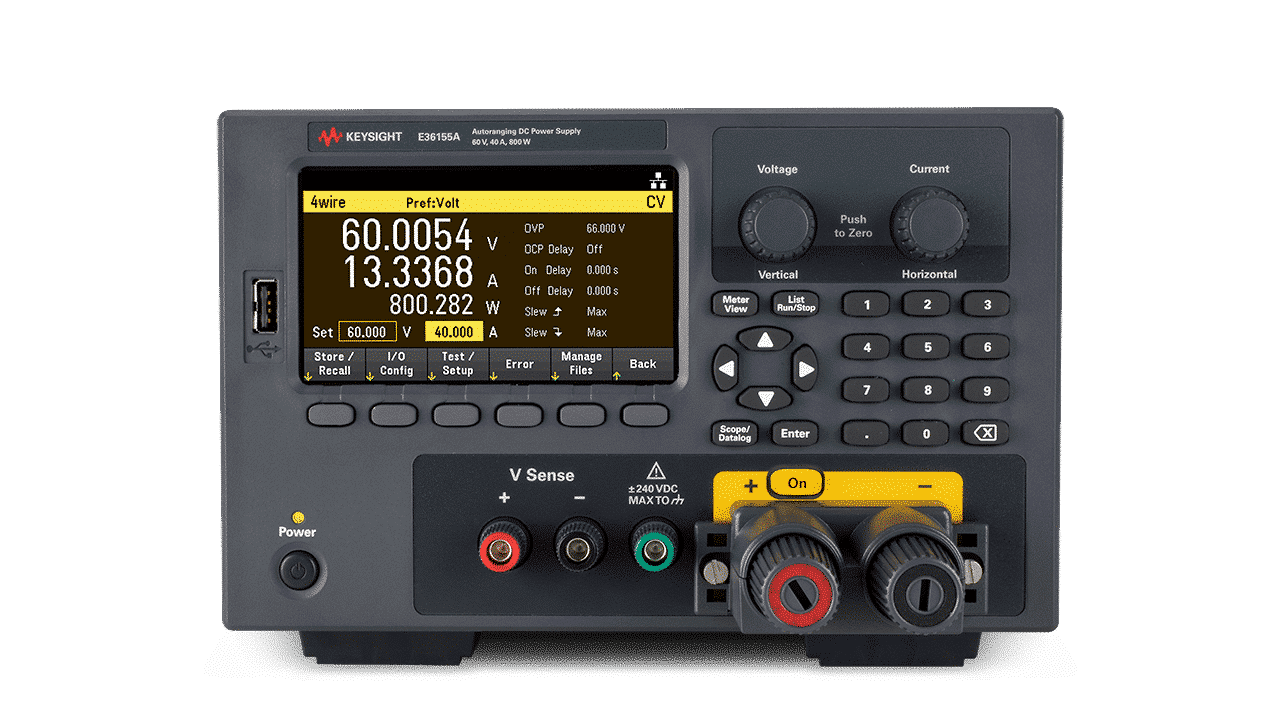

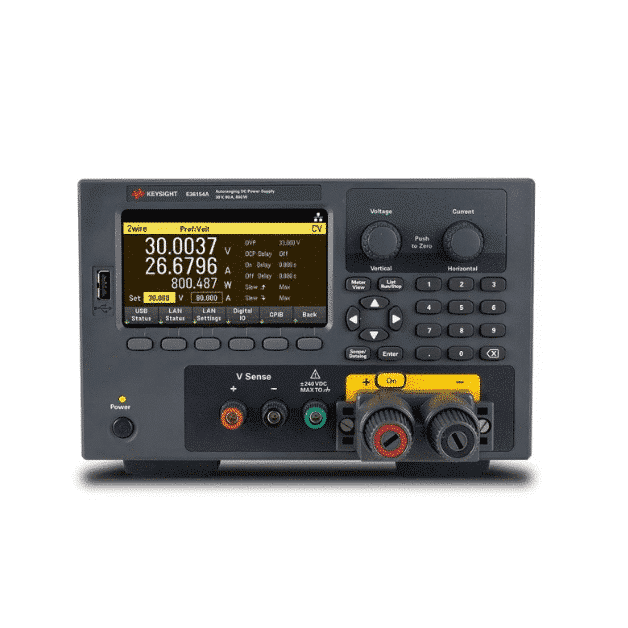

E36154A 800W Autoranging Benchtop Power Supply, 30V, 80A
The Keysight E36154A is an 800W, 30V, 80A Autoranging Benchtop single power output DC power supply. The E36154A includes advanced characterization tools such as data logging, an optional scope view, and arbitrary waveform generation. This enables in-depth analysis and precise output modulation for power simulation applications, allowing you to accelerate development projects without compromising quality. All these features work together to provide a one-box solution that eliminates the typical requirements of multiple instruments, therefore, helping you to save time without complex setups as well as reducing your test costs.
The E36154A brings in a new key innovation — a detachable front binding post that supports a high current up to 80A. The detachable binding post allows easy access to the power outputs allowing for seamless wire connections to your DUTs. More importantly, the front binding post has a built-in auto-protection mechanism to ensure your own safety as well as your devices.
What is the Keysight E36154A used for?
Stable test power supply
Load simulation and testing
Power consumption and efficiency measurement
Keysight E36154A — frequently asked questions
Where can I buy a genuine Keysight E36154A in Vietnam?
How much does the Keysight E36154A cost?
Is the Keysight E36154A covered by warranty and calibration?
Request a quote for the DC Power Supply – Keysight E36154A
Techmaster engineers advise on the configuration and quote the same day.
