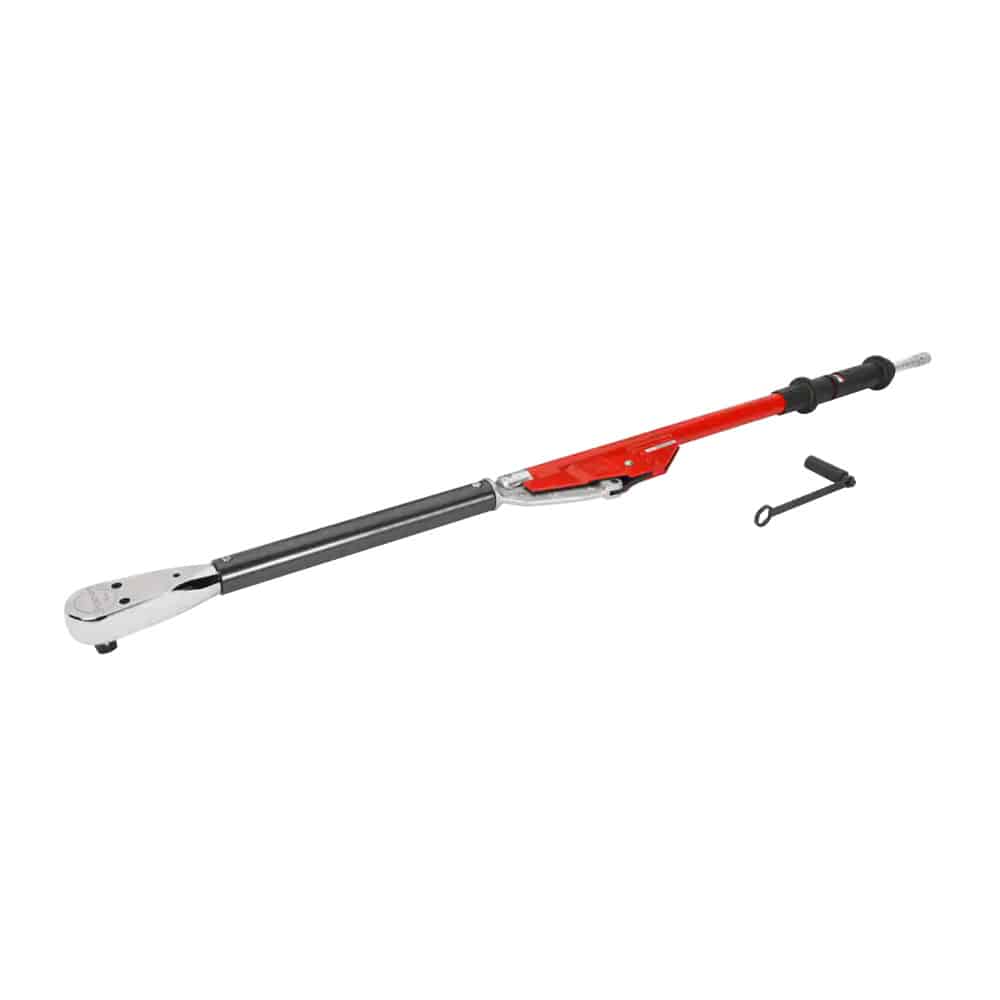

3/4″ Drive Break-Over Type Torque Wrench (200-750 ft-lb) – QB4R750

Call for Price

Features

  • Easy adjustment with easy-to-read scale to reduce the possibility for errors
  • Rugged design and durable powder-coated finish ensure years of trouble-free operation in the most demanding applications
  • Snap-on® sealed ratchet is high-strength and virtually maintenance-free, providing both long cycle life and minimal downtime
  • Large plastic handgrip makes the wrench comfortable to use and guides the operator’s hand to the correct position
  • The quick-release mechanism allows the tool to be easily disassembled into two pieces for convenient storage and portability

Specifications 3/4″ Drive Break-Over Type Torque Wrench (200-750 ft-lb) – QB4R750

Range, ft-lb200–750
Country Of OriginGBR
Head StyleFixed Sealed Ratchet
Gear Teeth32
Head Depth, inches1-1/4
Length, inches61-3/16
Head Width, inches2-1/2
Weight, lb (kg)16.2 (7.35)
Swing Arc11°
Range, N•m300–1,000
Ratchet Service KitRKRTQ4
Square Drive, inches3/4

Features

– The unique break-over mechanism provides a clear indication that the torque target has been reached and allows a large break angle, making torque overshoot much less likely

– Easy adjustment with easy-to-read scale to reduce the possibility for errors

– Rugged design and durable powder-coated finish ensure years of trouble-free operation in the most demanding applications

– Snap-on® sealed ratchet is high-strength and virtually maintenance-free, providing both long cycle life and minimal downtime

– Large plastic handgrip makes the wrench comfortable to use and guides the operator’s hand to the correct position

– The quick-release mechanism allows the tool to be easily disassembled into two pieces for convenient storage and portability
