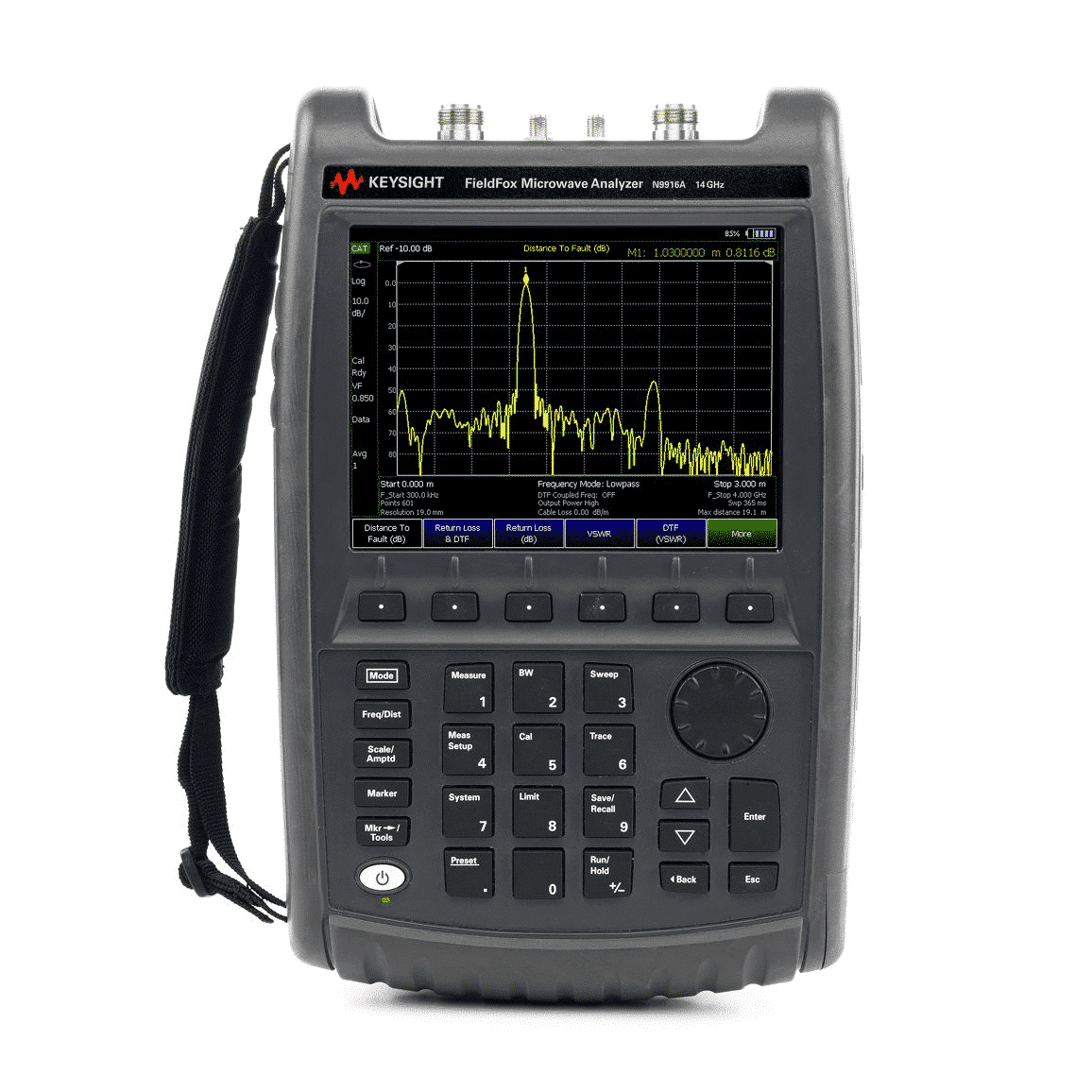

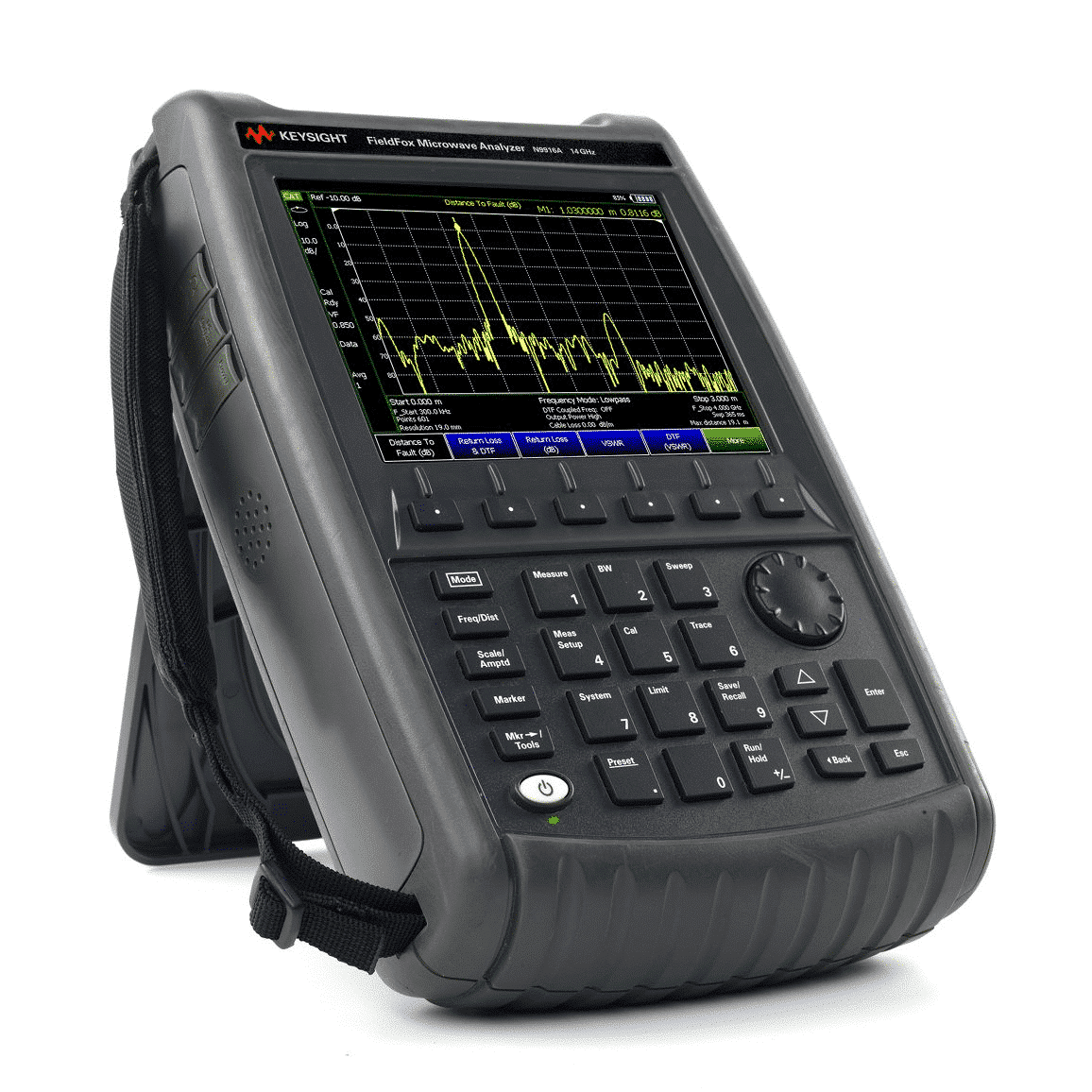

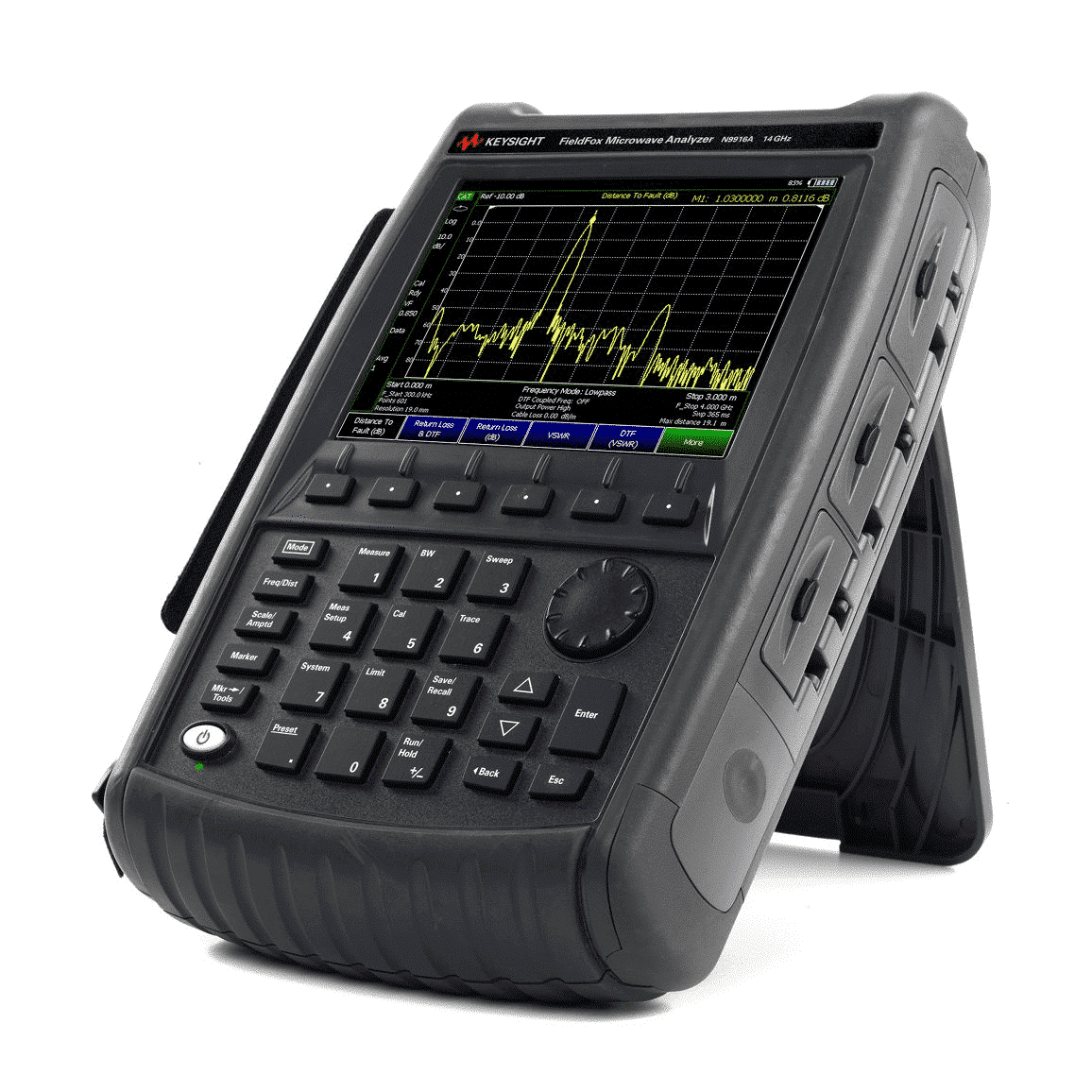

Keysight N9916A FieldFox Handheld Microwave Analyzer – 14 GHz

Overview

The Keysight N9916A FieldFox Microwave Analyzer is a versatile handheld microwave analyzer designed for field and lab applications. With a frequency range up to 14 GHz, it combines multiple test capabilities into a lightweight and portable form factor, making it the ideal solution for routine maintenance, troubleshooting, and advanced RF analysis.

Applications & Product Line

• Cable and antenna testing in wireless and satellite communications

• Spectrum analysis for RF interference detection and monitoring

• Verification of radar, microwave, and 5G systems

• Field deployment in telecom, aerospace, and defense

• Expandable platform with optional VNA, power meter, and vector voltmeter

Technical Specifications

• Frequency Range: Up to 14 GHz

• Standard Features: Cable and antenna analyzer

• Optional Features: VNA, spectrum analyzer, built-in power meter, vector voltmeter

• Measurement Functions:

  • Distance-to-Fault (DTF) and Time-Domain Reflectometry (TDR) in one sweep

  • Simultaneous 4-port S-parameter measurement

  • Spectrum analyzer accuracy: ±0.5 dB without warm-up

• Calibration: QuickCal for simplified field calibration

Integrated Features

• Multifunctional, all-in-one analyzer

• Lightweight at only 3.0 kg (6.6 lb), the lightest in its class

• Expandable measurement capability with software options

• GPS/GNSS support for geolocation and time stamping (optional)

Hardware & Interfaces

• Included Accessories:

  • AC/DC adapter

  • Localized power cord

  • Rechargeable Li-ion battery

  • Soft carrying case with backpack and shoulder strap

  • Quick Reference Guide

Physical & Power Specs

• Weight: 3.0 kg (6.6 lb)

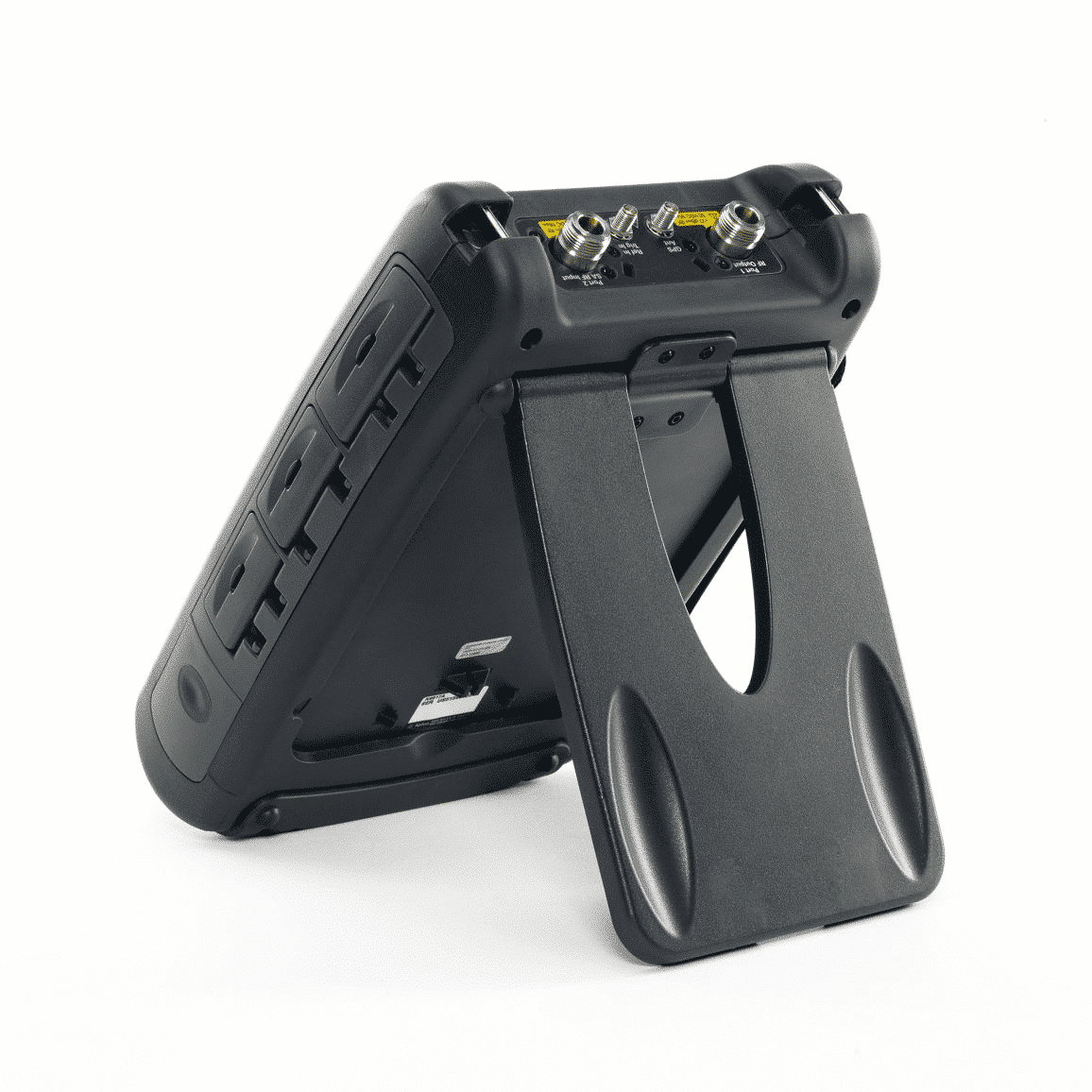

• Form Factor: Rugged handheld design for field use

• Power: Rechargeable Li-ion battery and AC/DC adapter
