Keysight MSOX3012T Mixed Signal Oscilloscope

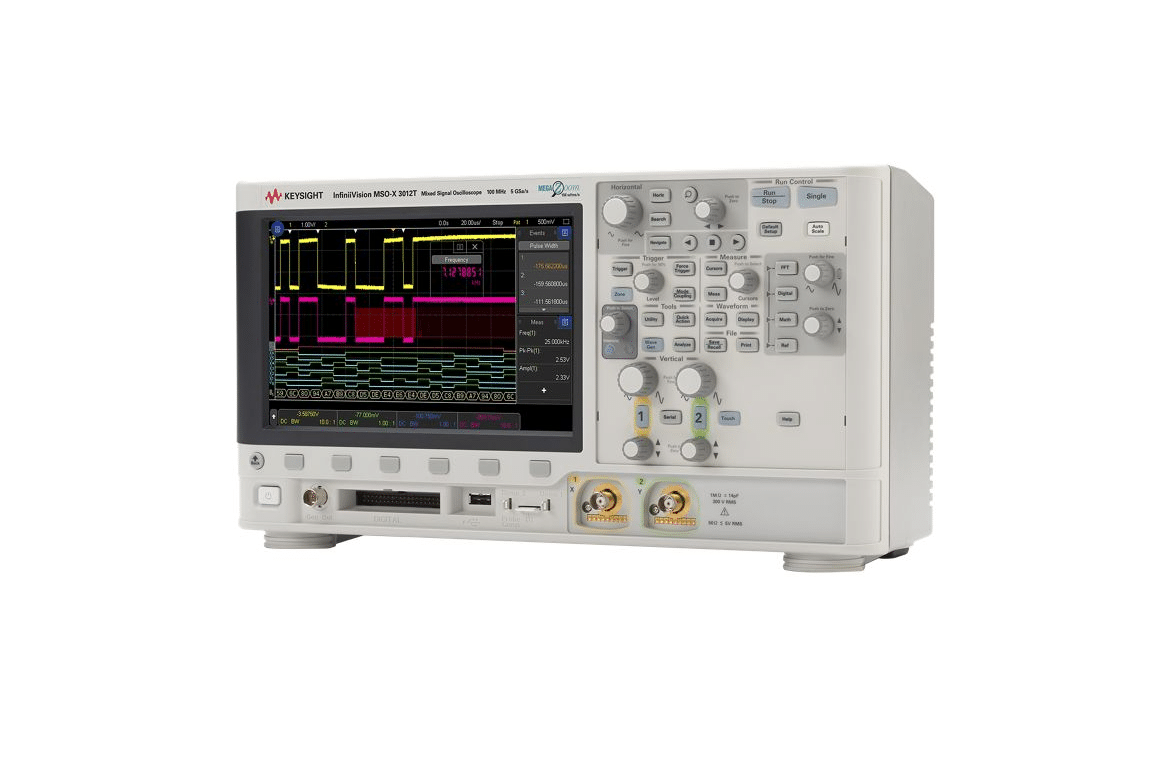

Keysight MSOX3012T Mixed Signal Oscilloscope – 100 MHz, 2 Analog + 16 Digital Channels

The Keysight MSOX3012T Mixed Signal Oscilloscope delivers exceptional performance and flexibility for modern debugging and analysis tasks. With 100 MHz bandwidth, 2 analog and 16 digital channels, it provides comprehensive signal visualization and correlation across mixed-signal environments. Featuring a large 8.5-inch capacitive touch display, engineers can interact intuitively with waveforms, quickly isolate anomalies using zone touch triggering, and analyze complex designs with precision.

Its update rate of up to 1,000,000 waveforms per second allows users to capture infrequent glitches and transient events effortlessly. The 4 Mpts memory depth ensures long waveform acquisition without sacrificing detail. Designed for scalability, the MSOX3012T can be upgraded at any time with additional capabilities — including higher bandwidth, a 20 MHz arbitrary waveform generator, 3-digit voltmeter, serial bus decoding, and mask testing.

Perfect for R&D, education, and production test environments, this oscilloscope comes with a 3-year factory warranty and calibration certificate (3-year interval), ensuring measurement integrity and reliability.

Included Accessories

• 1 × N2843A 500 MHz passive probe (10:1 attenuation) per channel

• 1 × N2756A 16-channel MSO cable

• Power cord, localized front panel overlay

• Multi-language user interface and documentation (EN, CN, JP, DE, FR, etc.)

• Secure erase function for data protection

Key Features

• Bandwidth: 100 MHz

• Channels: 2 analog + 16 digital

• 8.5″ capacitive touchscreen for intuitive operation

• Zone touch triggering to isolate signals instantly

• 1,000,000 wfms/s waveform update rate for detailed visualization

• 4 Mpts memory depth for extended captures

• Upgradeable platform – add bandwidth, AWG, DVM, serial analysis anytime

Applications

• Circuit debugging and design validation

• Embedded system development

• Digital-analog signal correlation and analysis

• Power electronics testing and transient capture

• Educational laboratories and engineering training
