Keysight 85033E Standard Mechanical Calibration Kit

Keysight 85033E – Standard Mechanical Calibration Kit, DC to 9 GHz, 3.5 mm

The Keysight 85033E Standard Mechanical Calibration Kit is a high-precision mechanical calibration solution designed for calibrating Keysight network analyzers across a frequency range of DC to 9 GHz. The kit provides essential calibration standards to ensure measurement accuracy, repeatability, and long-term stability in RF and microwave test environments.

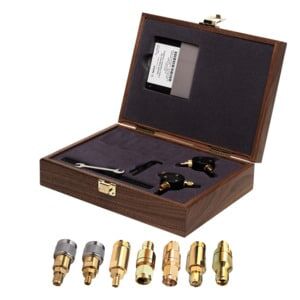

This calibration kit includes a complete set of precision 3.5 mm mechanical standards, covering:

• Fixed loads

• Open circuits

• Short circuits
  Available in both male and female versions, enabling flexible calibration for various test port configurations.

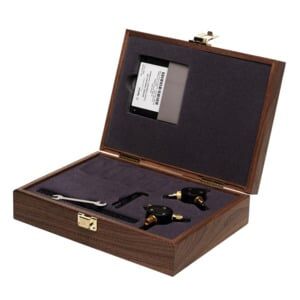

To ensure consistent and repeatable connections, the kit is supplied with a precision torque wrench, helping prevent connector damage and minimizing measurement errors caused by improper mating force.

Optional Accessories and Configurations

The Keysight 85033E offers multiple expansion options to meet diverse measurement requirements:

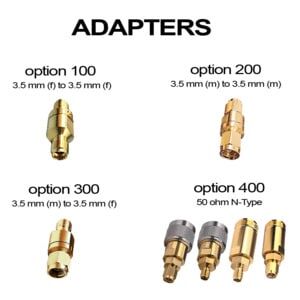

• 3.5 mm female-to-female, male-to-male, and female-to-male adapters

• Four 3.5 mm to Type-N adapters

• Four 3.5 mm to 7 mm adapters

These options extend compatibility with common RF connector types used in laboratory, production, and calibration facilities.

Typical Applications

• Network analyzer calibration in RF and microwave laboratories

• Accurate characterization of RF components and subsystems

• Quality assurance, R&D, and production testing environments requiring traceable and repeatable calibration

The Keysight 85033E is a trusted calibration standard for organizations that demand reliable mechanical calibration and measurement confidence up to 9 GHz.
